Description
THHQB22020

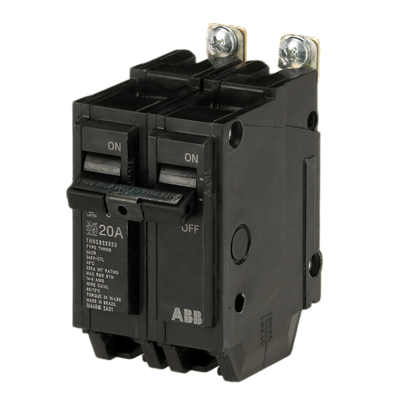

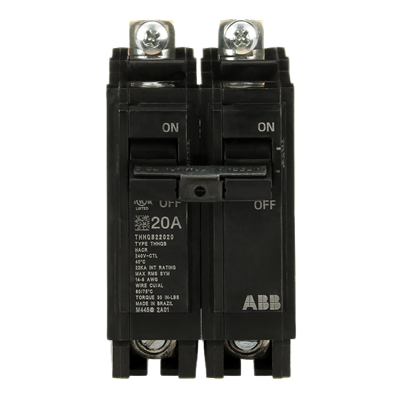

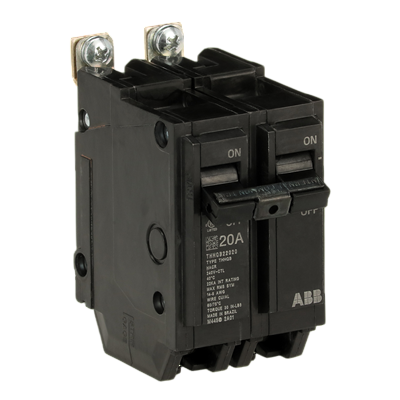

THHQB22020 is a General Electric Q-Line compact molded case circuit breaker rated for 20 amps and 240 volts AC with a 2-pole configuration.This circuit breaker features a thermal magnetic trip unit with a 22 kA interrupt rating at 120/240 VAC. It is designed for bolt-on mounting in Q-Line frames, providing reliable protection for residential and commercial electrical circuits. The breaker is non-interchangeable and compact, suitable for use in panelboards requiring a 2-pole, 20 amp breaker.
- Amperage: 20 A
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Interrupt Rating: 22 kA at 120/240 VAC
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Frame/Series: Q-Line
- Compact Molded Case Design
- Non-Interchangeable Trip
- UL Listed
Specifications
- Part Number: THHQB22020
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Load Center
- Voltage : 240
- Amperage : 20
- Phase : 1
Product Data
- UPC : 78316411843
- GTIN : 40783164118436
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 2.000 in
- Weight : 0.64
