Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THHQB2180

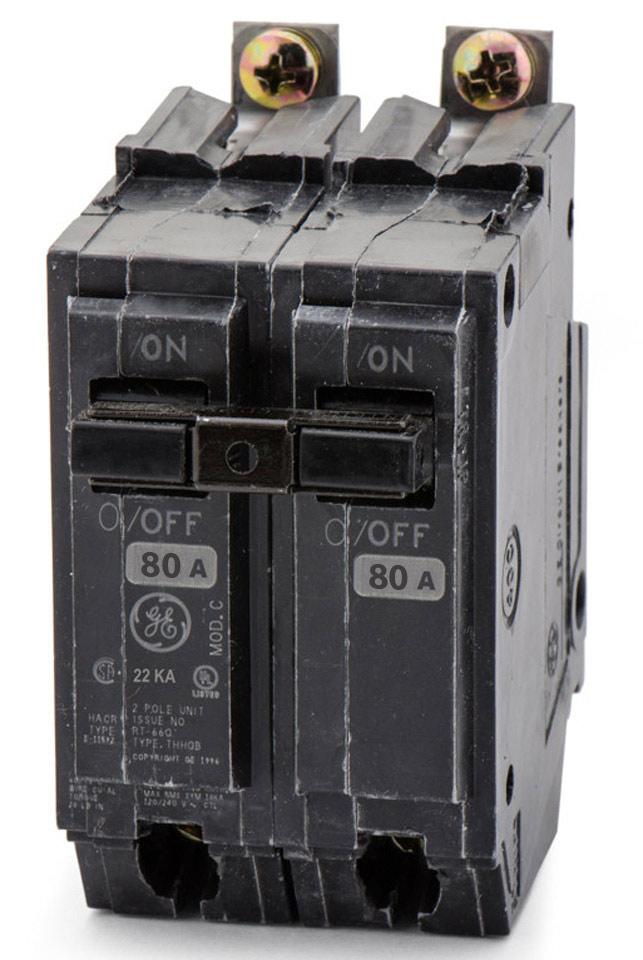

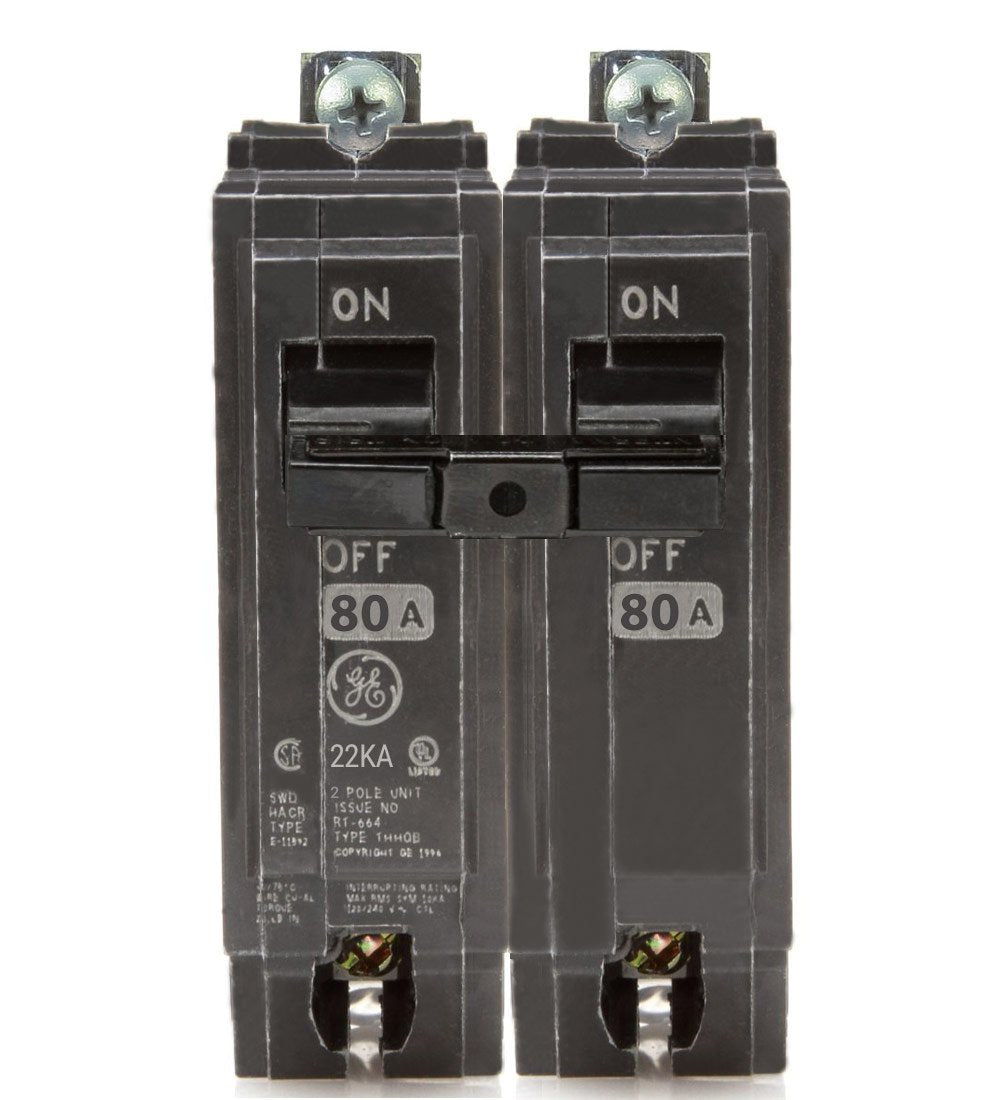

THHQB2180 is a General Electric Q-Line 2 pole, 80 amp, 240V bolt-on circuit breaker with a 22kA interrupt rating, designed for commercial panel boards and light industrial applications. This molded case circuit breaker features a fixed thermal-magnetic trip unit and is UL listed for HACR and SWD (Switching Duty) applications. Suitable for use in schools, offices, and light industry, it offers reliable protection for 120/240VAC systems. The breaker is bolt-on type, ensuring secure mounting and easy installation.
- Part Number: THHQB2180
- Manufacturer: General Electric
- Series: Q-Line
- Amperage: 80A
- Voltage: 120/240VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 22kA@240V
- Trip Unit: Fixed Thermal-Magnetic
- UL Listed: HACR, SWD
- Application: Commercial, Light Industrial
- Common Trip: Internal
Specifications
- Part Number: THHQB2180
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THHQB
- Voltage : 240
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164135015
- GTIN : 00783164135015
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 2.000 in
- Weight : 7.6
