Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THHQB2135

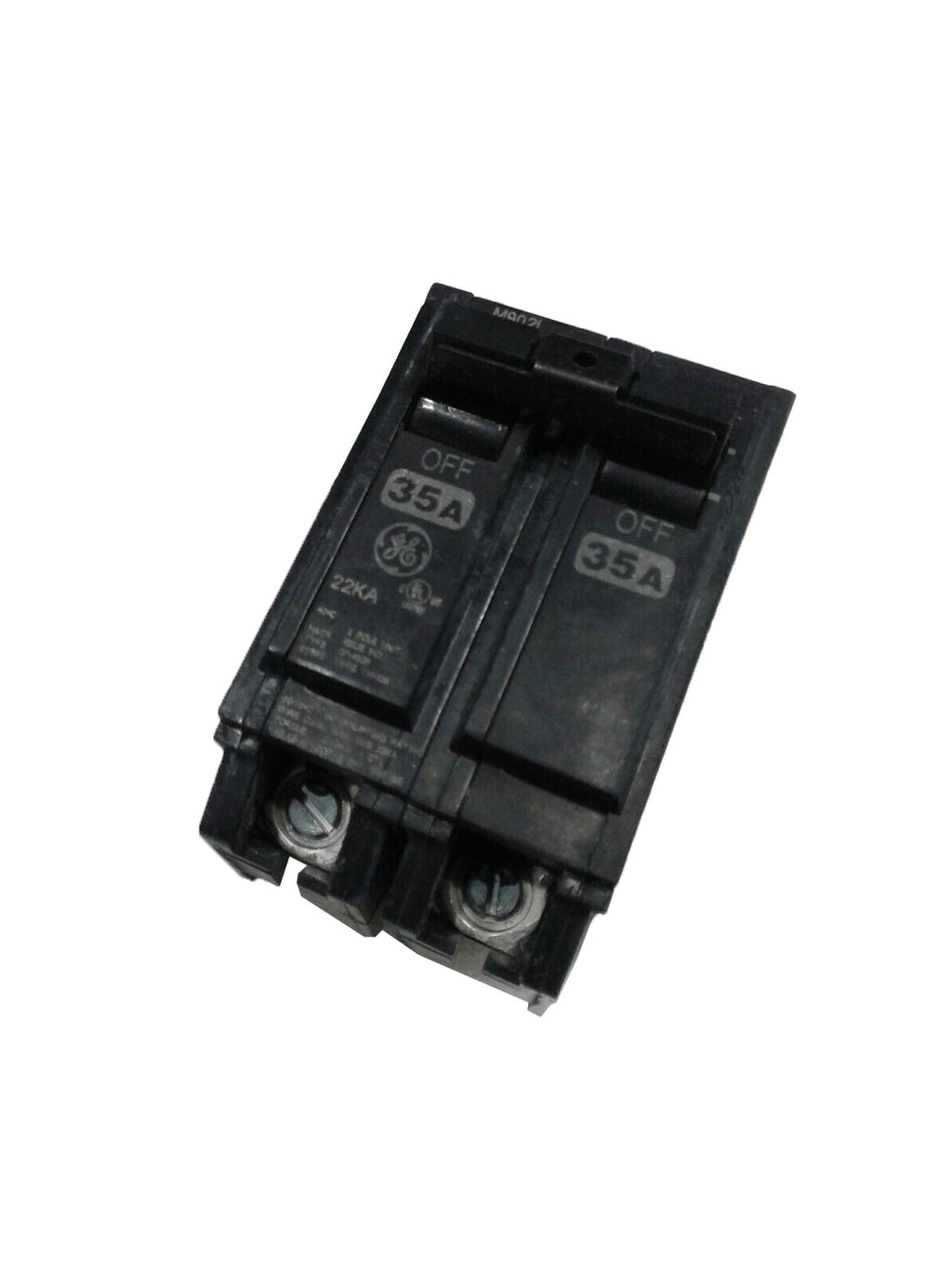

THHQB2135 is a General Electric 2 Pole 35 Amp bolt-on circuit breaker designed for reliable protection in residential and commercial applications. This molded case circuit breaker features a thermal-magnetic trip unit and is part of the Q-Line series, offering compact design and dependable performance. The THHQB2135 is rated for 240VAC, with a 22kA interrupt rating at 240V, and is UL listed for safety and compliance. Its bolt-on mounting ensures secure installation, while the thermal-magnetic trip provides both overload and short-circuit protection.
- Part Number: THHQB2135
- Manufacturer: General Electric
- Poles: 2
- Amperage: 35 Amps
- Voltage: 240VAC
- Mounting Type: Bolt-On
- Interrupt Rating: 22kA @ 240V
- Series/Frame: Q-Line, THQB
- Frame Type: THQB
- Trip Unit: Thermal-Magnetic
- Certifications: UL Listed
- Application: Residential, Commercial
Specifications
- Part Number: THHQB2135
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THHQB
- Voltage : 240
- Amperage : 35
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164118377
- GTIN : 00783164118377
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 2.000 in
- Weight : 7.6
