THHQB1150

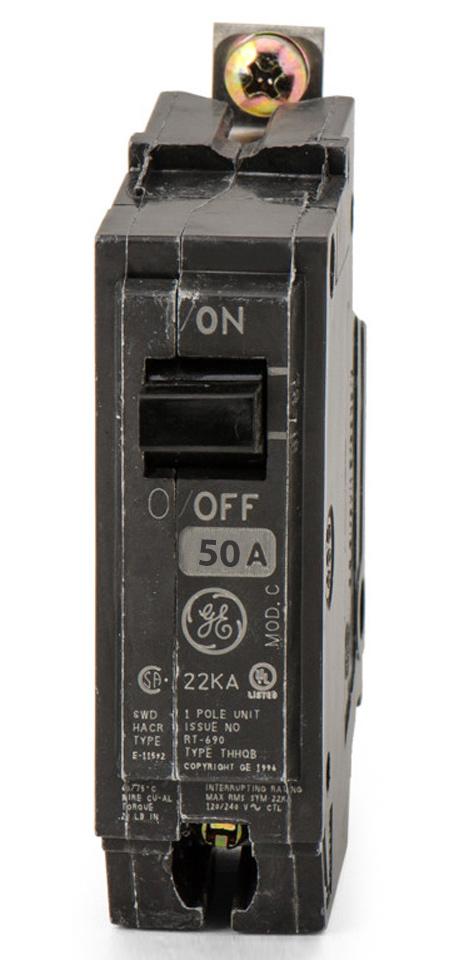

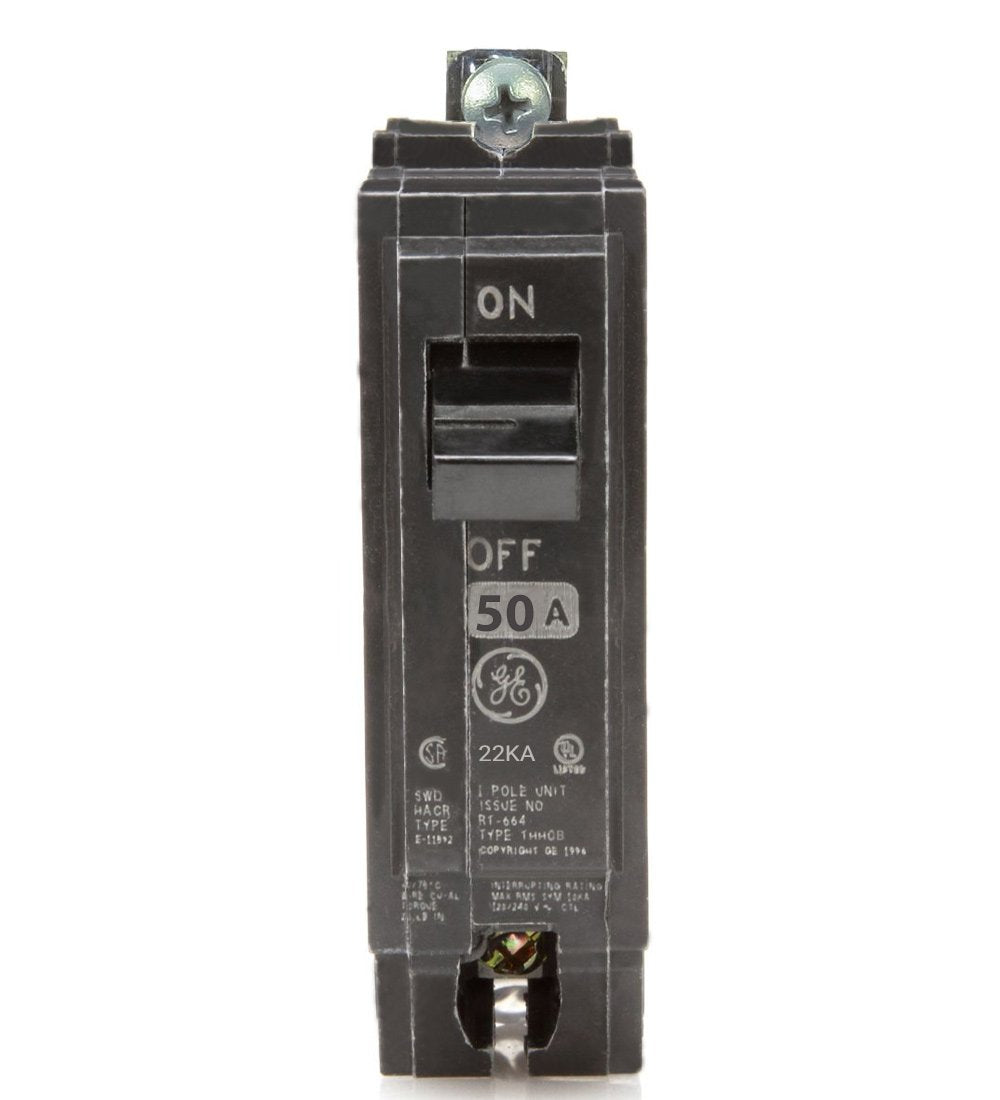

THHQB1150 is a General Electric Q-Line 1 pole, 50 amp, 120/240V bolt-on molded case circuit breaker designed for reliable residential and commercial power distribution applications. This breaker features a thermal-magnetic trip unit, 22kA interrupting rating at 120V, and is suitable for reverse feed installations. It is HACR marked for use with heating, air conditioning, and refrigeration equipment. The THHQB1150 is part of GE's compact Q-Line series, offering one-inch width per pole for space-saving panel layouts. It is a non-interchangeable trip style breaker with fixed long-time and instantaneous trip functions, and load side lug terminals for secure connections.
- Part Number: THHQB1150
- Manufacturer: General Electric
- Series/Frame: Q-Line
- Amperage: 50A
- Poles: 1
- Voltage: 120/240V
- Mounting Type: Bolt-On
- Interrupt Rating: 22kA @ 120V
- Series/Frame: Q-Line
- Frame Width: 1 inch per pole
- Trip Unit: Thermal-Magnetic, Non-Interchangeable
- Certifications: HACR
Specifications
- Part Number: THHQB1150
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THHQB
- Voltage : 120
- Amperage : 50
- Phase : 1
- Poles : 1
- AIC rating : 22kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164118308
- GTIN : 00783164118308
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 1.000 in
- Weight : 0.4
- Certification : Ul Listed
- Wire Size : 8 To 3 Awg (Copper/Aluminum)
