Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THHQB1140

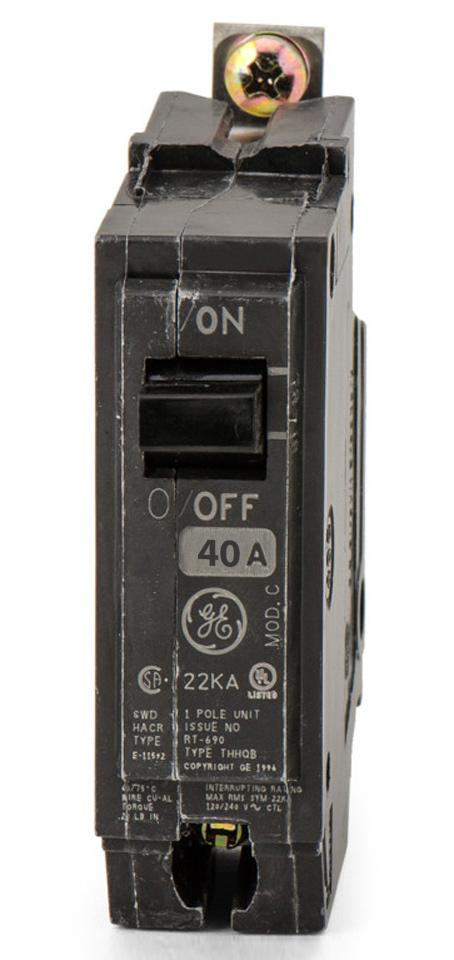

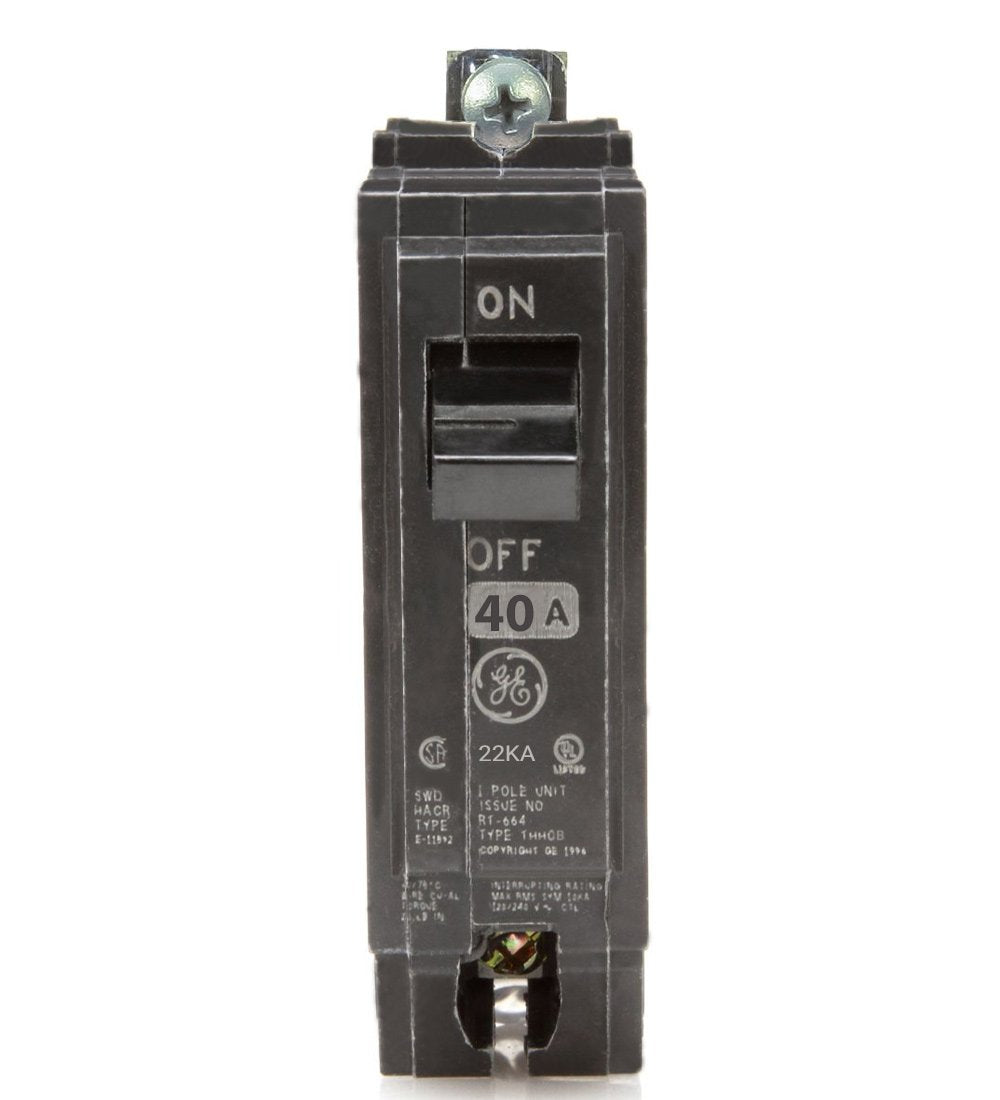

THHQB1140 is a General Electric 40 amp, 1 pole bolt-on circuit breaker designed for 120/240V applications. It provides reliable circuit protection for residential and light commercial use.This thermal magnetic molded case circuit breaker features a fixed long-time and instantaneous trip unit (LI), a 22 kA interrupt rating at 120V, and a Q-Line frame type. It is designed for bolt-on mounting and includes load side lug terminals. The breaker is HACR rated and suitable for reverse feed.
- Key Specifications
- Amperage: 40 A
- Voltage: 120/240 VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 22 kA at 120V
- Series/Frame: THHQ / Q-Line
- Trip Unit: Fixed Thermal Magnetic (LI)
- Trip Style: Non-Interchangeable
- HACR Rated: Yes
- Load Side Lug Terminal: Yes
- Suitable for Reverse Feed: Yes
- Certifications: Meets UL standards
Specifications
- Part Number: THHQB1140
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THHQB
- Voltage : 120
- Amperage : 40
- Phase : 1
- Poles : 1
- AIC rating : 22kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164118285
- GTIN : 00783164118285
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 1.000 in
- Weight : 1.22
- Certification : Ul Listed
- Wire Size : 8 To 3 Awg (Copper/Aluminum)
