Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

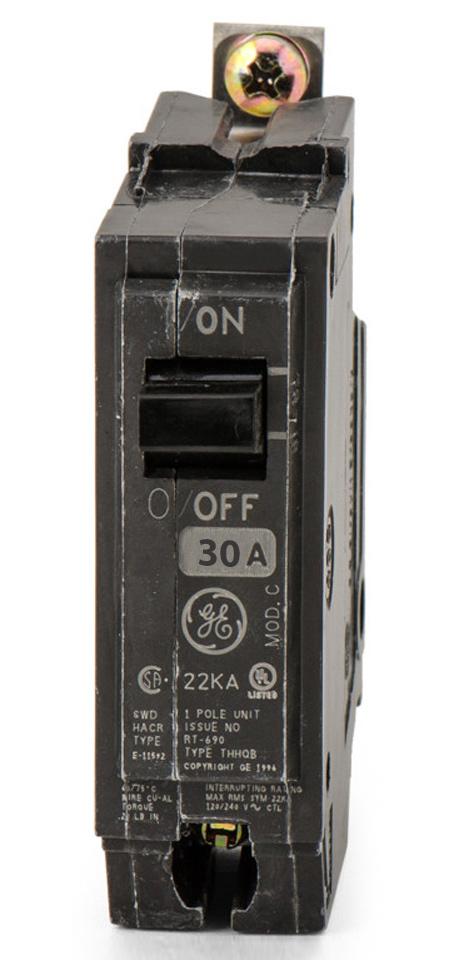

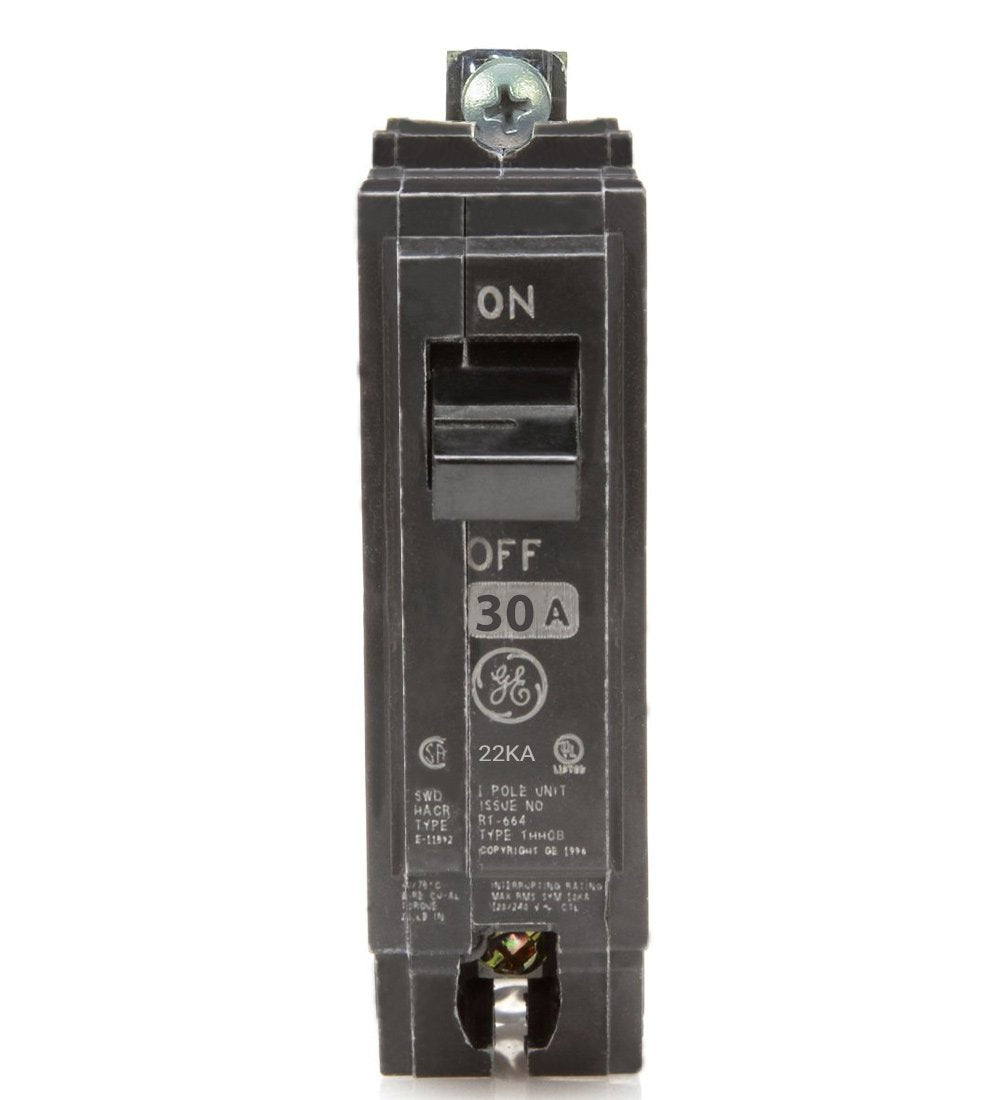

THHQB1130
THHQB1130 is a General Electric 1 pole bolt-on circuit breaker rated for 30 amps and 120/240 volts AC, designed for residential and light commercial use.This thermal magnetic circuit breaker features a compact Q-Line frame, a 22 kiloamp interrupt rating, and bolt-on mounting for secure installation. It supports wire sizes from 14 to 8 AWG copper and 12 to 8 AWG aluminum. UL listed and CSA certified, it is compatible with GE AQ series panelboards and includes a quick-make/quick-break mechanism with common trip bar for enhanced safety.
- Key Specifications
- Amperage: 30A
- Voltage Rating: 120/240 VAC
- Number of Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 22 kA
- Frame Type: Q-Line
- Trip Unit: Thermal Magnetic
- Wire Size: 14-8 AWG Copper, 12-8 AWG Aluminum
- Certifications: UL Listed, CSA Certified
- Dimensions: 1.00" W x 2.38" D x 3.28" H
Specifications
- Part Number: THHQB1130
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THHQB
- Voltage : 120
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 22kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164118261
- GTIN : 00783164118261
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 1.000 in
- Weight : 0.37
