Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THED136090WL

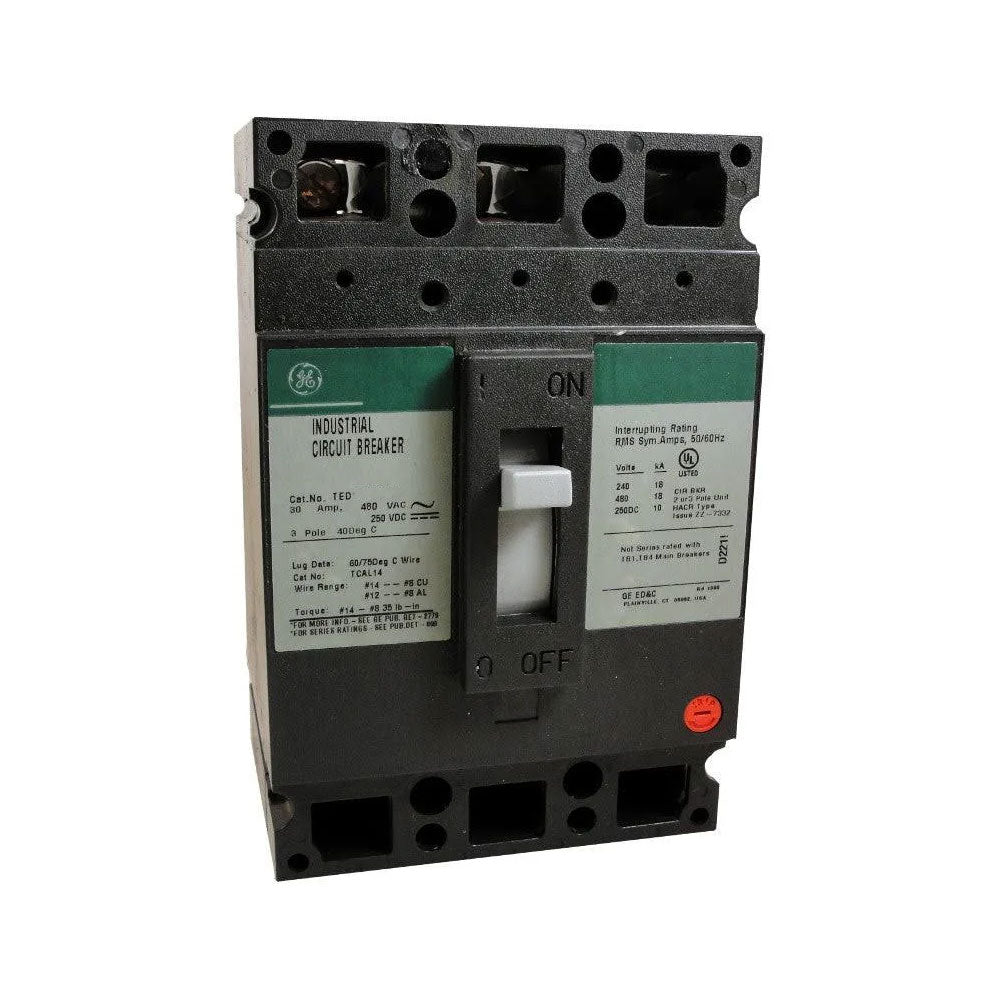

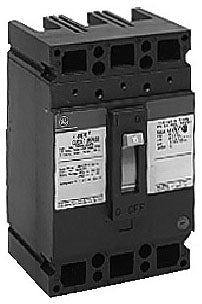

THED136090WL is a General Electric 3 pole thermal magnetic molded case circuit breaker rated for 90 amps and 600 volts AC.THED136090WL features a TED frame style with a high interrupting capacity of 25kA at 480V, thermal magnetic trip unit, and line and load side lug terminals for feed-thru wiring. It supports long time and instantaneous trip functions and is designed for 3-phase applications.
- Key Specifications
- Amperage: 90A
- Voltage: 600VAC
- Poles: 3
- Frame Type: TED
- Interrupt Rating: 25kA at 480V
- Trip Unit: Thermal Magnetic
- Mounting Type: Molded Case
- Terminals: Line and Load Side Lug
- Phase: 3 Phase
- Trip Functions: Long Time and Instantaneous
Specifications
- Part Number: THED136090WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : THED
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 078316406286
- GTIN : 00783164062861
- Weight : 3
