THED136090 - General Electric 90A 600V 3-Pole Molded Case Circuit Breaker 25kA@480V Bolt-On

Save $785.15
SKU: THED136090-New
Condition: New
Price:
$784.85 $1,570.00
Stock:
29 In stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

THED136090 - General Electric Bolt-On 600V 90A 3 pole circuit breaker 25kA@480V - Essential Electric Supply
THED136090 - General Electric 90A 600V 3-Pole Molded Case Circuit Breaker 25kA@480V Bolt-On - Essential Electric Supply

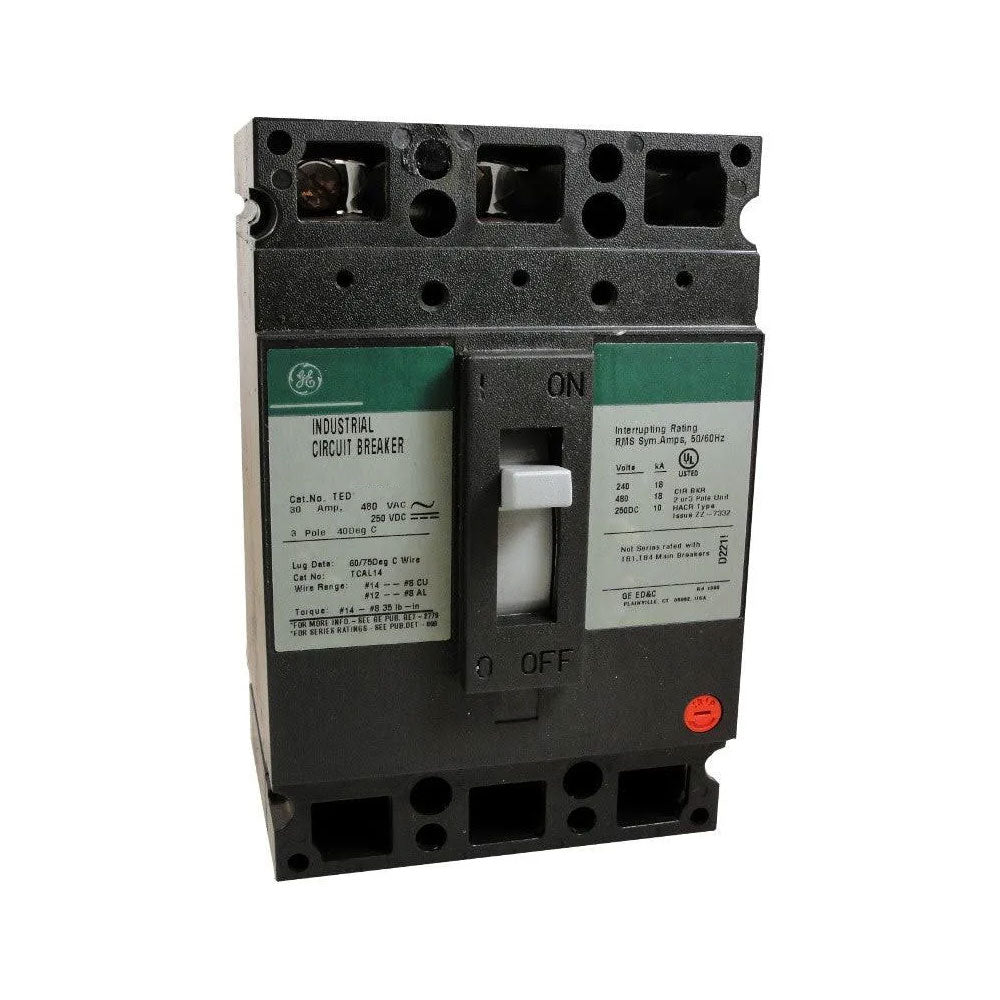

Roll over image to zoom in Click on image to zoom Images are for reference only
THED136090 - General Electric Bolt-On 600V 90A 3 pole circuit breaker 25kA@480V - Essential Electric Supply
THED136090 - General Electric 90A 600V 3-Pole Molded Case Circuit Breaker 25kA@480V Bolt-On - Essential Electric Supply

Description

THED136090


THED136090 is a General Electric 3-pole molded case circuit breaker rated for 90 amps and 600 volts with a 25kA interrupting rating at 480V.This THED series breaker features bolt-on mounting, line and load side lug terminals, and is designed for high interrupting capacity applications. It is part of the E150 frame line and includes a thermal-magnetic trip unit for reliable protection.
    Key Specifications
    • Amperage: 90A
    • Voltage Rating: 600VAC
    • Poles: 3
    • Interrupting Rating: 25kA at 480V AC
    • Mounting Type: Bolt-On
    • Series/Frame: THED / E150
    • Trip Unit: Thermal-Magnetic (LI)
    • Connection Type: Line and Load Side Lug Terminals
    • Certifications: Compliant with industry standards
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: THED136090
    • Manufacturer : General Electric
    • Brand : General Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : E150 Line
    • Type : THED
    • Voltage : 600
    • Amperage : 90
    • Phase : 3
    • Poles : 3
    • AIC rating : 25kA@480V
    • Connection : Bolt-On
    • Functions : LI - Long-Time and Instantaneous
    • Protection : Thermal Magnetic

    Product Data

    • UPC : 783164062991
    • GTIN : 00783164062991
    • Weight : 3

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
