THED136070 - General Electric 70 Amp 600V 3 Pole Thermal Magnetic Molded Case Circuit Breaker

Save $785.15
SKU: THED136070-New
Condition: New
Price:
$784.85 $1,570.00
Stock:
9 In stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

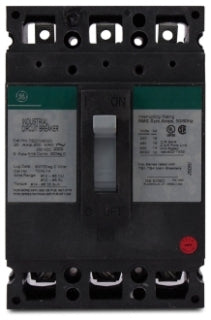

THED136070 - General Electric Bolt-On 600V 70A 3 pole circuit breaker 25kA@480V - Essential Electric Supply

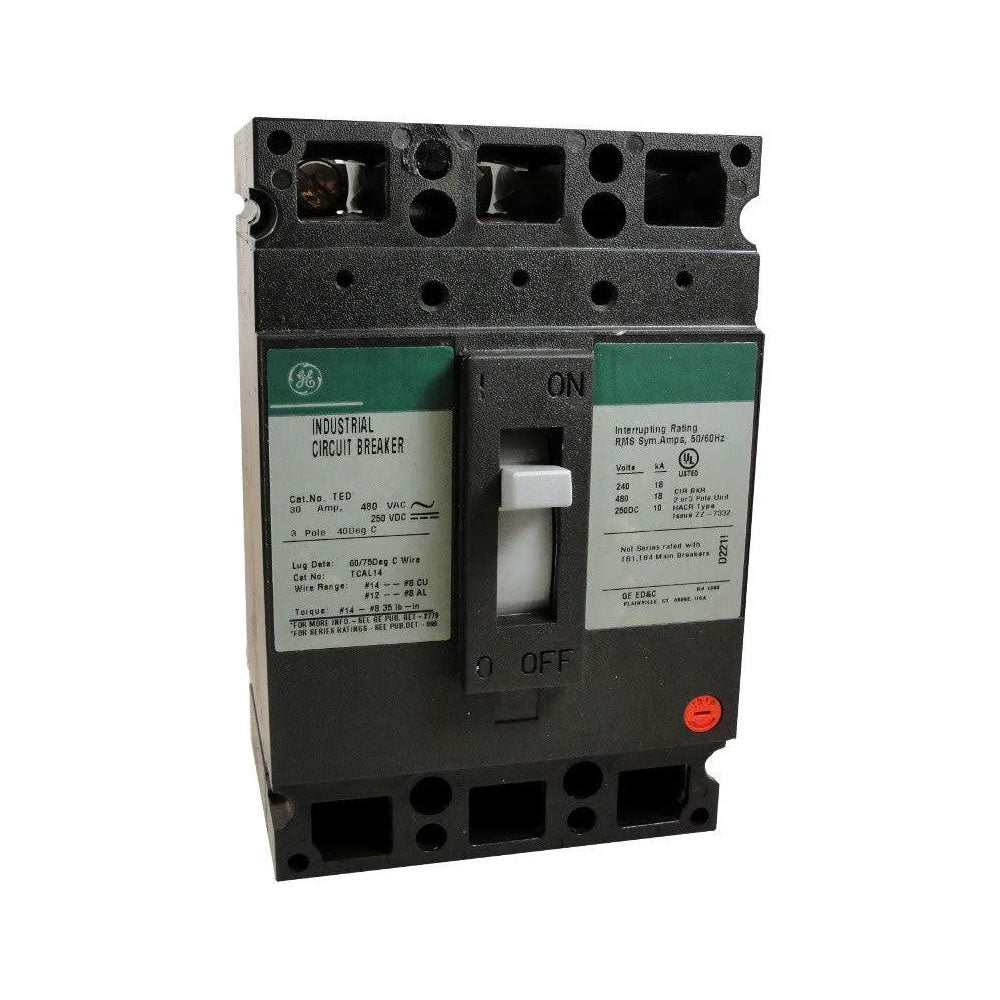

THED136070 - General Electric Bolt-On 600V 70A 3 pole circuit breaker 25kA@480V - Essential Electric Supply

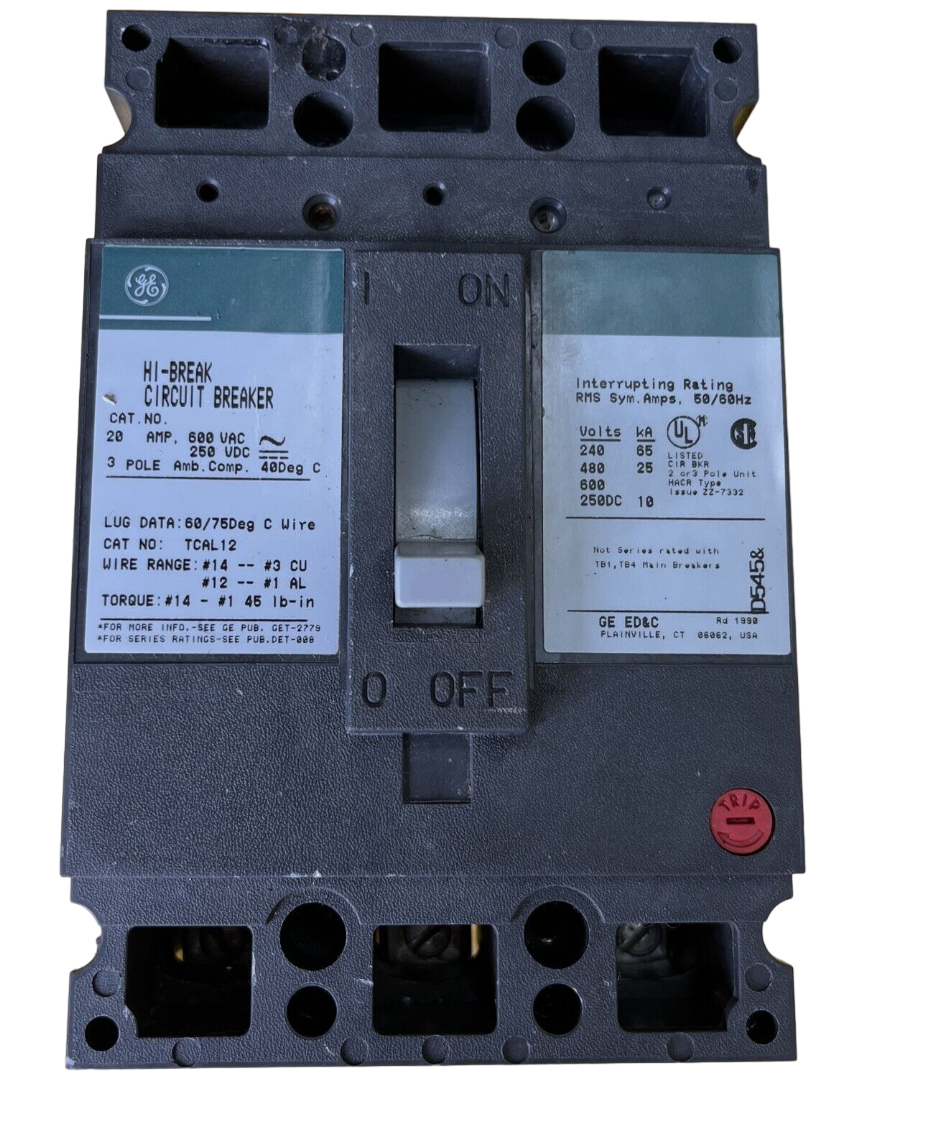

THED136070 - General Electric 70 Amp 600V 3 Pole Thermal Magnetic Molded Case Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
THED136070 - General Electric Bolt-On 600V 70A 3 pole circuit breaker 25kA@480V - Essential Electric Supply
THED136070 - General Electric Bolt-On 600V 70A 3 pole circuit breaker 25kA@480V - Essential Electric Supply
THED136070 - General Electric 70 Amp 600V 3 Pole Thermal Magnetic Molded Case Circuit Breaker - Essential Electric Supply

Description

THED136070


THED136070 is a 3 Pole, 70 Amp, 600 Volt thermal magnetic molded case circuit breaker from General Electric designed for industrial power distribution.This breaker features a 25kA interrupting rating at 480V, bolt-on mounting with feed-thru connection type, and long time and instantaneous trip functions. It is part of the THED series with a TED frame and supports 3-phase applications. UL certified, it includes load side lug terminals and supports wire gauges from 4 AWG to 3 AWG with a temperature rating of 10 to 50 degrees Celsius.
    Key Specifications
    • Manufacturer: General Electric
    • Part Number: THED136070
    • Amperage: 70 Amps
    • Voltage: 600VAC, 250VDC
    • Poles: 3
    • Interrupting Rating: 25kAIC at 480V
    • Series/Frame: THED / TED Frame
    • Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
    • Mounting Type: Bolt-On
    • Connection Type: Feed-Thru
    • Terminal Connection: Load Side Lug
    • Certifications: UL Listed
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: THED136070
    • Manufacturer : General Electric
    • Brand : General Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : E150 Line
    • Type : THED
    • Voltage : 600
    • Amperage : 70
    • Phase : 3
    • Poles : 3
    • AIC rating : 25kA@480V
    • Connection : Bolt-On
    • Functions : Long Time and Instantaneous Trip
    • Temp Rating : -13–158 °F (-25–70 °C)
    • Protection : Thermal Magnetic

    Product Data

    • UPC : 783164062977
    • GTIN : 00783164062977
    • Weight : 3
    • Wire Size : 4 AWG to 3 AWG

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
