Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THED136040WL

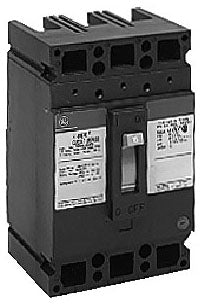

THED136040WL is a General Electric 40A 3 pole molded case circuit breaker designed for reliable protection in industrial and commercial applications. This breaker features a THED frame, thermal magnetic trip unit, and high interrupting capacity for demanding environments.Engineered for versatility, the THED136040WL supports 240/480/600 VAC and 500 VDC, with line and load side lug terminals for easy installation. It is ideal for feed-thru and 3-phase systems, offering long time and instantaneous trip functions for enhanced safety and performance.
- Part Number: THED136040WL
- Manufacturer: General Electric
- Amperage: 40A
- Poles: 3
- Voltage: 240/480/600 VAC, 500 VDC
- Interrupting Rating: 65kAIC @ 240V, 25kAIC @ 480V, 18kAIC @ 600V
- Frame Type: THED
- Mounting Type: Feed-Thru
- Trip Unit: Thermal Magnetic
- Series: THED
- Terminal Type: Aluminum/Copper Lug
- Application: Industrial/Commercial
Specifications
- Part Number: THED136040WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : THED
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164062809
- GTIN : 00783164062809
- Weight : 3
- Certification : UL
