THED136030WL - General Electric 30A 3 Pole 600V Molded Case Circuit Breaker, E150 Frame, 25kAIC @ 480V, Thermal Magnetic, HACR

Save $794.40
SKU: THED136030WL-New
Condition: New
Price:
$535.60 $1,330.00
Stock:
100+ in stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

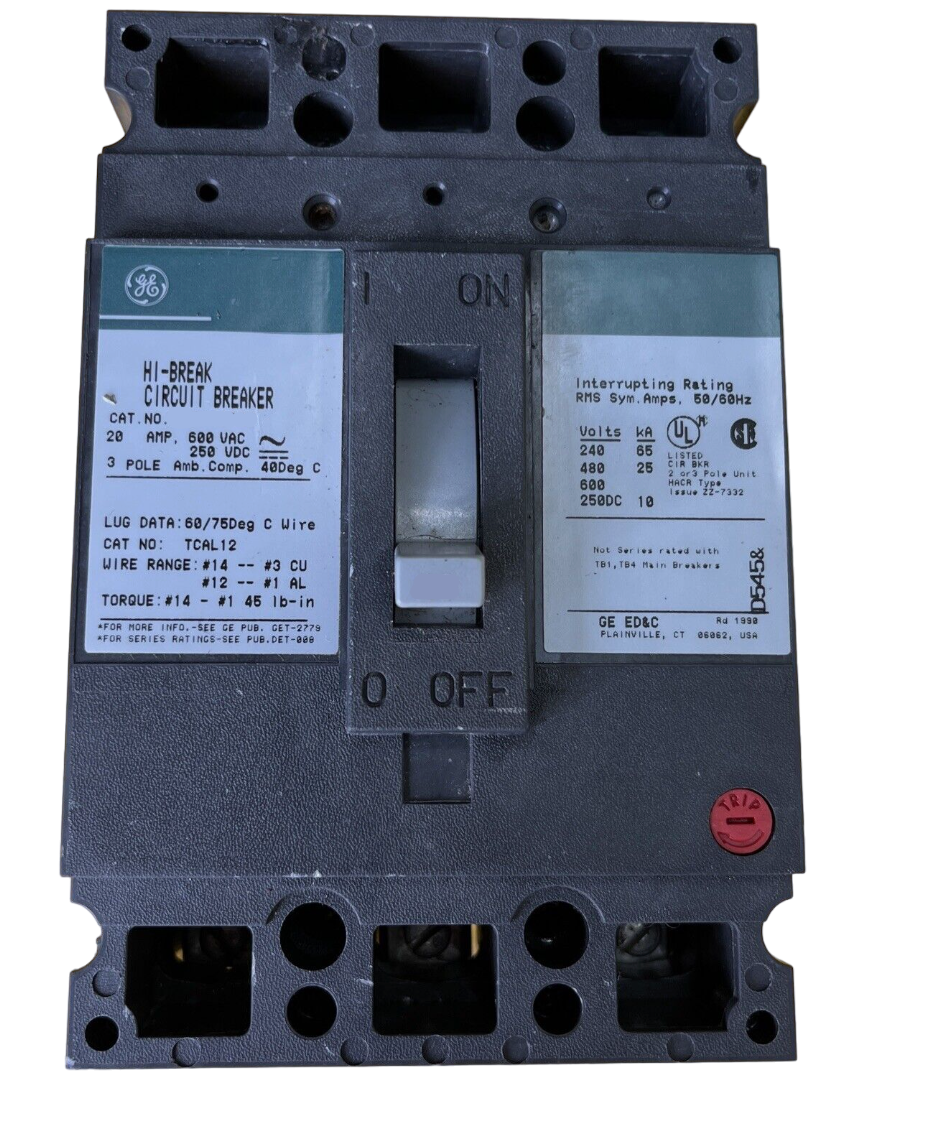

THED136030WL - General Electric Plug In Panelboard 600V 30A 3 pole circuit breaker 25kA@480V - Essential Electric Supply

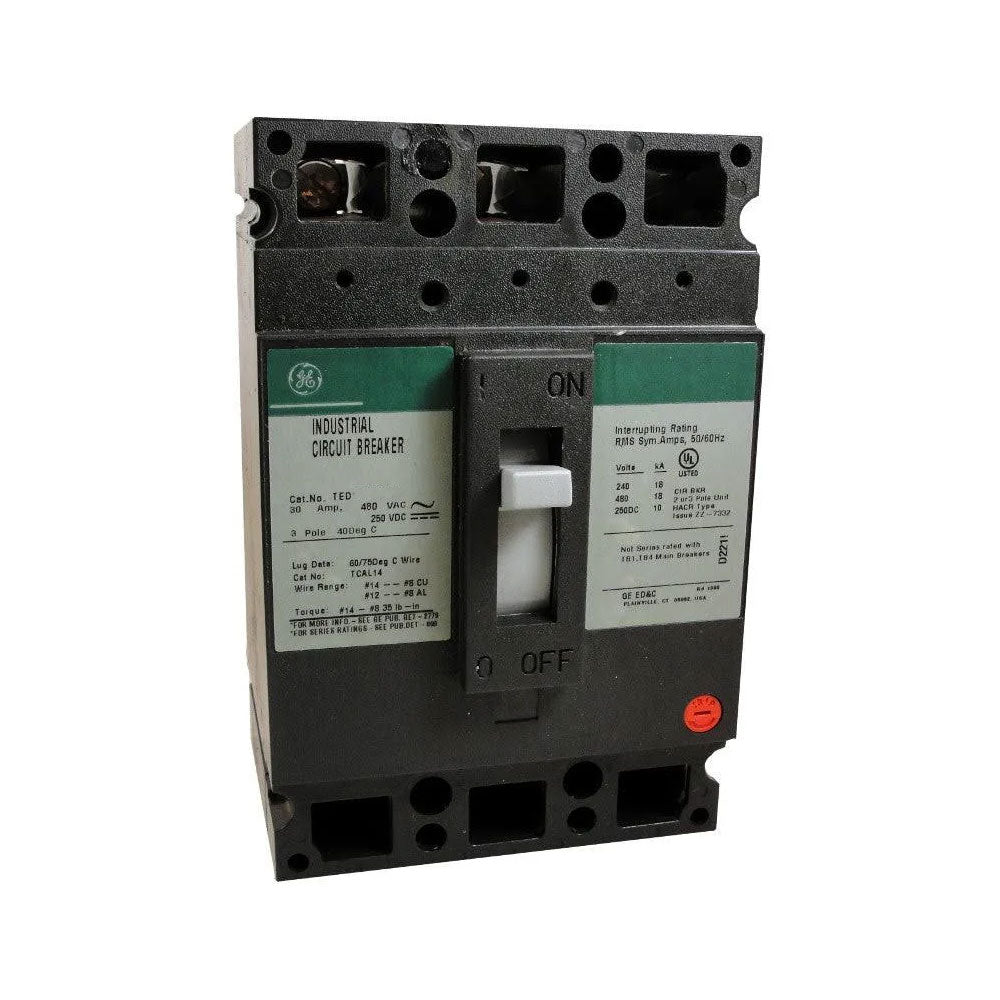

THED136030WL - General Electric Plug In Panelboard 600V 30A 3 pole circuit breaker 25kA@480V - Essential Electric Supply

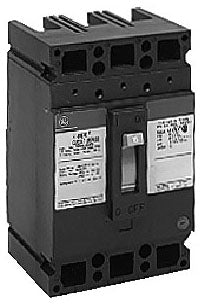

THED136030WL - General Electric 30A 3 Pole 600V Molded Case Circuit Breaker, E150 Frame, 25kAIC @ 480V, Thermal Magnetic, HACR - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
THED136030WL - General Electric Plug In Panelboard 600V 30A 3 pole circuit breaker 25kA@480V - Essential Electric Supply
THED136030WL - General Electric Plug In Panelboard 600V 30A 3 pole circuit breaker 25kA@480V - Essential Electric Supply
THED136030WL - General Electric 30A 3 Pole 600V Molded Case Circuit Breaker, E150 Frame, 25kAIC @ 480V, Thermal Magnetic, HACR - Essential Electric Supply

Description

THED136030WL


THED136030WL is a General Electric 30A 3 pole molded case circuit breaker designed for high interrupting capacity applications with a 600V AC rating and E150 frame. This thermal magnetic circuit breaker features fixed long time and instantaneous trip functions, line and load side lug terminals, and is suitable for reverse feed. It is rated for 25kAIC at 480V and is HACR marked for use in heating, air conditioning, and refrigeration circuits. The breaker is UL and CSA listed for safety and reliability.
  • Part Number: THED136030WL
  • Manufacturer: General Electric
  • Amperage: 30A
  • Poles: 3
  • Voltage: 600V AC
  • Frame Type: E150
  • Interrupting Rating: 25kAIC @ 480V
  • Mounting Type: Feed-Thru
  • Series: THED
  • Trip Unit: Thermal Magnetic, Fixed Long Time & Instantaneous
  • Certifications: UL Listed, CSA Listed, HACR
  • Special Features: Suitable for Reverse Feed, Line & Load Side Lug Terminals
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: THED136030WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : THED
  • Voltage : 600
  • Amperage : 30
  • Phase : 3
  • Poles : 3
  • AIC rating : 25kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/THED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164062786
  • GTIN : 00783164062786
  • Country of Origin : United States
  • Dimensions : 4-1/8 in x 6-5/16 in
  • Weight : 3
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
