THED136020WL - General Electric 20 Amp 600 Volt 3 Pole Thermal Magnetic Molded Case Circuit Breaker E150 Frame

Save $348.95
SKU: THED136020WL-New
Condition: New
Price:
$981.05 $1,330.00
Stock:
4 in stock
Limited availability — we'll confirm stock immediately after your order.

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

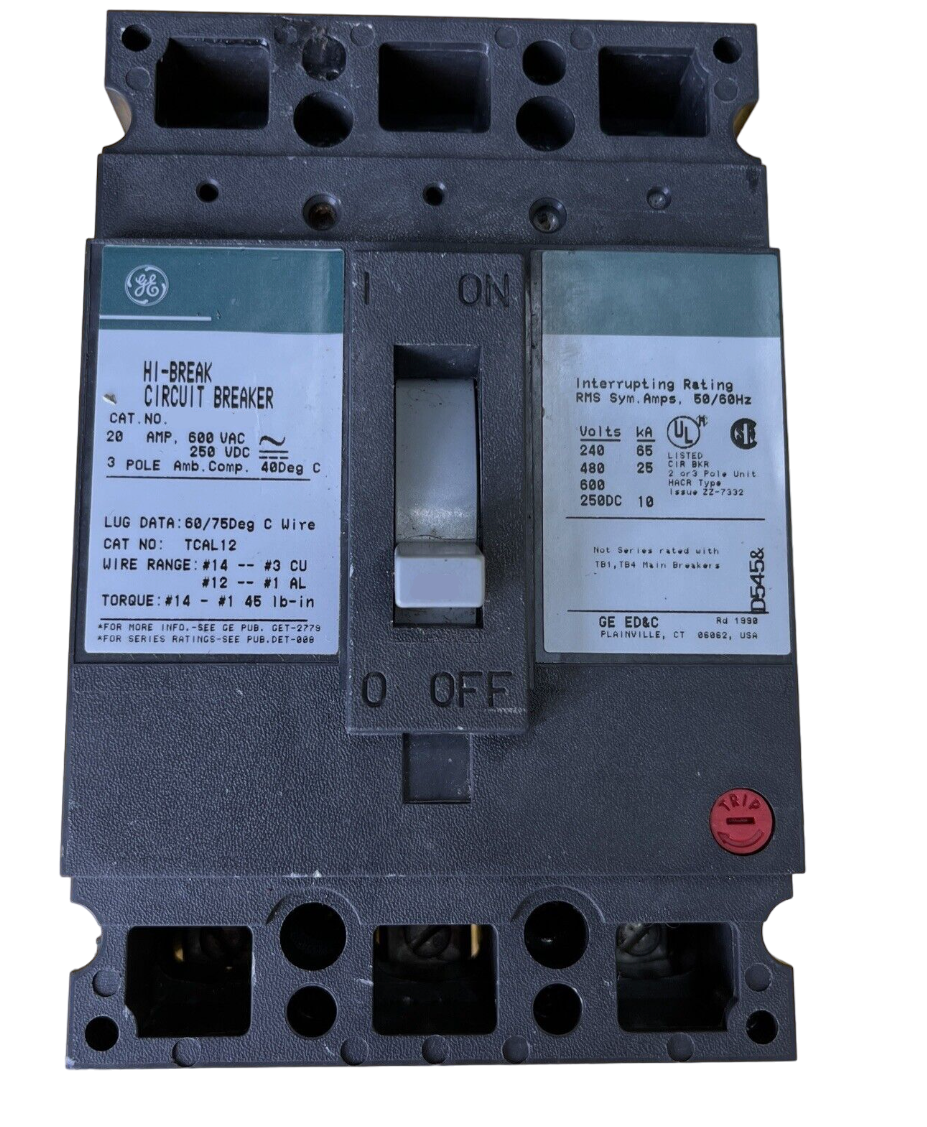

General Electric THED136020WL Circuit Breaker | E150 Line THED 600V 20A - Essential Electric Supply

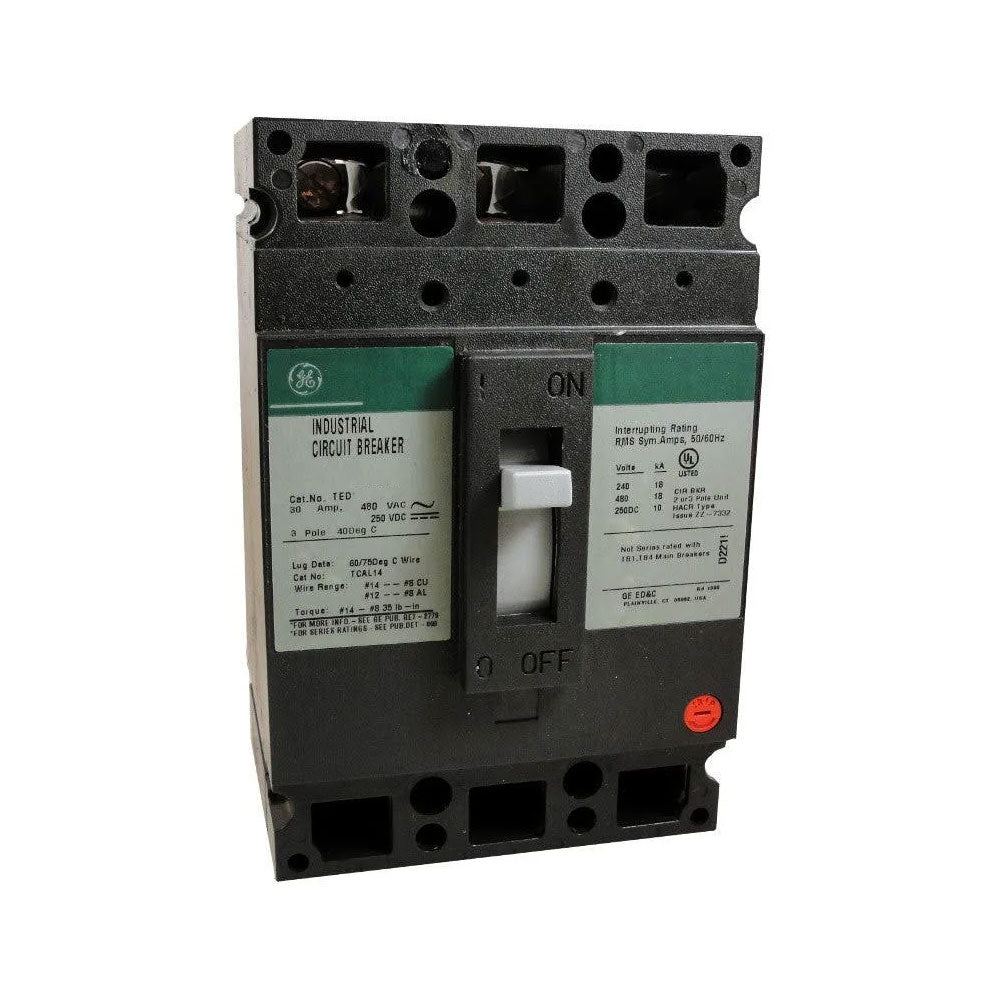

THED136020WL - General Electric Plug In Panelboard 600V 20A 3 pole circuit breaker 25kA@480V - Essential Electric Supply

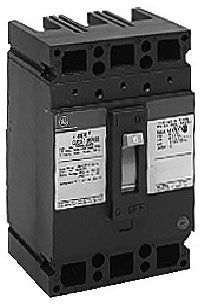

THED136020WL - General Electric 20 Amp 600 Volt 3 Pole Thermal Magnetic Molded Case Circuit Breaker E150 Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
General Electric THED136020WL Circuit Breaker | E150 Line THED 600V 20A - Essential Electric Supply
THED136020WL - General Electric Plug In Panelboard 600V 20A 3 pole circuit breaker 25kA@480V - Essential Electric Supply
THED136020WL - General Electric 20 Amp 600 Volt 3 Pole Thermal Magnetic Molded Case Circuit Breaker E150 Frame - Essential Electric Supply

Description

THED136020WL


THED136020WL is a General Electric 20 Amp, 600 Volt, 3 Pole thermal magnetic molded case circuit breaker designed for reliable electrical distribution and control.This circuit breaker features a 3-pole configuration with a 20 Amp trip rating and a 150 Amp frame (E150 series). It provides a 25kA interrupt rating at 480V and is suitable for feed-thru applications. The thermal magnetic trip unit offers dependable protection against overloads and short circuits. It is HACR rated and built to meet industry standards for safety and performance.
    Key Specifications
    • Amperage: 20 Amp trip, 150 Amp frame
    • Voltage Rating: 600 VAC
    • Poles: 3 Pole
    • Interrupt Rating: 25kA at 480V
    • Frame Type: E150 (THED series)
    • Trip Unit: Thermal Magnetic
    • Mounting Type: Molded Case
    • Application: Electrical Distribution and Control
    • Rating: HACR Compliant
    • Feed-Thru Capable
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: THED136020WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : THED
  • Voltage : 600
  • Amperage : 20
  • Phase : 3
  • Poles : 3
  • AIC rating : 25kA@480V
  • Connection : Plug In Panelboard
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/THED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164062762
  • GTIN : 00783164062762
  • Country of Origin : United States
  • Dimensions : 4-1/8 in x 6-5/16 in
  • Weight : 3 lb
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
