Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THED124090

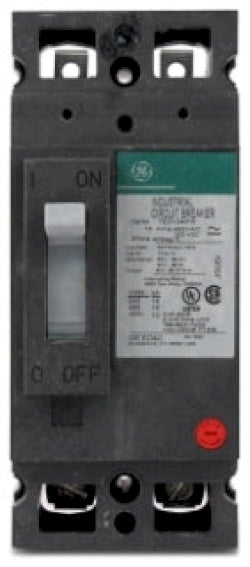

THED124090 is a General Electric 2 pole thermal magnetic molded case circuit breaker rated for 90 amps and 480 volts AC with bolt-on mounting.This General Electric THED124090 circuit breaker features a 25kA interrupting rating at 480V, long-time and instantaneous trip functions, and load side lug terminals. It is part of the E150 line family and designed for 1 phase applications with a temperature rating of 40°C. The breaker provides reliable protection with thermal magnetic trip units and bolt-on connection type for secure installation.
- Manufacturer: General Electric
- Part Number: THED124090
- Amperage: 90 Amps
- Voltage: 480 VAC
- Poles: 2
- Phase: 1
- Mounting Type: Bolt-On
- Interrupting Rating: 25kAIC at 480V
- Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
- Connection Type: Bolt-On
- Terminal Connection: Load Side Lug
- Temperature Rating: 40 °C
Specifications
- Part Number: THED124090
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : THED
- Voltage : 480
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164231335
- GTIN : 40783164202081
- Weight : 2
- Certification : UL Listed
