Product Info
- Manufacturer:General Electric
- Sub-Category:Disconnect
Description
TH4325J

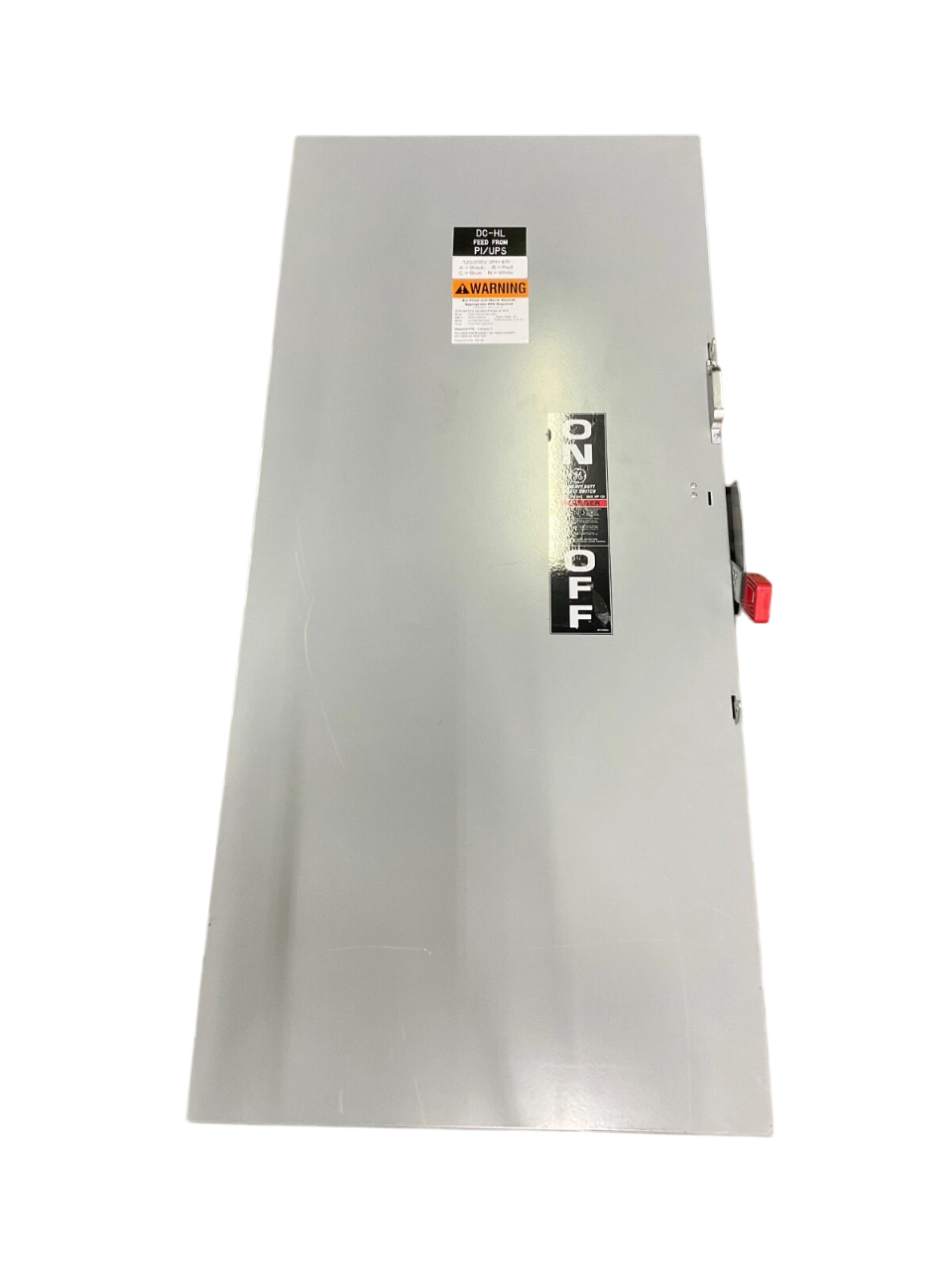

TH4325J is a General Electric 3-pole fusible safety switch designed for heavy-duty industrial applications requiring reliable circuit protection and isolation. This switch features a robust construction and is suitable for use in environments where durability and safety are critical. The TH4325J is rated for 400 amps at 240 volts AC, supporting 3-phase systems with a 4-wire configuration. It is built with a quick-make, quick-break mechanism for safe and efficient operation. The switch is UL listed and features a NEMA 12 enclosure for protection against dust, dirt, and non-corrosive liquids.
- Part Number: TH4325J
- Manufacturer: General Electric
- Amperage: 400 A
- Voltage: 240 VAC
- Poles: 3
- Mounting Type: Indoor
- Interrupt Rating: 200kA @ 240V
- Series/Frame: Spec-Setter Type TH
- Enclosure Rating: NEMA 12
- Phase: 3-Phase
- Wire Configuration: 4-Wire
- Certifications: UL Listed
Specifications
- Part Number: TH4325J
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Disconnect
- Family : Spec-Setter
- Type : TH
- Voltage : 240
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 5
- Compatible Frames : ED
Product Data
- UPC : 078316409225
- GTIN : 00783164009187
- Weight : 55
