Product Info
- Manufacturer:General Electric
- Sub-Category:Disconnect
Description
TH4324

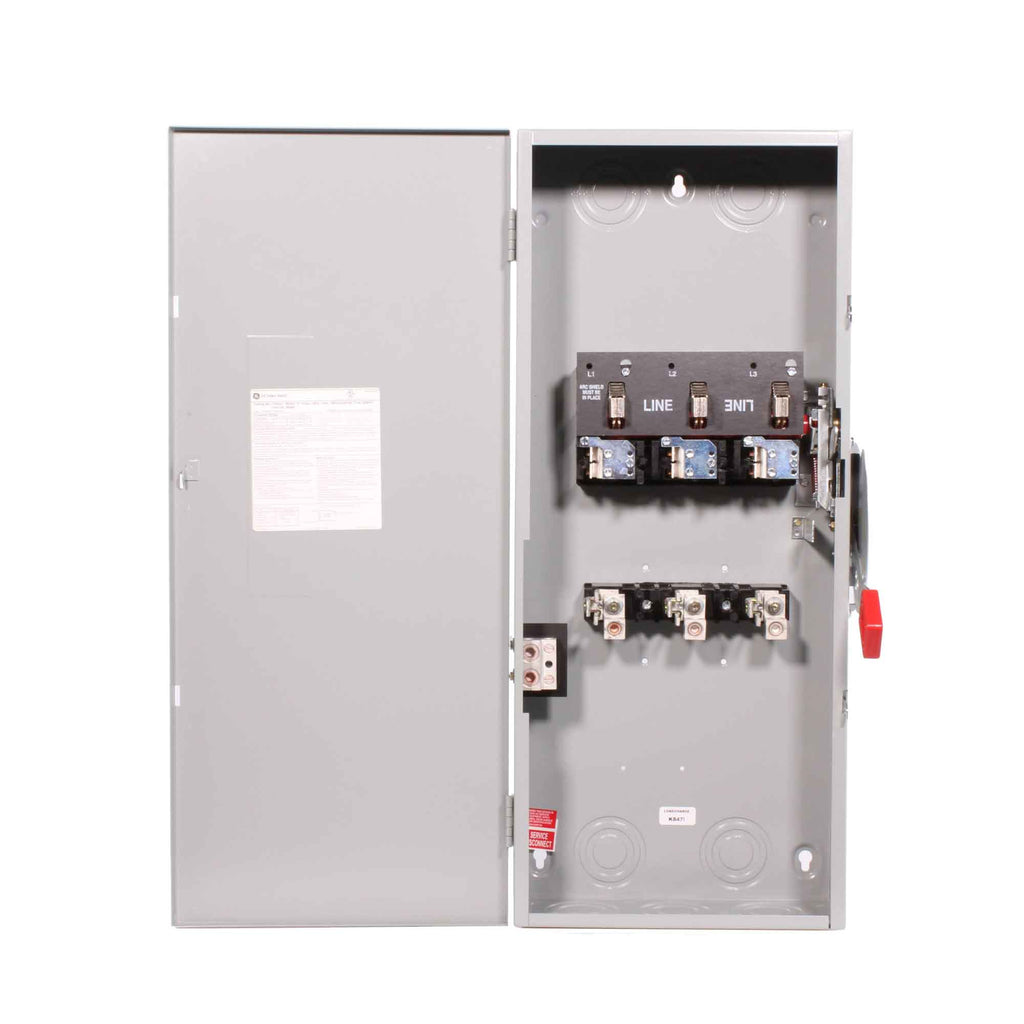

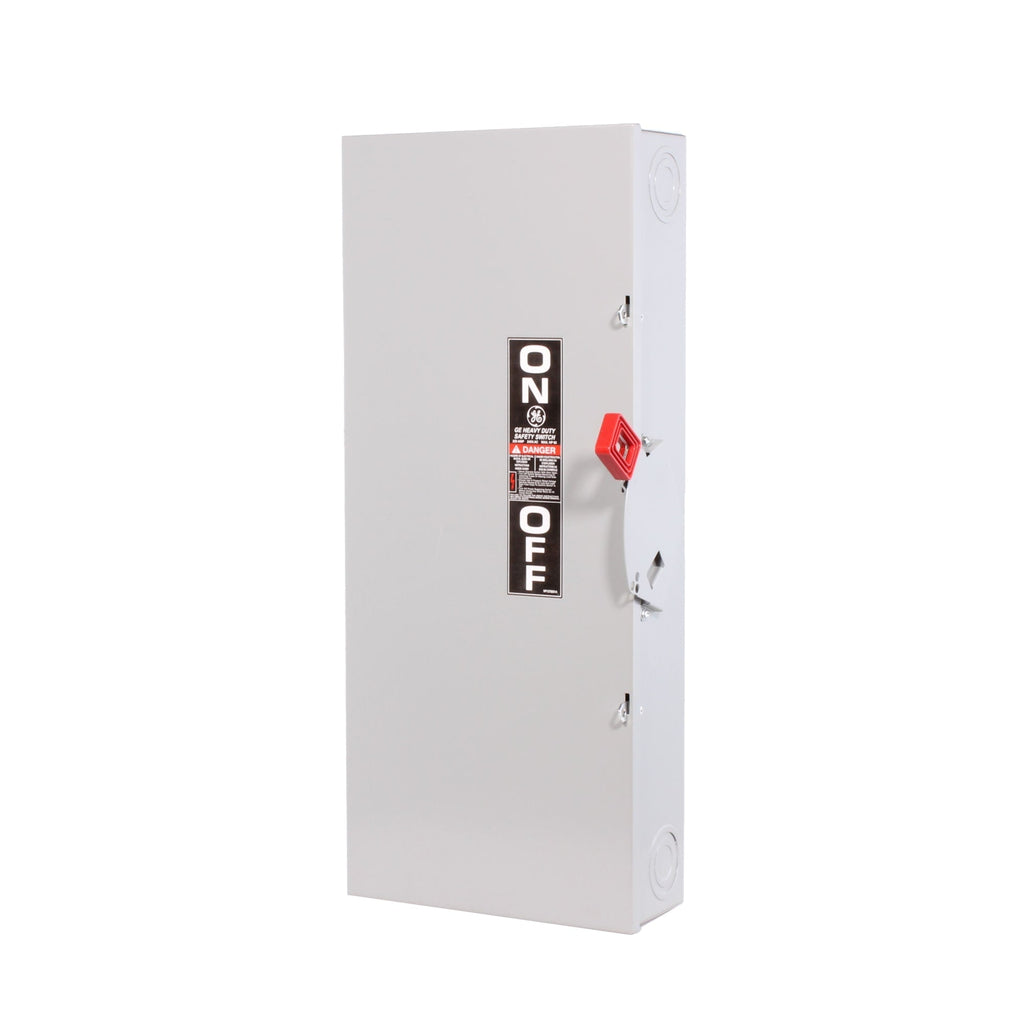

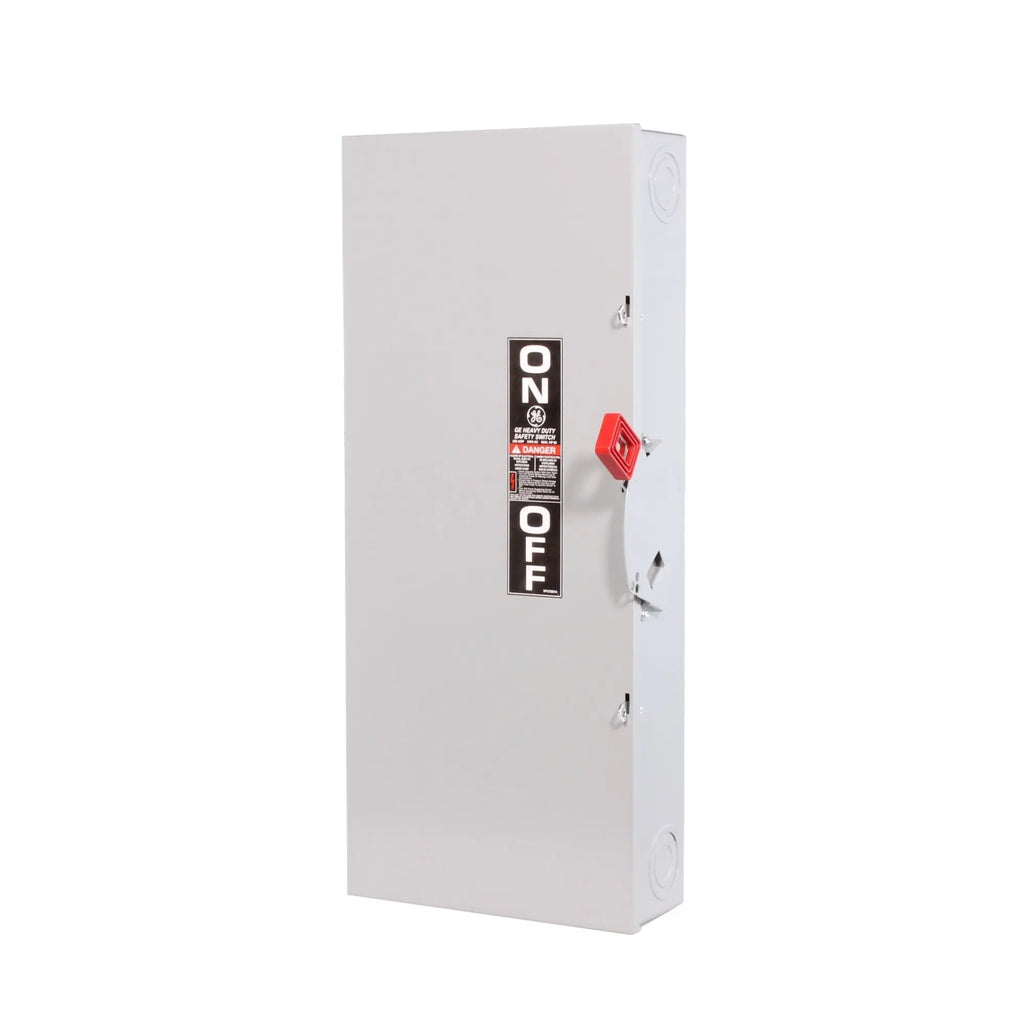

TH4324 is a General Electric 200 ampere, 240 volt, 3-pole fusible heavy duty safety switch designed for indoor use.TH4324 features a NEMA 1 enclosure suitable for indoor mounting, supports 4-wire connections, and accepts Class R fuses with a 200 kA interrupt rating. It is UL and cUL listed, part of the Spec-Setter TH series, and rated for 25 horsepower at 240 VAC three-phase applications.
- Amperage: 200 A
- Voltage: 240 VAC / 250 VDC
- Poles: 3
- Wires: 4
- Fusing: Fusible, accepts Class R fuses
- Interrupt Rating: 200 kA
- Enclosure: NEMA 1 (Indoor)
- Series/Frame: Spec-Setter TH
- Horsepower Rating: 25 HP at 240 VAC 3-phase
- Certifications: UL Listed, cUL Listed
- Mounting Type: Indoor surface mount
Specifications
- Part Number: TH4324
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Disconnect
- Family : Spec-Setter
- Type : TH
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : ED
Product Data
- UPC : 783164009286
- GTIN : 00782113226972
- Weight : 34 lb
- Certification : Ul Listed
