Product Info
- Manufacturer:General Electric
- Sub-Category:Disconnect
Description
TH3364

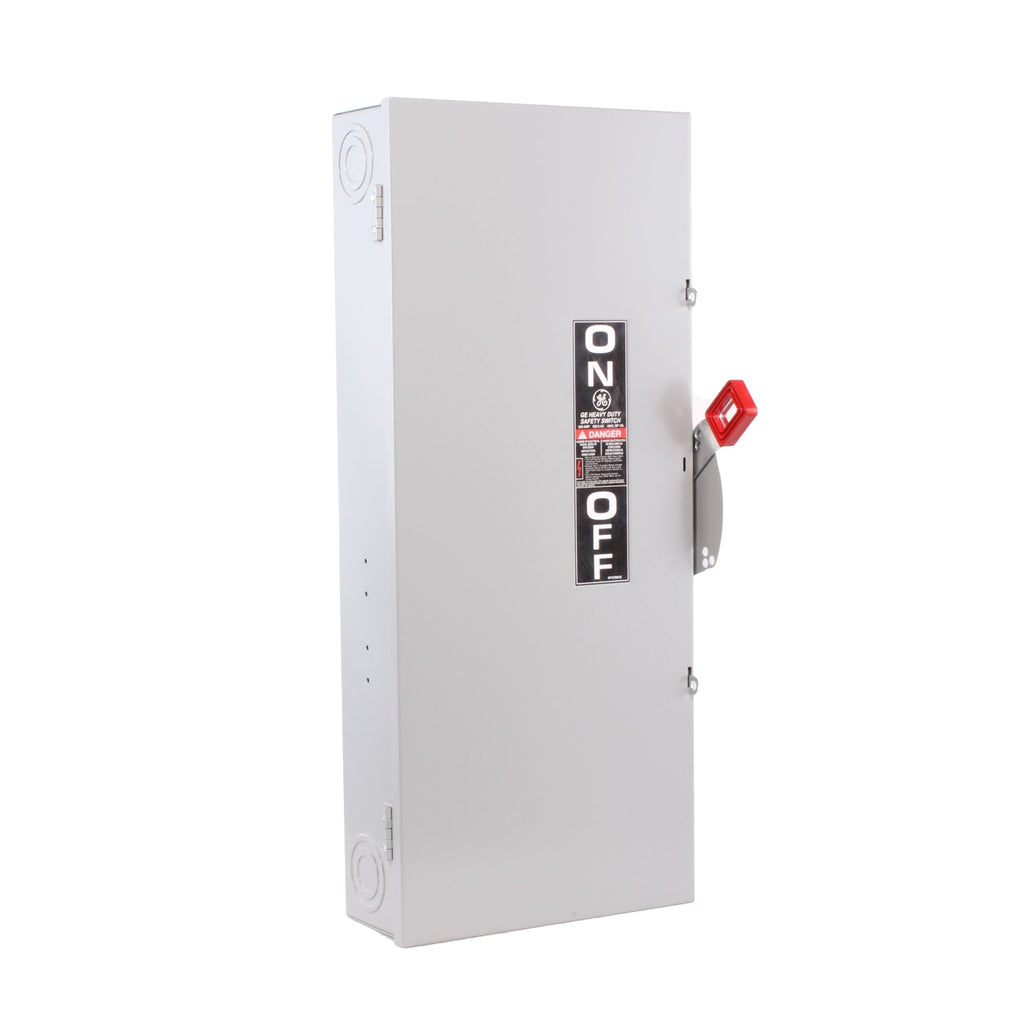

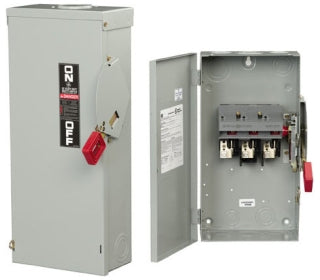

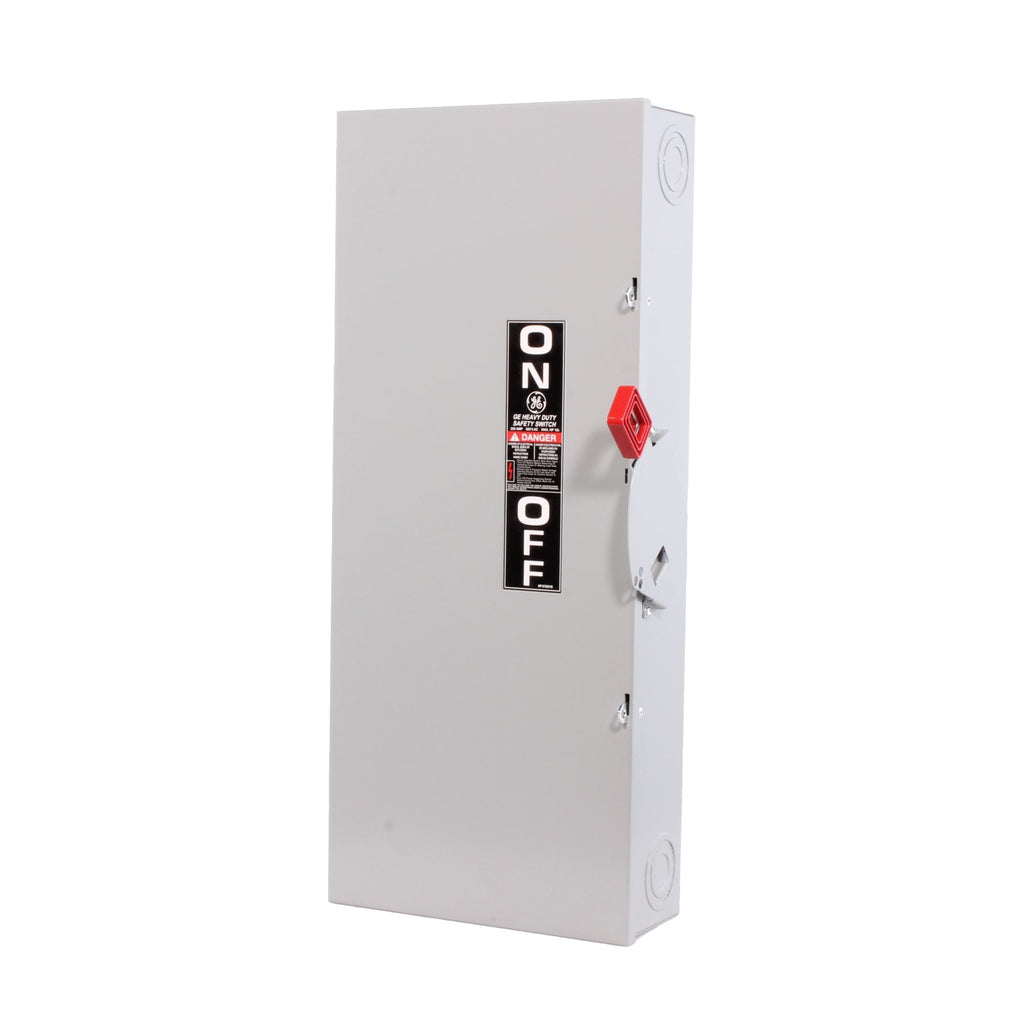

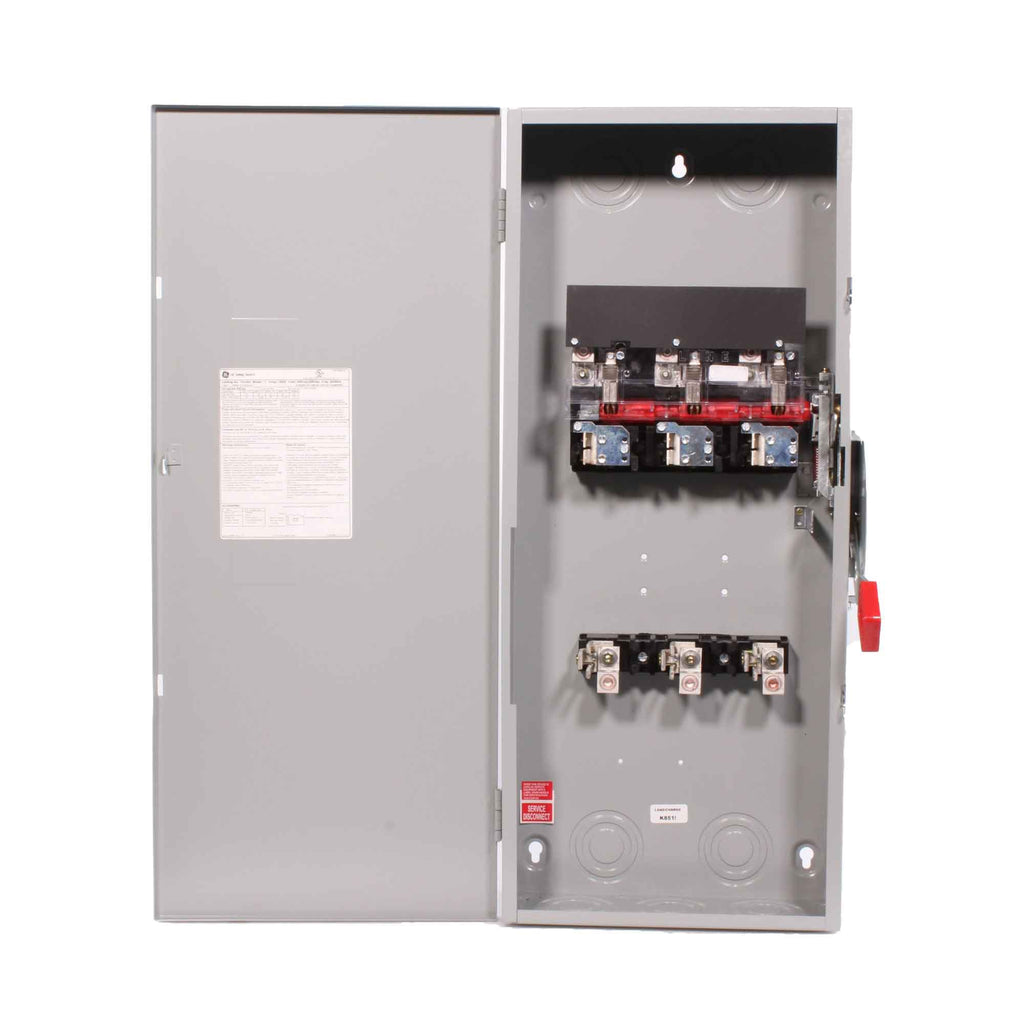

TH3364 is a General Electric heavy duty fusible safety switch rated for 200 amperes and 600 volts AC with a 3 pole configuration and NEMA 1 indoor enclosure.This switch is designed for commercial and industrial applications requiring reliable power distribution and safety. It features a fusible design with Class H/J/R time delay fuses, supports 3 wires without neutral, and complies with UL 98 and CSA standards. The switch is rated for 50 HP at 480 VAC 3-phase and 60 HP at 600 VAC 3-phase under NEC standards, with a compact size of approximately 31.5 inches height, 13.3 inches width, and 5.1 inches depth.
- Key Specifications
- Amperage: 200 A
- Voltage: 600 VAC (also rated for 480 VAC and 250 VDC)
- Poles: 3
- Fusing: Fusible with Class H/J/R time delay fuses
- Enclosure: NEMA 1 (Indoor)
- Mounting: Surface mount
- Approvals: UL 98, CSA Listed
- Wire Configuration: 3 wires, no neutral
- Power Rating: 50 HP at 480 VAC 3-phase, 60 HP at 600 VAC 3-phase
- Dimensions: 31.5 in H x 13.3 in W x 5.1 in D
- Weight: 33 lbs
Specifications
- Part Number: TH3364
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Disconnect
- Family : Spec-Setter
- Type : TH
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : ED
Product Data
- UPC : 783164009156
- GTIN : 00783164009156
- Weight : 32 lb
