Product Info
- Manufacturer:General Electric
- Sub-Category:Disconnect
Description
TH3362JR

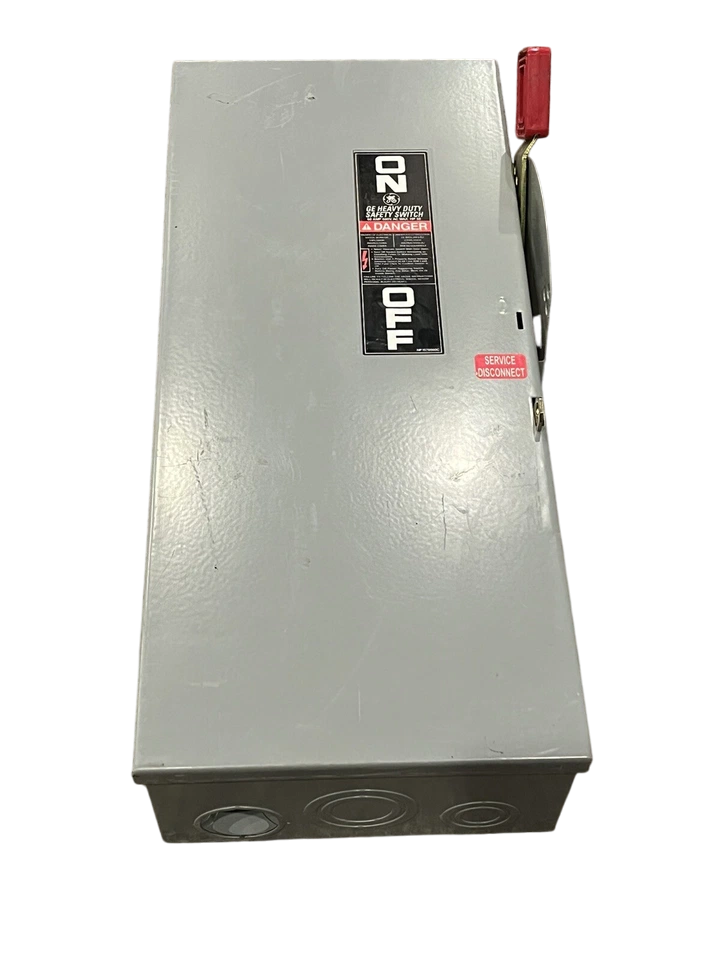

TH3362JR is a General Electric heavy duty fusible safety switch designed for reliable power distribution and control.TH3362JR features a 60 ampere rating, 3 poles, and supports voltages up to 600 VAC and 250 VDC. It includes Class H/J/R time delay fuses and is rated for 15 HP at 480/600 VAC standard fuse and 50 HP with time delay fuse. The switch is NEMA 1 rated and UL 98 and CSA certified, making it suitable for industrial applications requiring robust safety and durability.
- Key Specifications
- Amperage: 60 A
- Voltage: 600 VAC / 250 VDC
- Poles: 3
- Fuse Type: Class H/J/R Time Delay Fusible
- Horsepower Rating: 15 HP standard fuse, 50 HP time delay fuse at 480/600 VAC
- Mounting Type: Heavy Duty Safety Switch
- Enclosure: NEMA 1
- Certifications: UL 98, CSA
- Series: Spec-Setter TH
- Dimensions: Approx. 10-1/8" W x 5" D x 21-3/8" H
Specifications
- Part Number: TH3362JR
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Disconnect
- Nema Rating : NEMA 3R
Product Data
- UPC : 78316406402
- GTIN : 00783164064025
- Weight : 30
