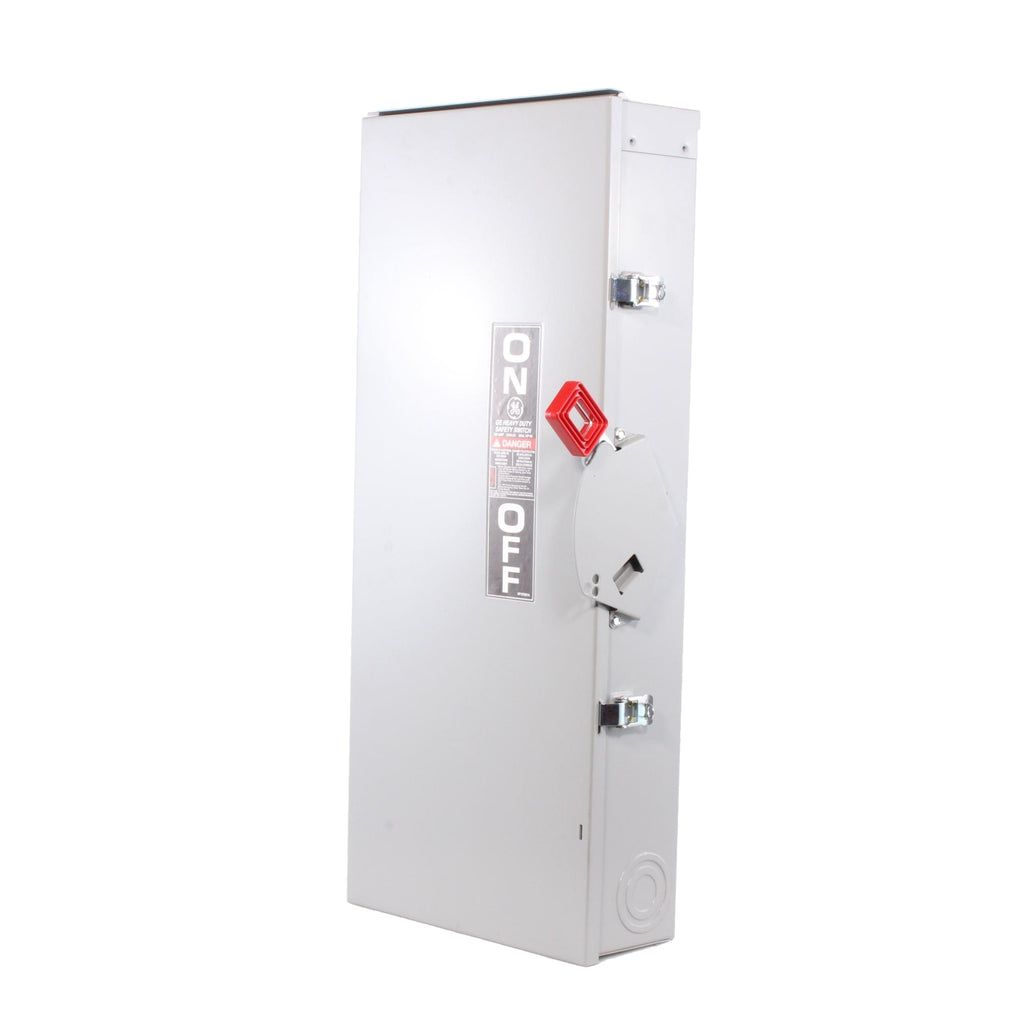

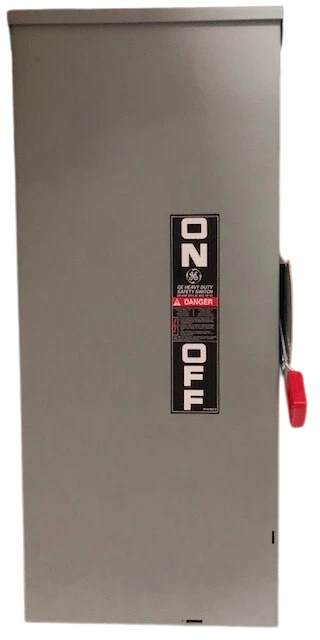

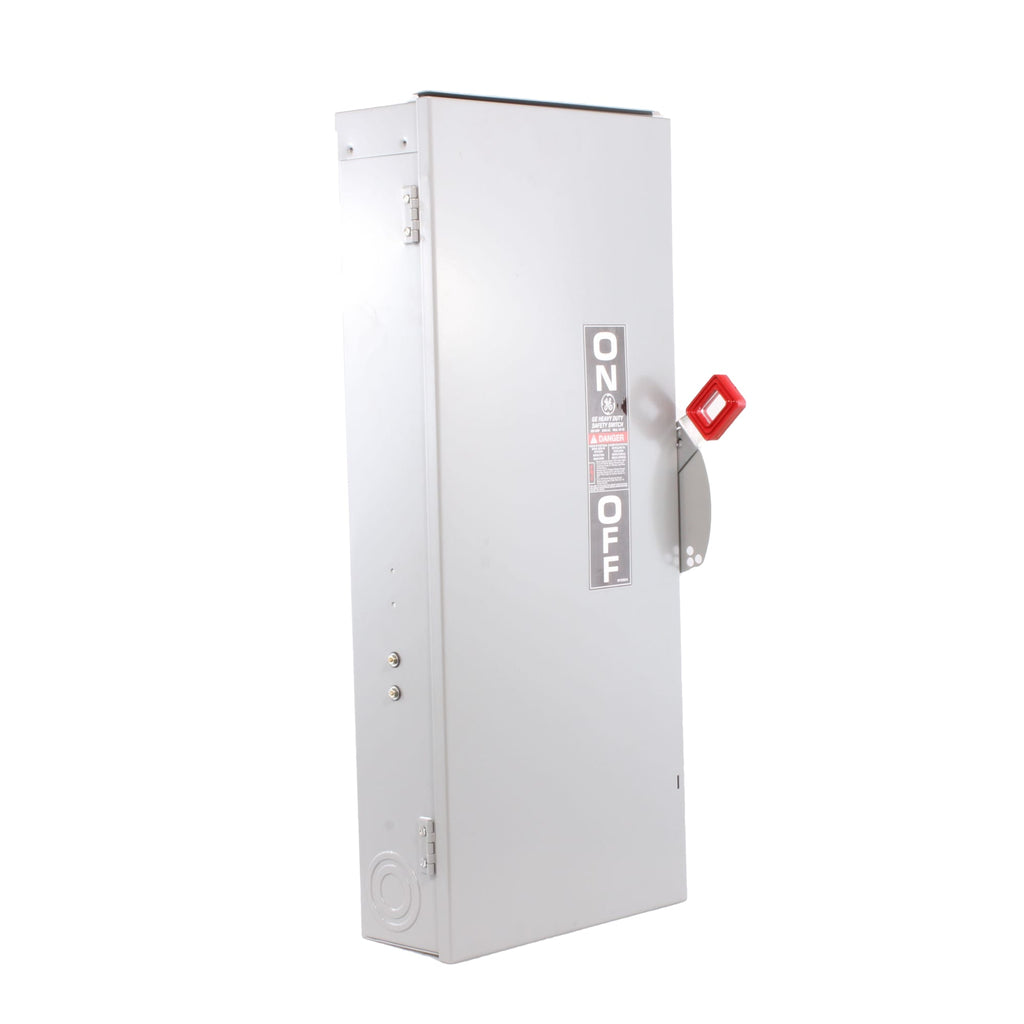

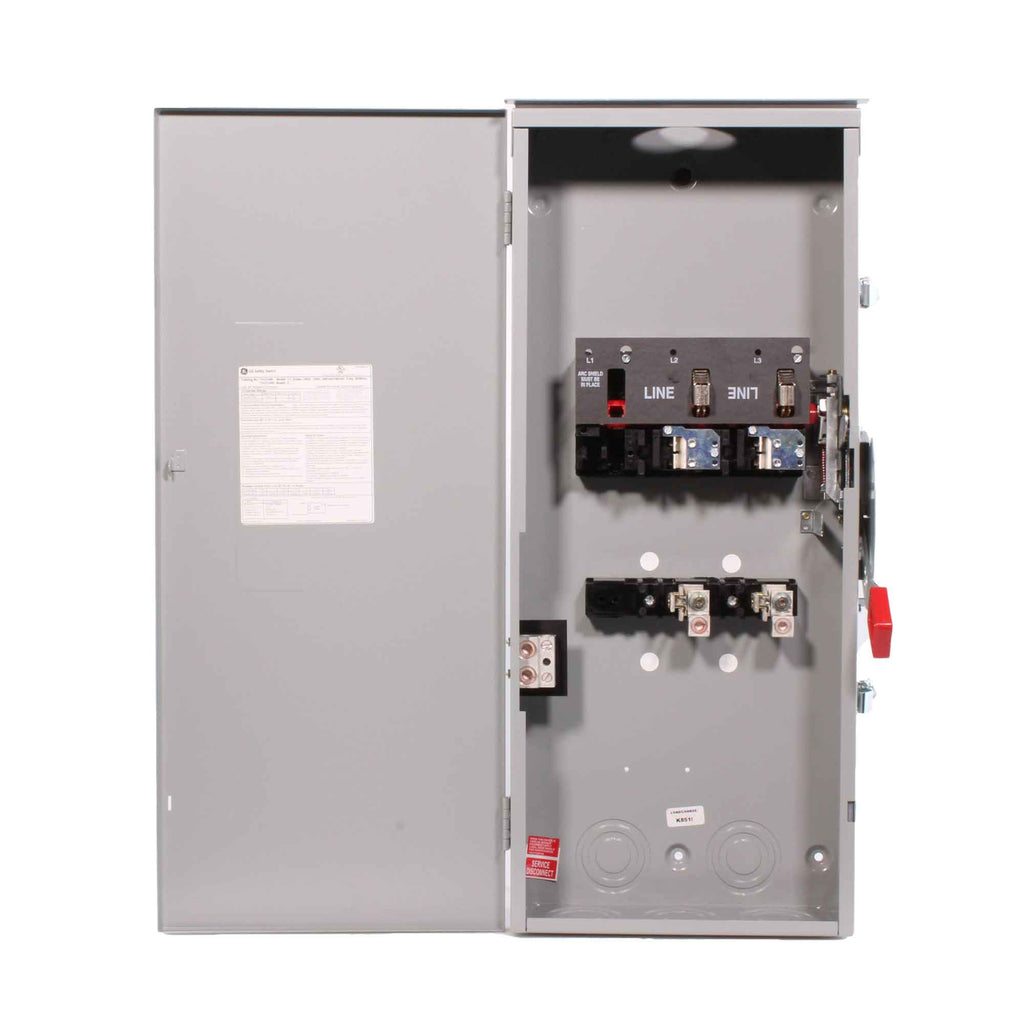

TH3224R - General Electric 200A 240V 2-Pole Fusible Heavy Duty Safety Switch NEMA 3R

Save $467.83
SKU: TH3224R-New
Condition: New
Price:
$593.17 $1,061.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

TH3224R General Electric Spec-Setter Disconnect 240V 200A Fusible Switch - Essential Electric Supply
TH3224R - General Electric 200A 240V 2-Pole Fusible Heavy Duty Safety Switch NEMA 3R - Essential Electric Supply
TH3224R - General Electric 200A 240V 2-Pole Fusible Heavy Duty Safety Switch NEMA 3R - Essential Electric Supply
TH3224R - General Electric 200A 240V 2-Pole Fusible Heavy Duty Safety Switch NEMA 3R - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TH3224R General Electric Spec-Setter Disconnect 240V 200A Fusible Switch - Essential Electric Supply
TH3224R - General Electric 200A 240V 2-Pole Fusible Heavy Duty Safety Switch NEMA 3R - Essential Electric Supply
TH3224R - General Electric 200A 240V 2-Pole Fusible Heavy Duty Safety Switch NEMA 3R - Essential Electric Supply
TH3224R - General Electric 200A 240V 2-Pole Fusible Heavy Duty Safety Switch NEMA 3R - Essential Electric Supply

Description

TH3224R


TH3224R is a General Electric Spec-Setter fused heavy duty safety switch designed for outdoor power distribution applications. This fusible disconnect switch provides reliable circuit isolation and protection for single-phase systems requiring manual on-off control with fused overcurrent protection.Technical Overview

The TH3224R is engineered for heavy-duty industrial and commercial applications where dependable load switching and fault protection are essential. The switch features a robust construction suitable for outdoor NEMA 3R enclosure mounting, delivering consistent performance in demanding environments. Its fusible design allows for customizable overcurrent protection through standard fuse cartridges, enabling users to match protection levels to specific circuit requirements.

Key Specifications
  • Amperage Rating: 200 A
  • Voltage: 240 VAC
  • Poles: 2
  • Wires: 3
  • Fusing Type: Fusible
  • Enclosure Type: NEMA 3R
  • Phase: Single Phase
  • Frequency: 50/60 Hz
  • Horsepower: 15 hp
  • Short Circuit Current Rating: 200 kA
  • UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: TH3224R
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Switch
  • Item Subcategory : Disconnect
  • Family : Spec-Setter
  • Type : TH
  • Voltage : 240
  • Amperage : 200
  • Phase : 1
  • Poles : 2
  • AIC rating : 200kA@240V
  • Fuse Class : R
  • Configuration : Single
  • Switch Style : Fusible
  • Nema Rating : NEMA 3R
  • Compatible Frames : FD

Product Data

  • UPC : 783164009002
  • GTIN : 00783164008982
  • Weight : 30
