Product Info
- Manufacturer:General Electric
- Sub-Category:Disconnect
Description
TG4321R

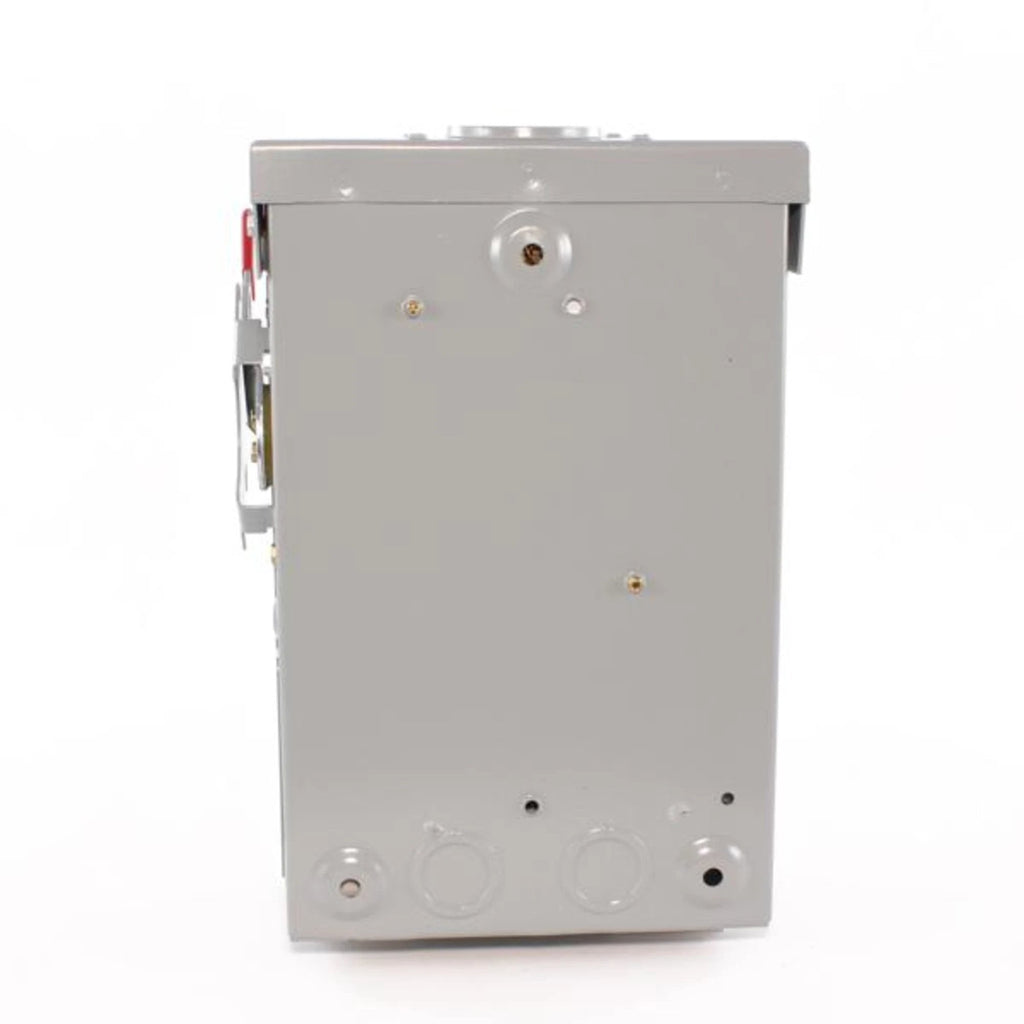

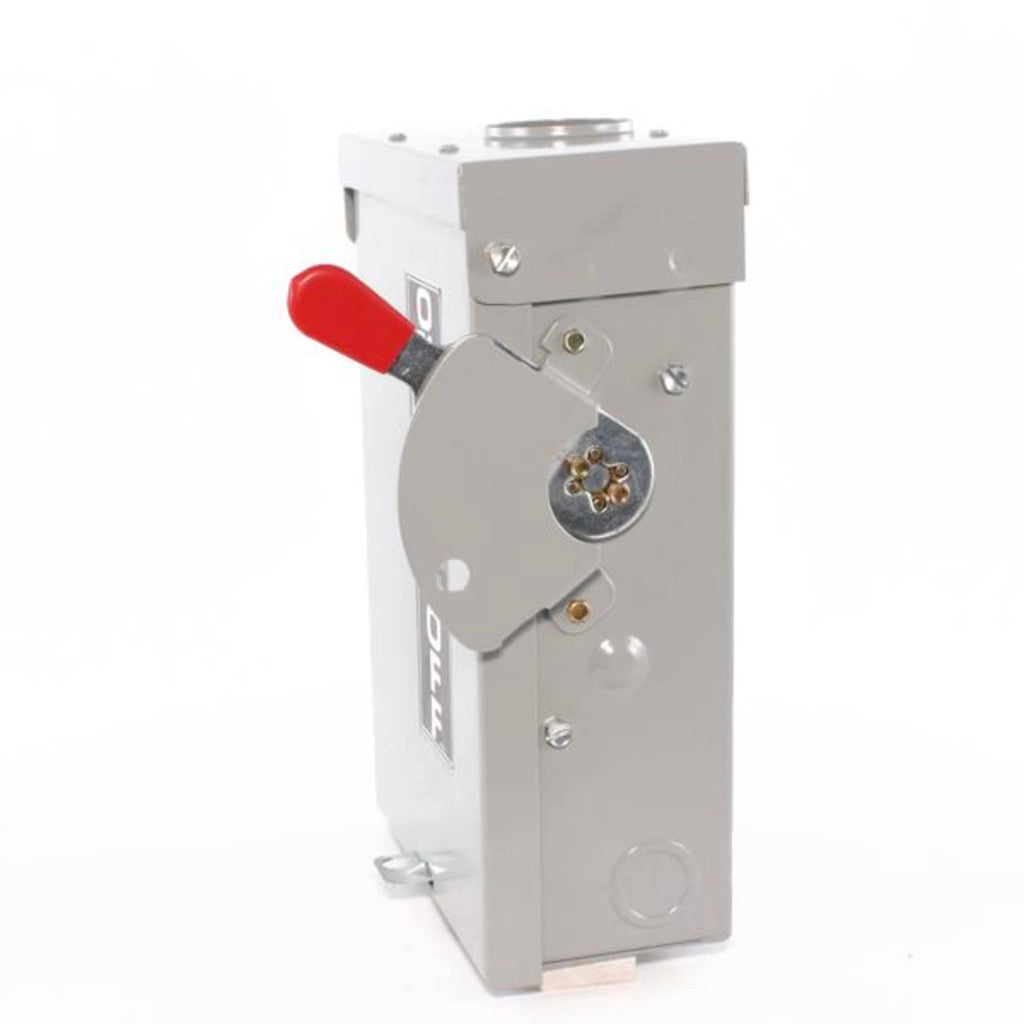

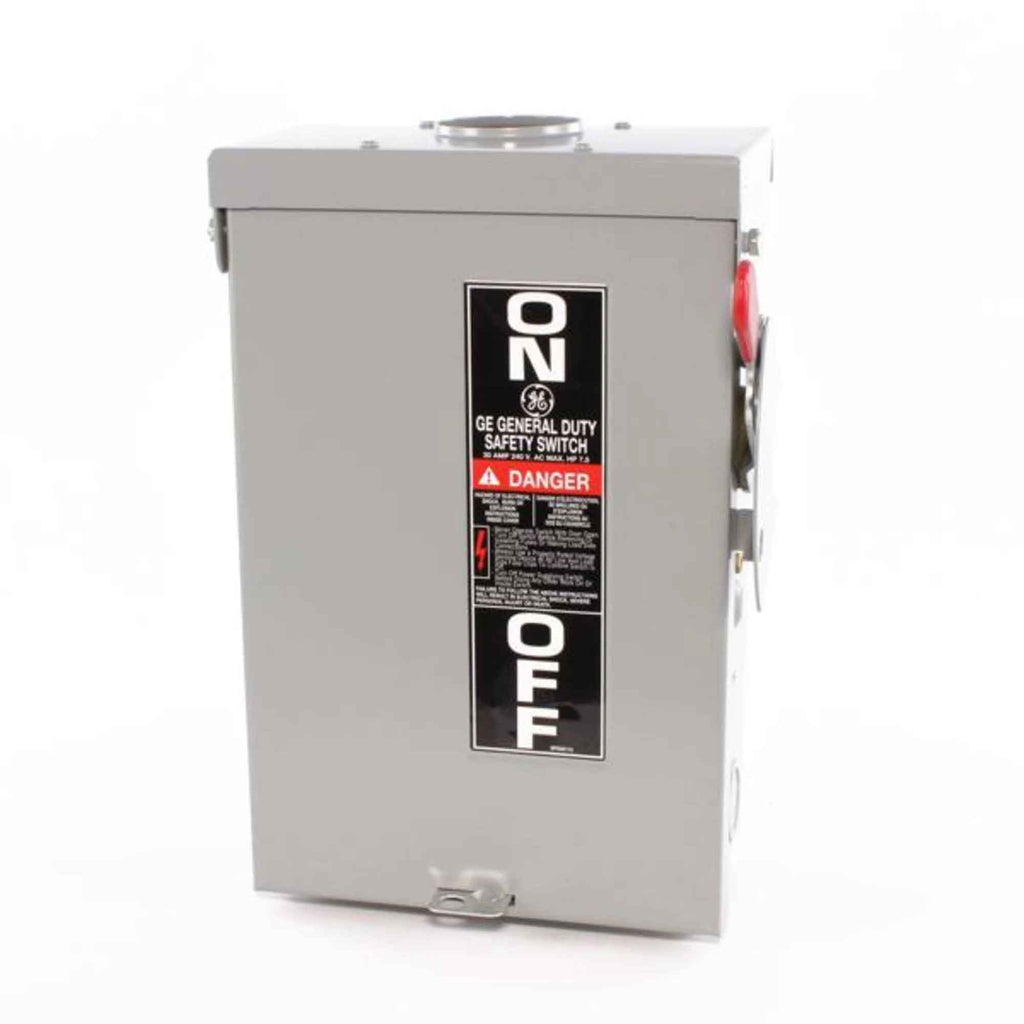

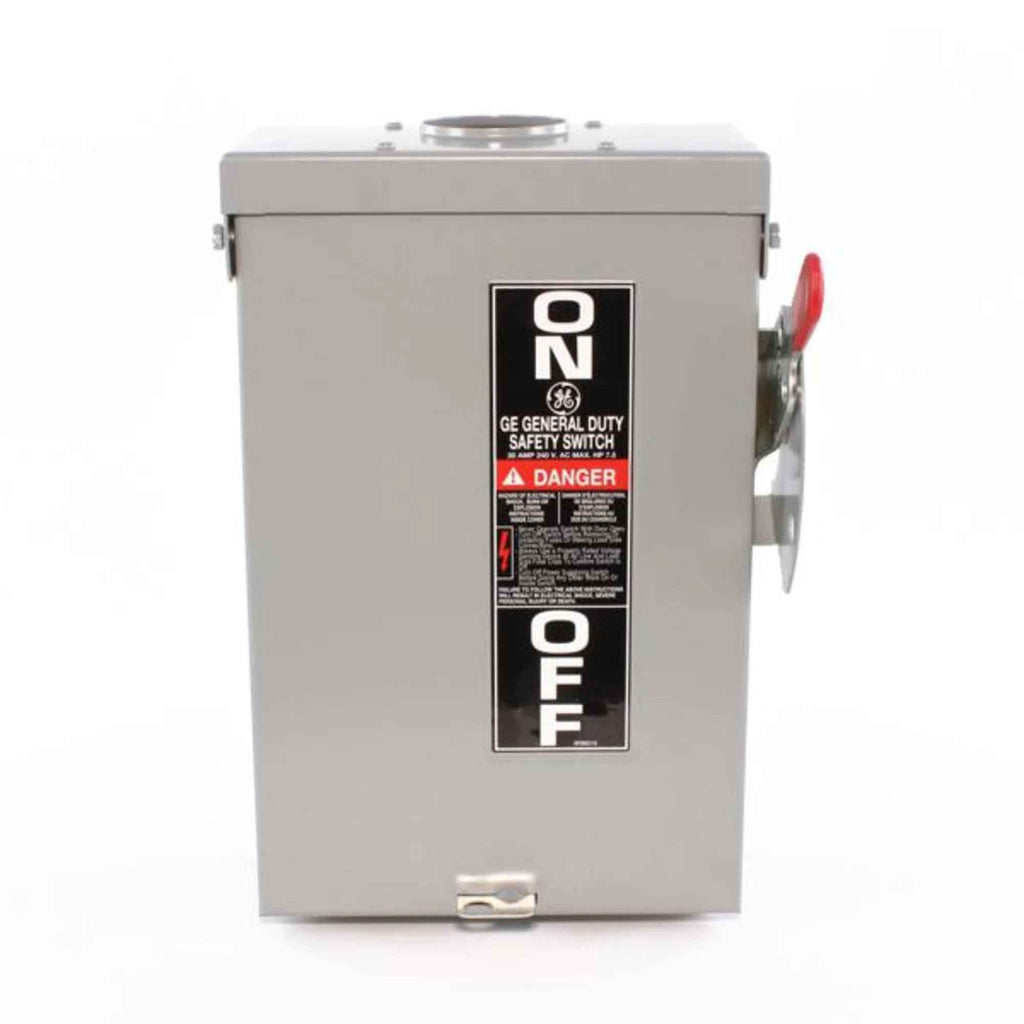

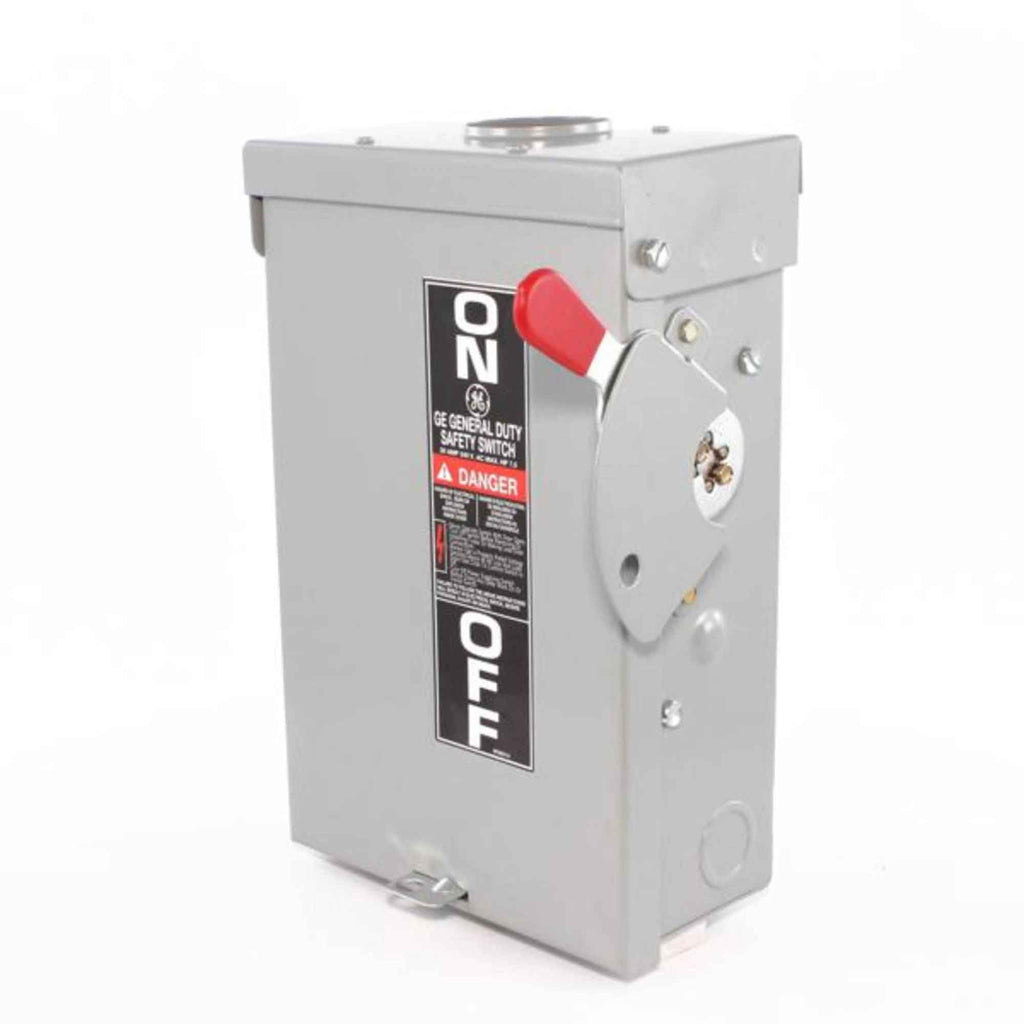

TG4321R is a General Electric 30 Amp, 240 Volt, 3-Pole Fusible General Duty Safety Switch with a NEMA 3R outdoor enclosure.This switch is designed for residential and light commercial applications requiring general duty disconnect with fusible protection. It features a 4-wire configuration, supports wire ranges 14-8 AWG copper and 12-8 AWG aluminum, and is UL Listed and CSA Certified. The NEMA 3R enclosure provides rust protection suitable for outdoor use. It has a short-circuit interrupt rating of 100kA at 240V and supports 1.5 hp standard fuse and 3 hp time delay fuse ratings.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 240 VAC
- Poles: 3
- Wire: 4-wire
- Mounting Type: Surface Mount
- Interrupt Rating: 100kA @ 240V
- Enclosure Type: NEMA 3R (Outdoor)
- Type of Duty: General Duty
- Disconnect Type: Fusible
- Wire Range: 14-8 AWG Cu / 12-8 AWG Al
- Certifications: UL Listed, CSA Certified
- Series/Frame: TG Series
Specifications
- Part Number: TG4321R
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Disconnect
- Family : Spec-Setter
- Type : TG
- Voltage : 240
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
- Compatible Frames : ED
Product Data
- UPC : 783164008623
- GTIN : 00783164008623
- Weight : 7 lb
