Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TFK236225WL

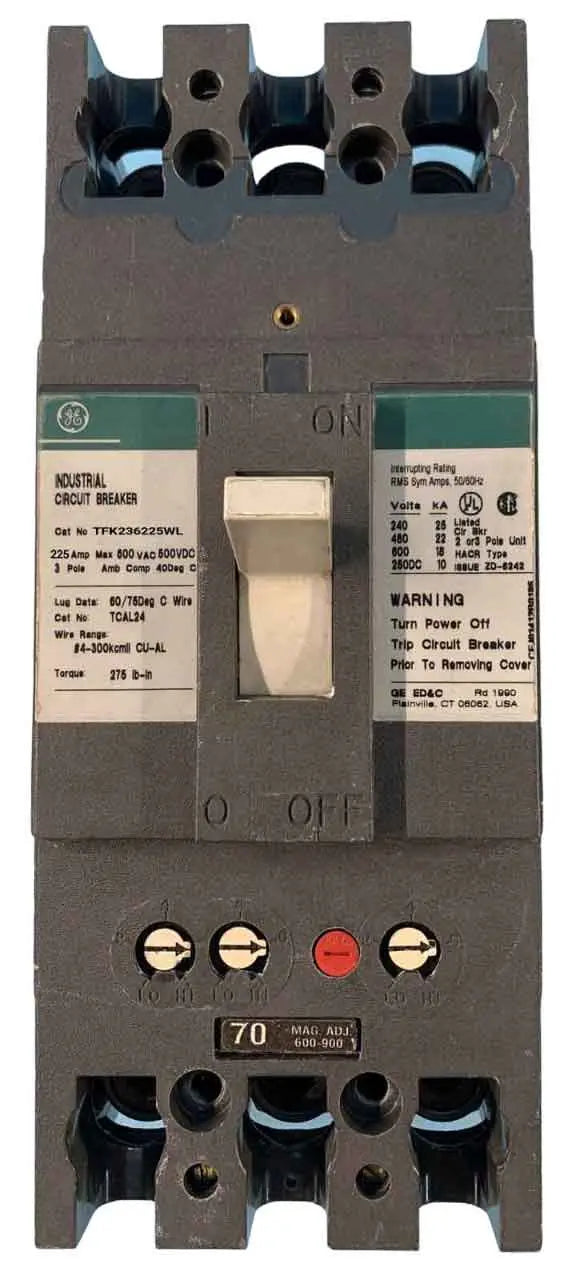

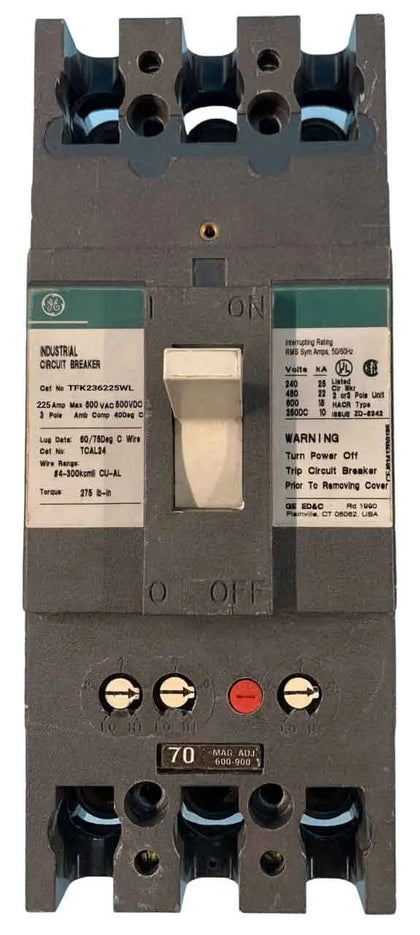

TFK236225WL is a General Electric 225 Amp, 3 Pole molded case circuit breaker designed for industrial power distribution applications.This circuit breaker features a thermal magnetic trip unit and is built on the F frame series. It is rated for 600 VAC and 250 VDC operation with an interrupting rating of 25 kiloamperes at 240 VAC. The breaker includes line and load lugs for secure mounting and connection.
- Key Specifications
- Amperage: 225 Amp
- Voltage: 600 VAC, 250 VDC
- Poles: 3
- Frame/Series: F Frame (TFK)
- Trip Unit: Thermal Magnetic
- Interrupting Rating: 25 kA at 240 VAC
- Mounting Type: Molded Case
- Line and Load Lugs Included
- Part Number: TFK236225WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : F225 Line
- Type : TFK
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Weight : 12
