Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TFK236150WL

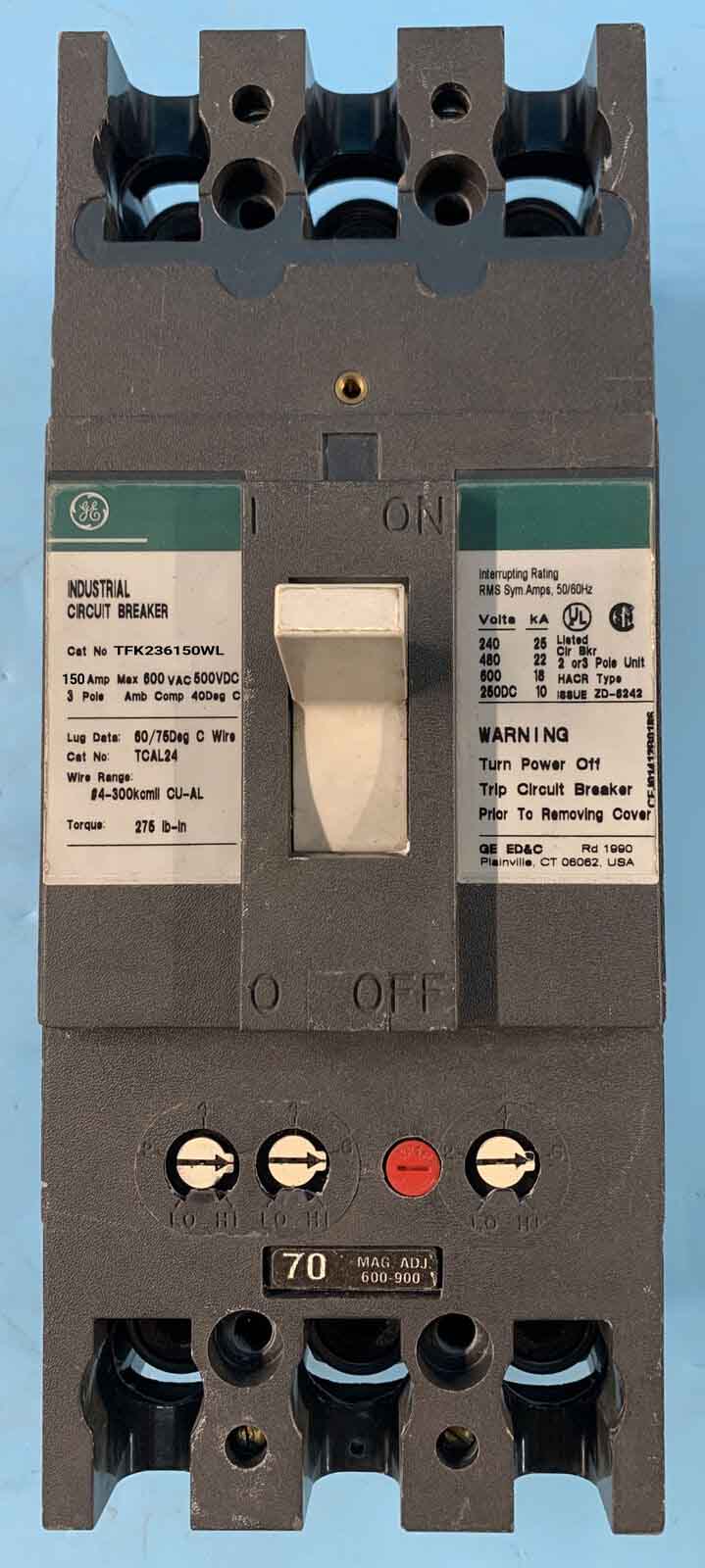

TFK236150WL is a 3 Pole thermal magnetic molded case circuit breaker from General Electric designed for 150 Amp, 600VAC applications.TFK236150WL features a 22kA interrupting rating at 480V, feed-thru connection type, and includes long time and instantaneous trip functions for reliable circuit protection. It uses line and load side lug terminals and is rated for 40°C operation.
- Manufacturer: General Electric
- Series/Frame: TFK
- Amperage: 150 Amps
- Voltage: 600VAC
- Poles: 3
- Interrupting Rating: 22kAIC at 480V
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Connection Type: Feed-Thru
- Terminal Connection: Line and Load Side Lug
- Temperature Rating: 40°C
- Phase: 3
Specifications
- Part Number: TFK236150WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : F225 Line
- Type : TFK
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 078316404468
- Weight : 12
