Product Info
- Manufacturer:ABB
- Sub-Category:Contactors
Description

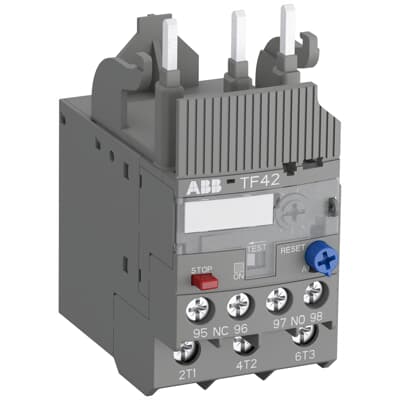

TF42-0.17
TF42-0.17 is a three-pole thermal overload relay designed for motor protection with adjustable current settings and trip class 10 performance.This ABB TF42-0.17 relay provides reliable overload and phase failure protection for motors in industrial applications. It features temperature compensation, manual or automatic reset, and direct mounting compatibility with AF9-AF38 frame contactors. The relay includes status indication, sealable operating elements, and a trip-free mechanism for safe operation.
- Part Number: TF42-0.17
- Manufacturer: ABB
- Current Setting Range: 0.13-0.17 A
- Number of Poles: 3
- Mounting Type: Direct to AF9-AF38 Frame Contactors
- Main Circuit Voltage: 690 V AC
- Auxiliary Circuit Voltage: 600 V AC/DC
- Trip Class: 10
- Reset Type: Manual or Automatic
- Phase Loss Sensitivity: Yes
- Temperature Compensation: -25 to 60°C
- Standards: IEC/EN 60947-4-1, UL 508, CSA 22.2 No. 14
Specifications
- Part Number: TF42-0.17
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Overload relay
- Family : TF42
Product Data
- UPC : 4013614404696
- GTIN : 00013614404690
- Dimensions : 1.77 in W x 2.78 in D x 3.48 in H
- Weight : 4
