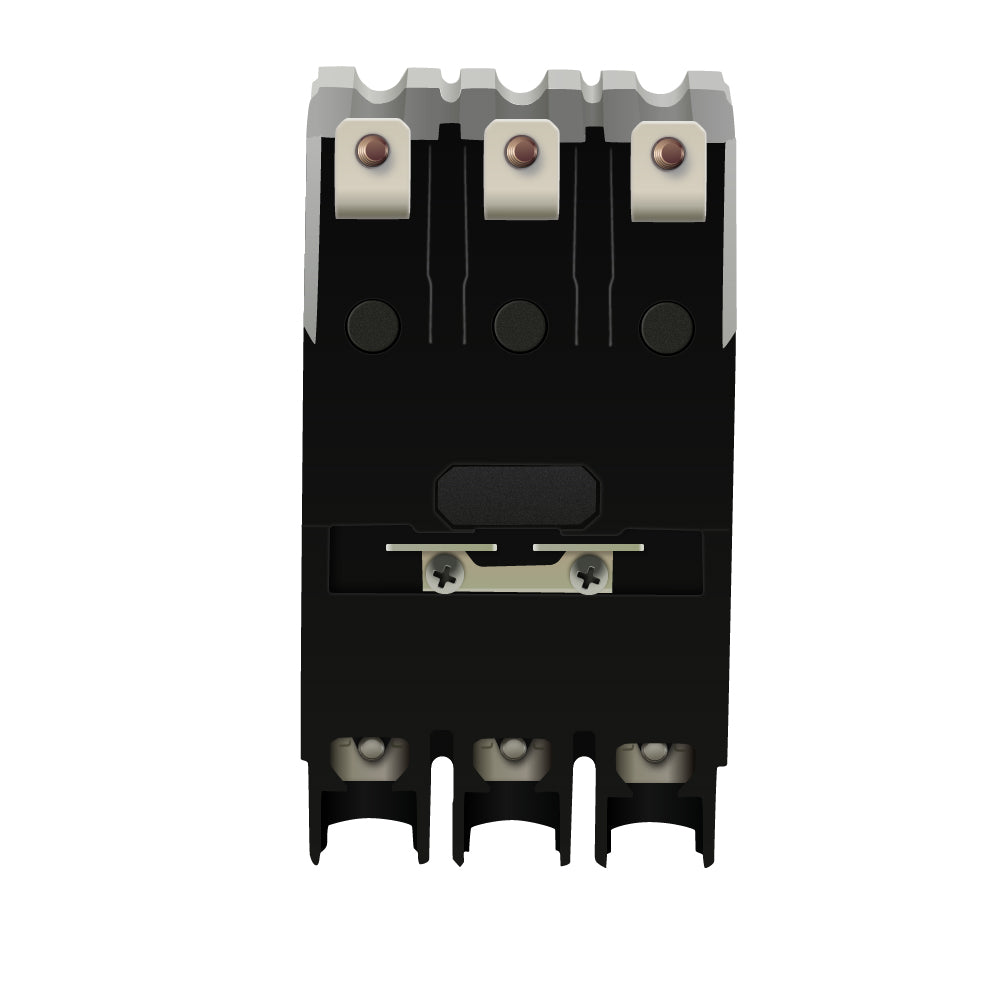

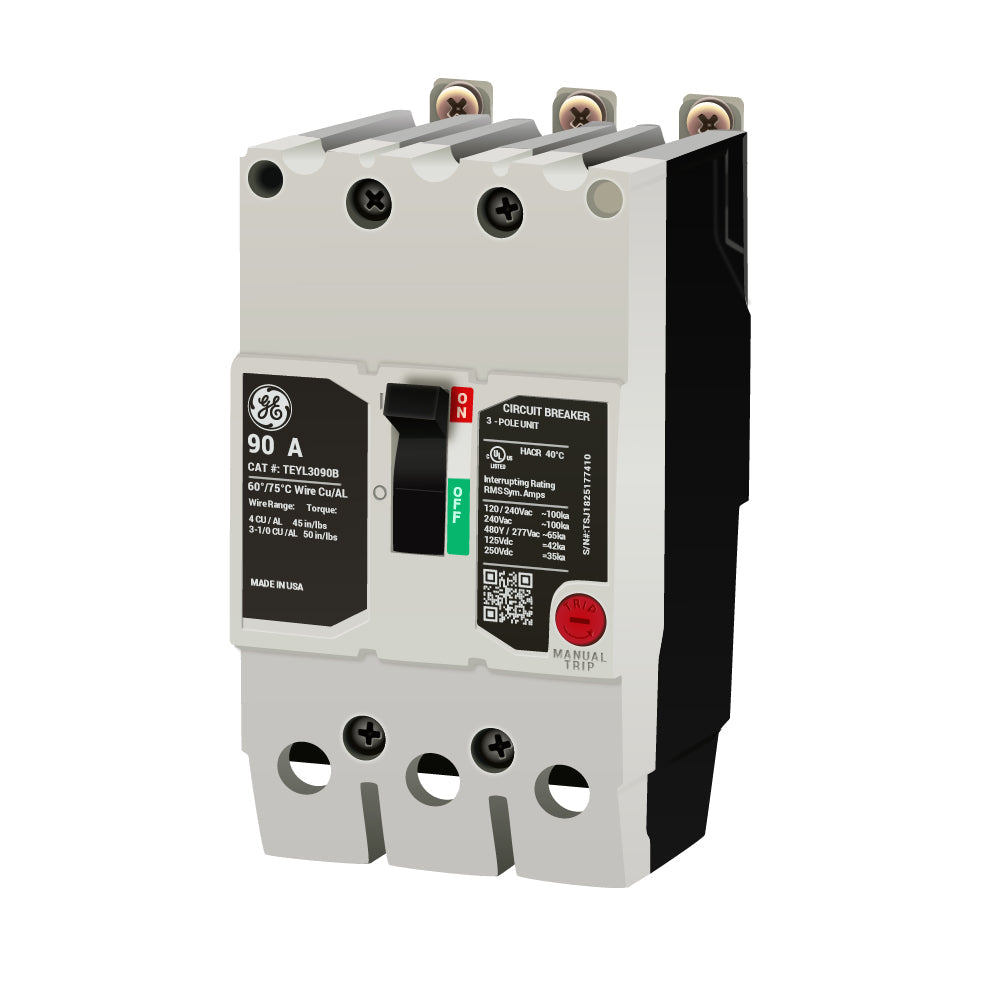

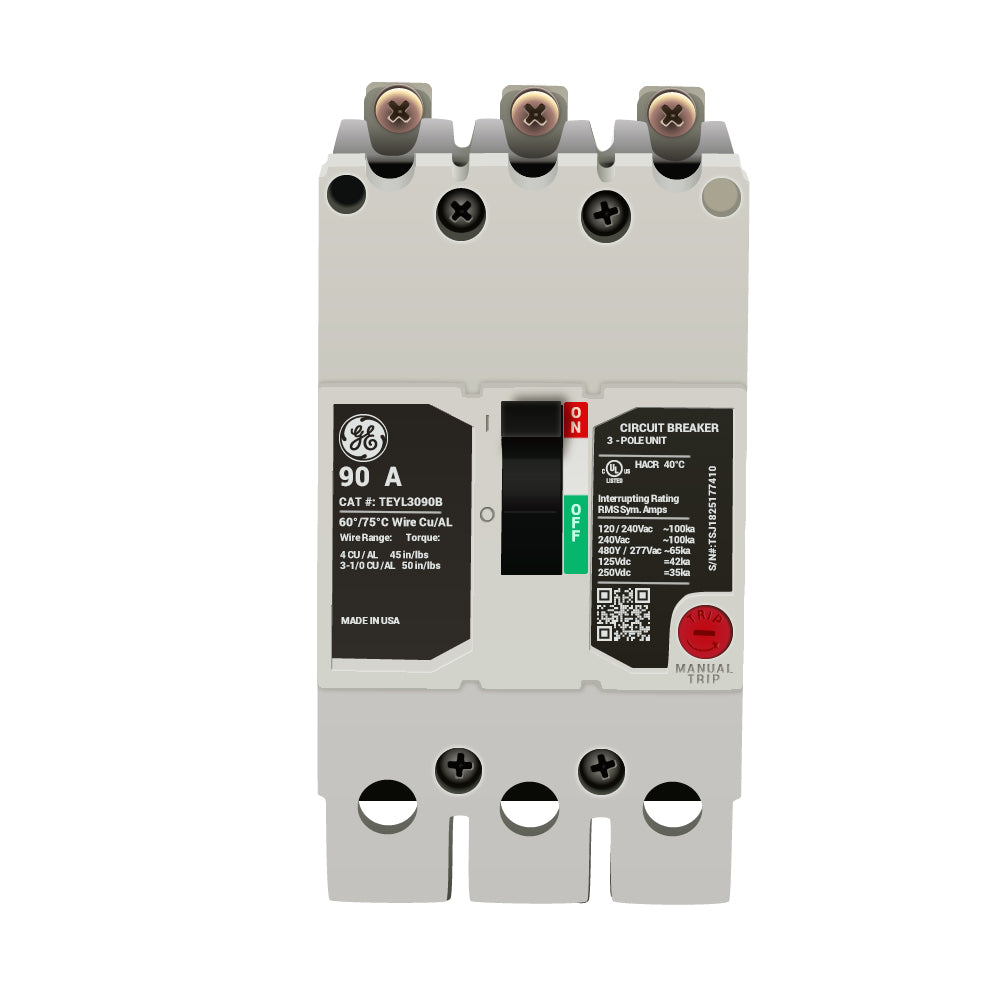

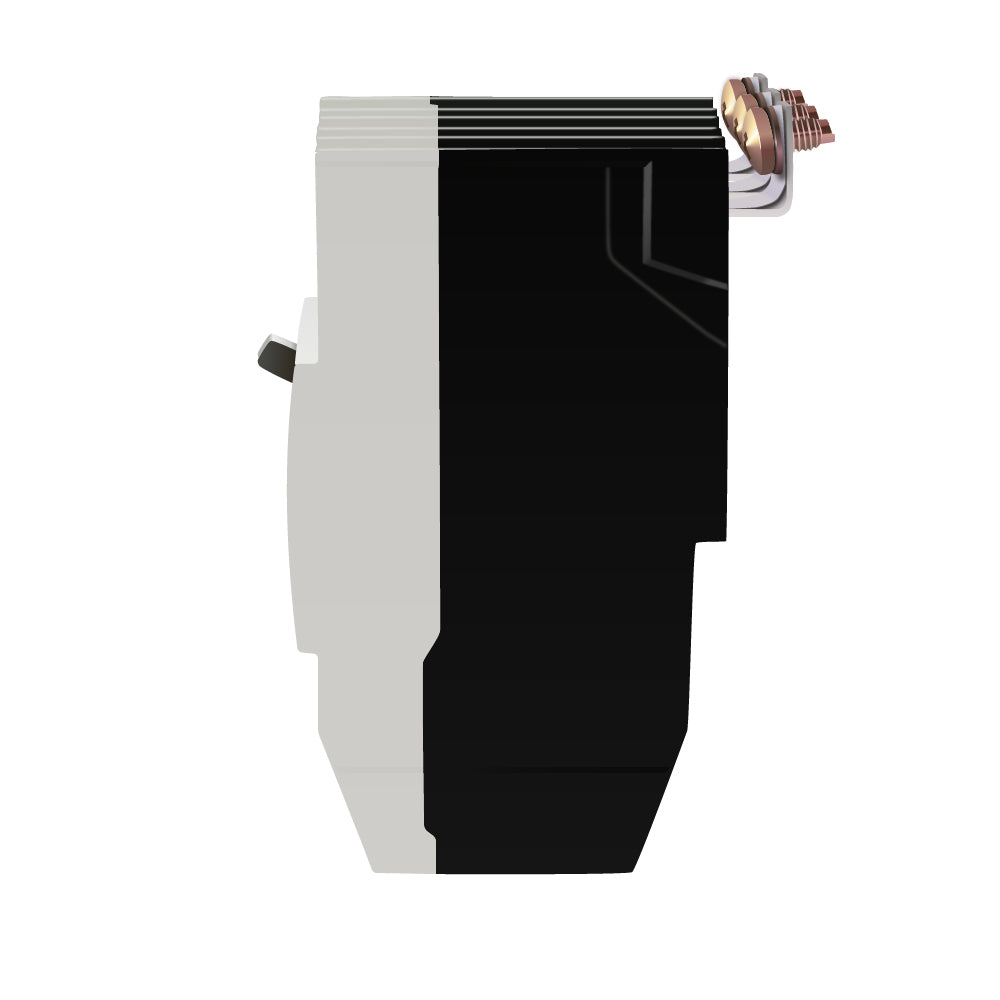

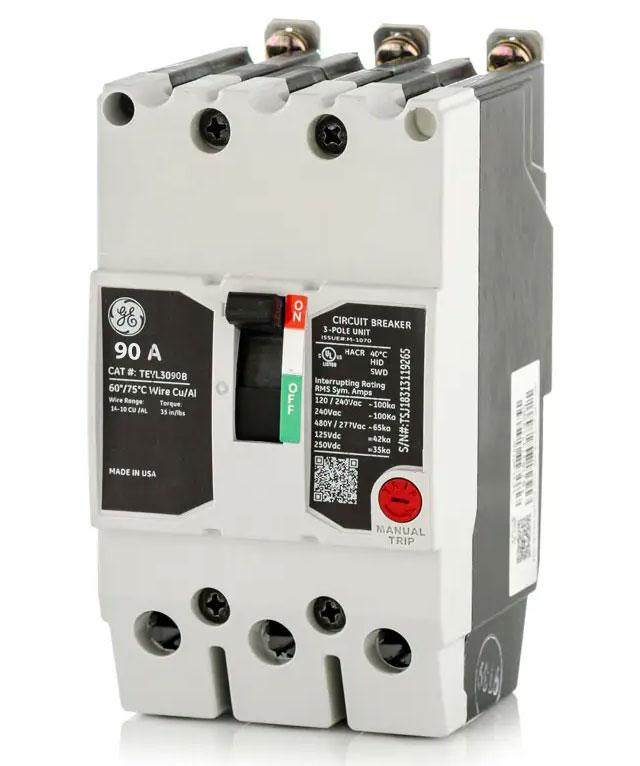

TEYL3090B - General Electric 90 Amp 480V 3 Pole TEYL Series Circuit Breaker Bolt-On Thermal Magnetic

Save $1,329.52
SKU: TEYL3090B-ReCert

Condition: Re-Certified
Price:
Sale price$367.48 Regular price$1,697.00
Stock:
3 in stock
Limited availability — we'll confirm stock immediately after your order.
This ships in 1-2 business days

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

Description

TEYL3090B


TEYL3090B is a General Electric 3-pole circuit breaker rated for 90 amps and 480 volts, designed for reliable protection in commercial and industrial applications.This TEYL series breaker features a bolt-on mounting type with thermal magnetic trip unit, providing long time and instantaneous trip functions. It has a very high interrupting rating of 65kA at 480V, suitable for 3-phase systems. The breaker is non-interchangeable and compact, designed for grounded 480Y/277V AC systems, ensuring safety and durability.
  • Amperage: 90 Amps
  • Voltage: 480/277 Volts AC
  • Poles: 3 Pole
  • Mounting Type: Bolt-On
  • Interrupt Rating: 65kA @ 480V
  • Series/Frame: TEYL
  • Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
  • Trip Type: Non-Interchangeable
  • Phase: 3 Phase
  • Application: Residential, Commercial, Industrial
  • Voltage Type: AC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYL3090B
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYL Series
  • Type : TEYL
  • Voltage : 480
  • Amperage : 90
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164462548
  • GTIN : 00783164462623
  • Country of Origin : United States
  • Weight : 2
  • Panel Type : GE AS Lighting Panels
  • Standards : UL
