TEYL3080B - General Electric 80A 3-Pole 480/277V TEYL Frame Bolt-On Circuit Breaker

Save $1,095.15
SKU: TEYL3080B-New
Condition: New
Price:
$601.85 $1,697.00
Stock:
27 In stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

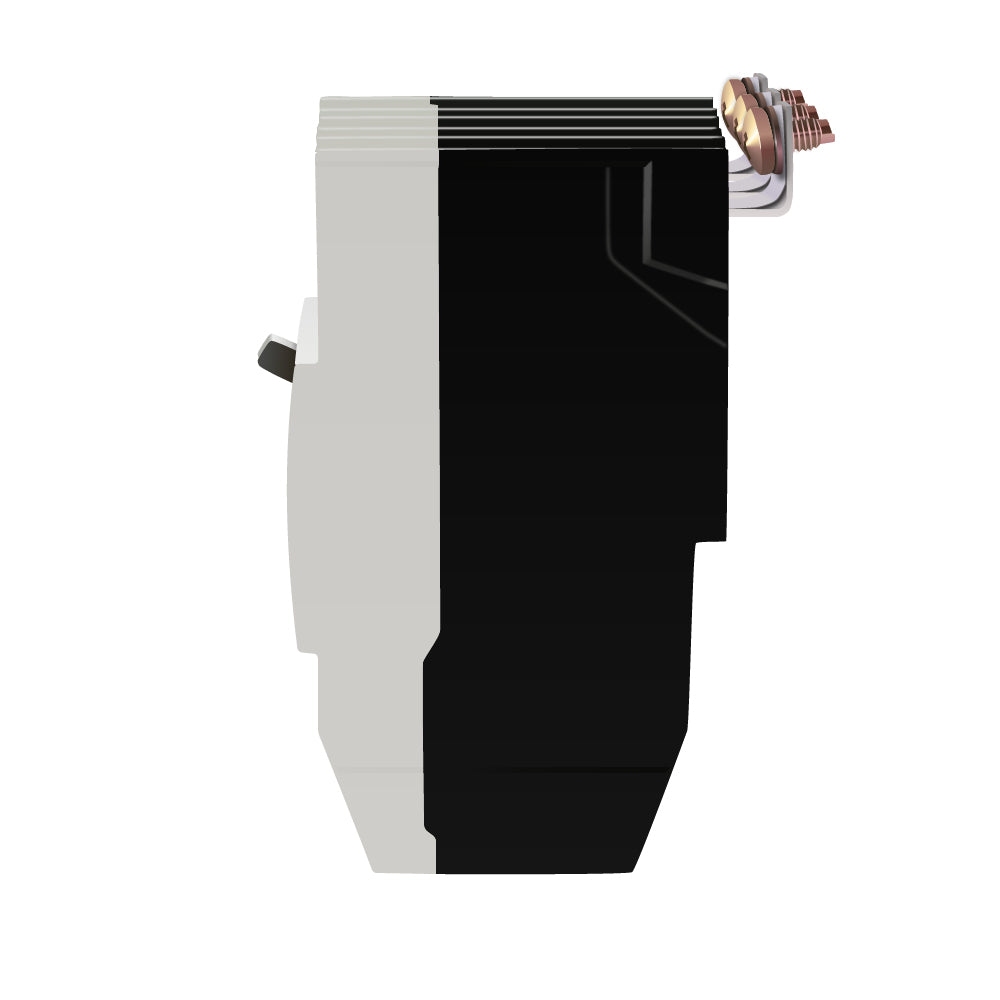

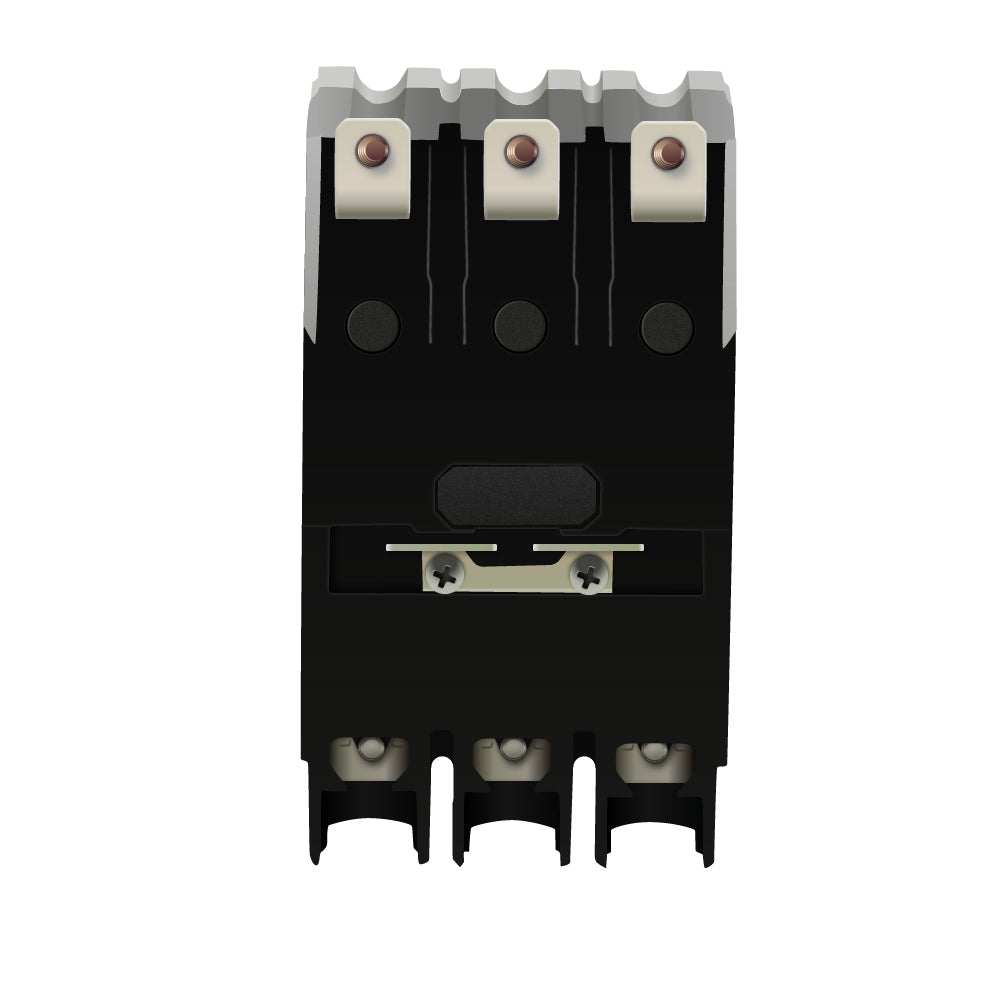

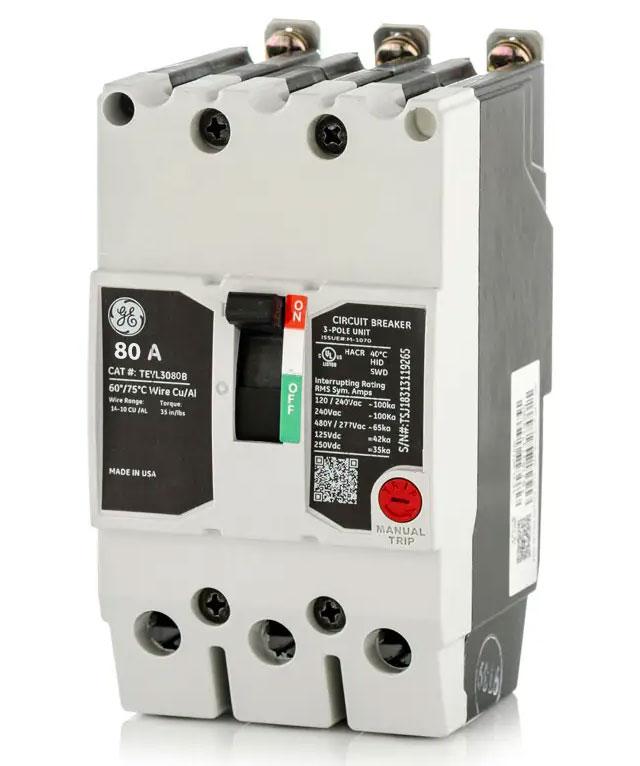

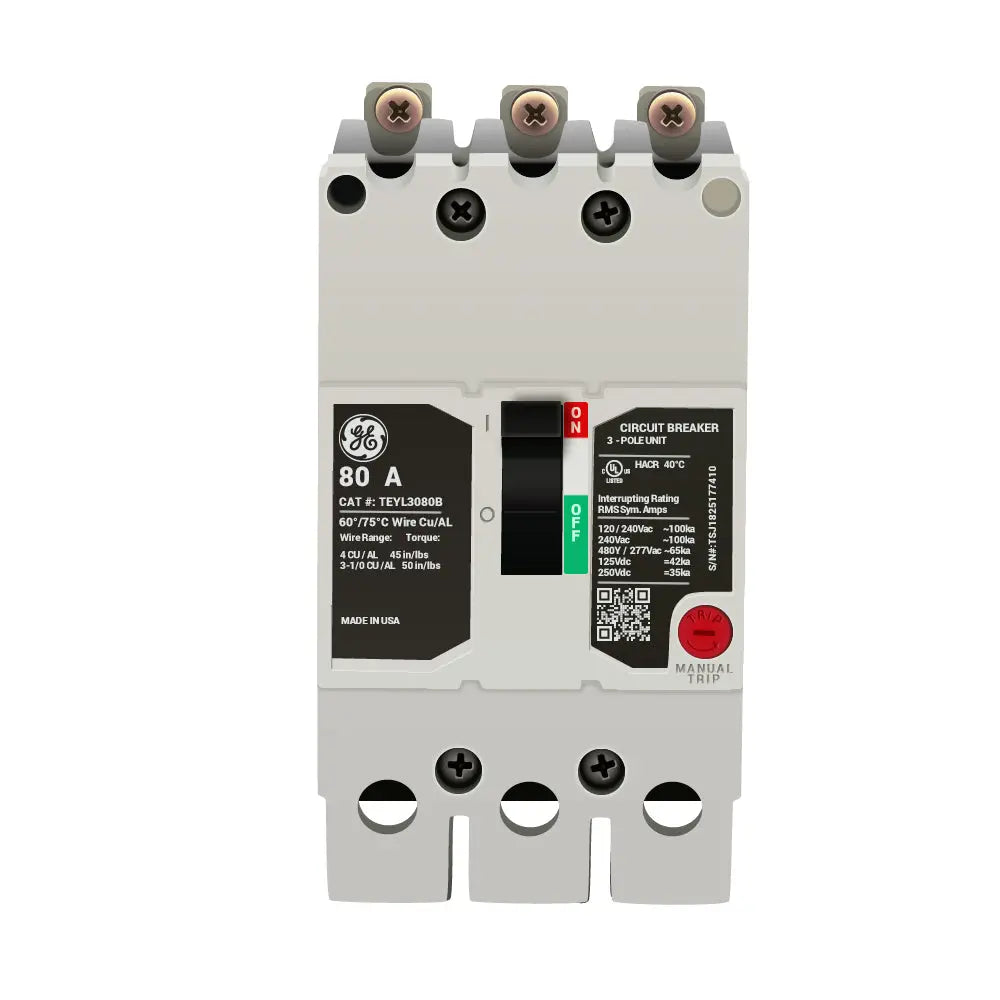

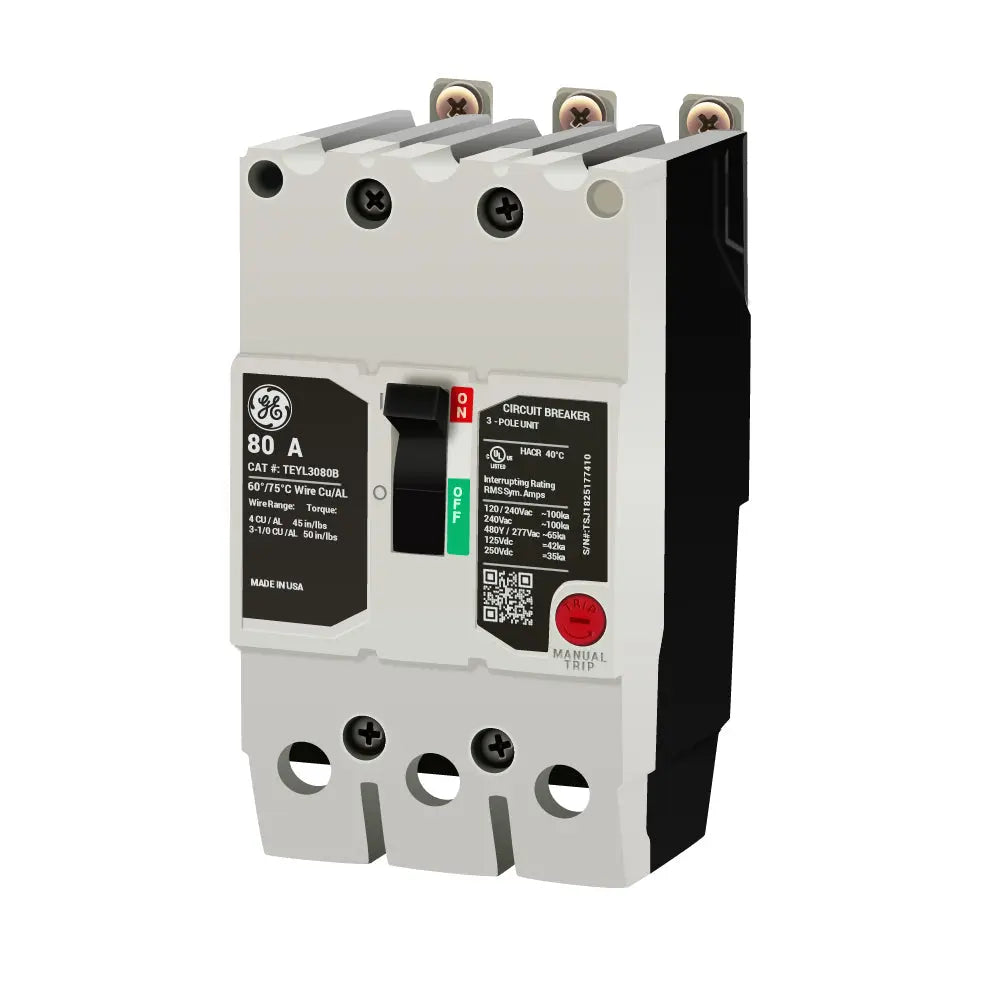

TEYL3080B - General Electric Bolt-On 80 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEYL3080B - General Electric 80A 3-Pole 480/277V TEYL Frame Bolt-On Circuit Breaker - Essential Electric Supply
TEYL3080B - General Electric 80A 3-Pole 480/277V TEYL Frame Bolt-On Circuit Breaker - Essential Electric Supply
TEYL3080B - General Electric 80A 3-Pole 480/277V TEYL Frame Bolt-On Circuit Breaker - Essential Electric Supply
TEYL3080B - General Electric 80A 3-Pole 480/277V TEYL Frame Bolt-On Circuit Breaker - Essential Electric Supply
TEYL3080B - General Electric 80A 3-Pole 480/277V TEYL Frame Bolt-On Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYL3080B - General Electric Bolt-On 80 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEYL3080B - General Electric 80A 3-Pole 480/277V TEYL Frame Bolt-On Circuit Breaker - Essential Electric Supply
TEYL3080B - General Electric 80A 3-Pole 480/277V TEYL Frame Bolt-On Circuit Breaker - Essential Electric Supply
TEYL3080B - General Electric 80A 3-Pole 480/277V TEYL Frame Bolt-On Circuit Breaker - Essential Electric Supply
TEYL3080B - General Electric 80A 3-Pole 480/277V TEYL Frame Bolt-On Circuit Breaker - Essential Electric Supply
TEYL3080B - General Electric 80A 3-Pole 480/277V TEYL Frame Bolt-On Circuit Breaker - Essential Electric Supply

Description

TEYL3080B


TEYL3080B is a General Electric 3-pole, 80 amp circuit breaker designed for lighting panel applications with a TEYL frame and bolt-on mounting.TEYL3080B features a thermal magnetic trip unit, supports system voltages up to 480/277 VAC and 250 VDC, and offers high interrupting ratings up to 100 kA at 120/240 VAC and 65 kA at 480 VAC. It is suitable for reverse feed and accepts wire sizes from #4 to 2/0 AWG.
  • Amperage: 80 A
  • Poles: 3
  • Voltage Rating: 120/240 VAC, 277/480 VAC, 250 VDC
  • Frame Type: TEYL
  • Mounting Type: Bolt-On Panelboard
  • Interrupting Rating: 100 kA at 120/240 VAC, 65 kA at 480 VAC
  • Trip Unit: Thermal Magnetic
  • Wire Range: #4 to 2/0 AWG
  • Suitable for Reverse Feed: Yes
  • UL Listed: UL File #E11592
  • Dimensions: Approx. 3" W x 3" D x 5.2" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYL3080B
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYL Series
  • Type : TEYL
  • Voltage : 480
  • Amperage : 80
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164462548
  • GTIN : 00783164462616
  • Country of Origin : United States
  • Weight : 2
  • Panel Type : GE AS Lighting Panels
  • Standards : UL
