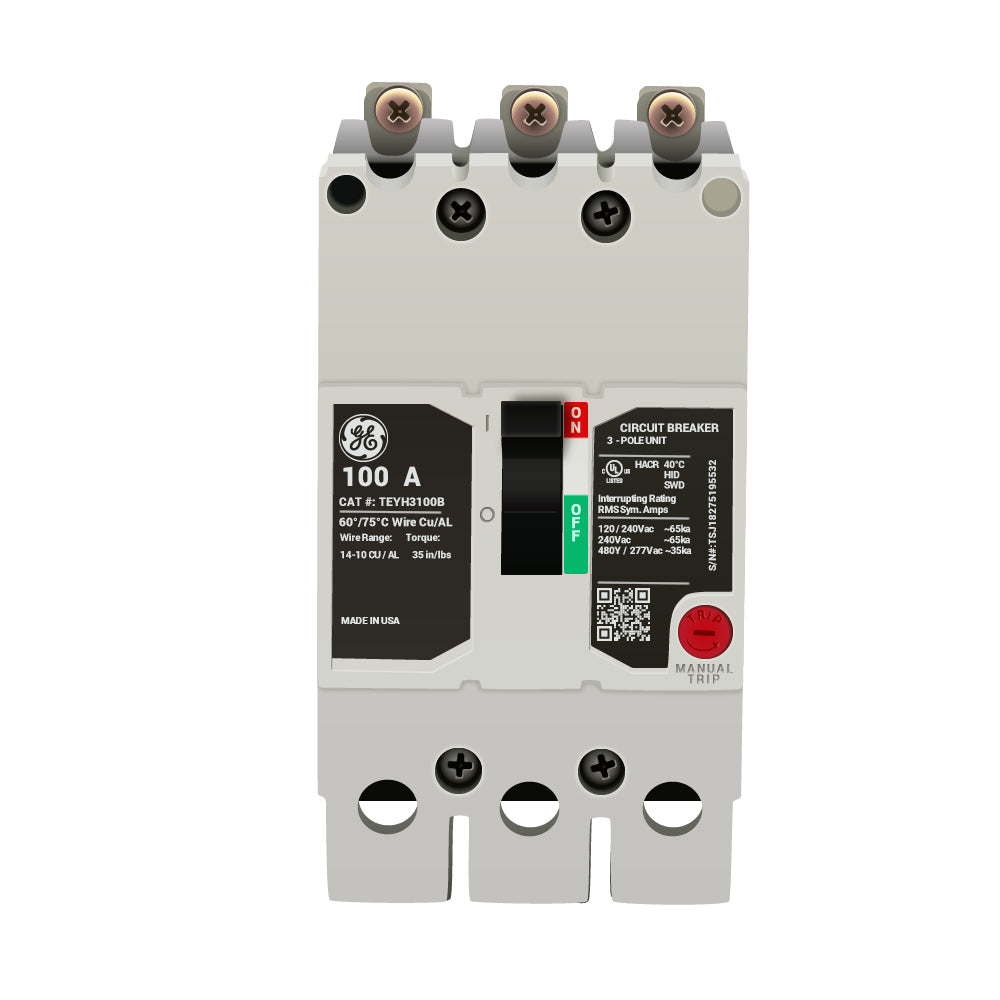

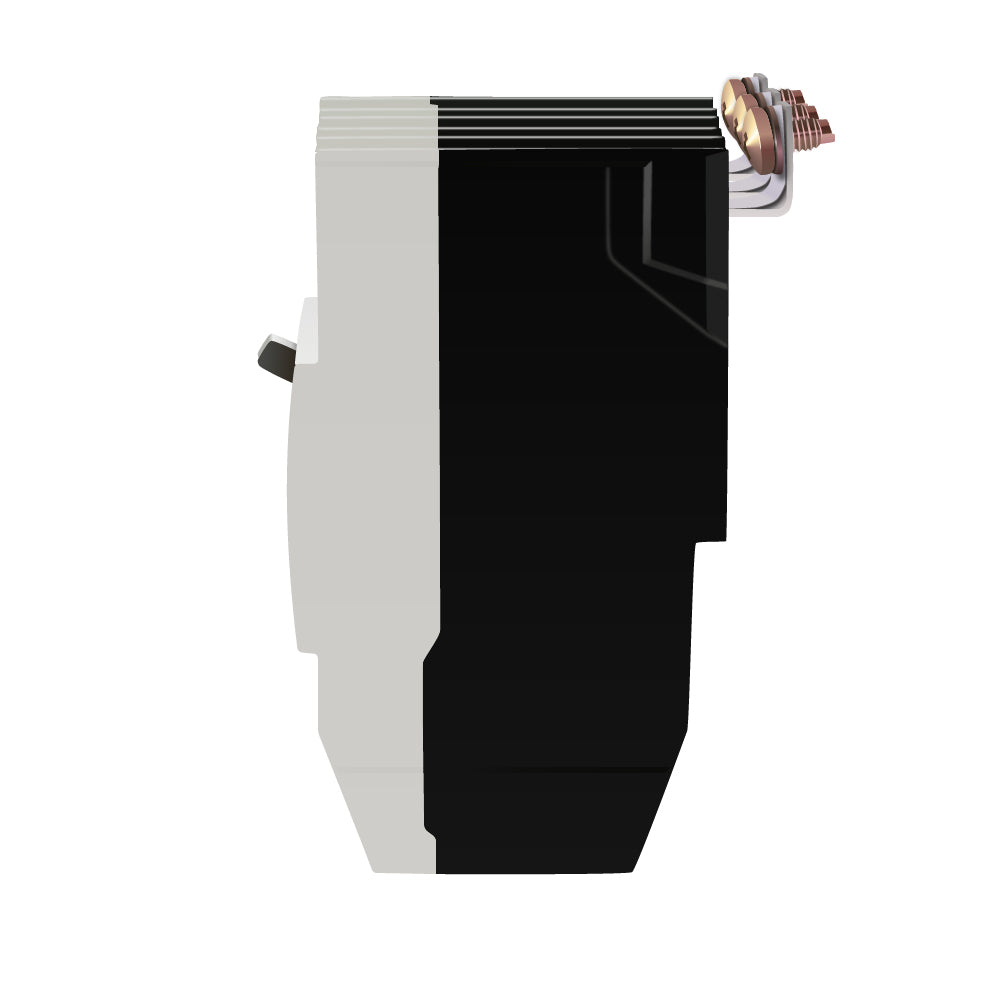

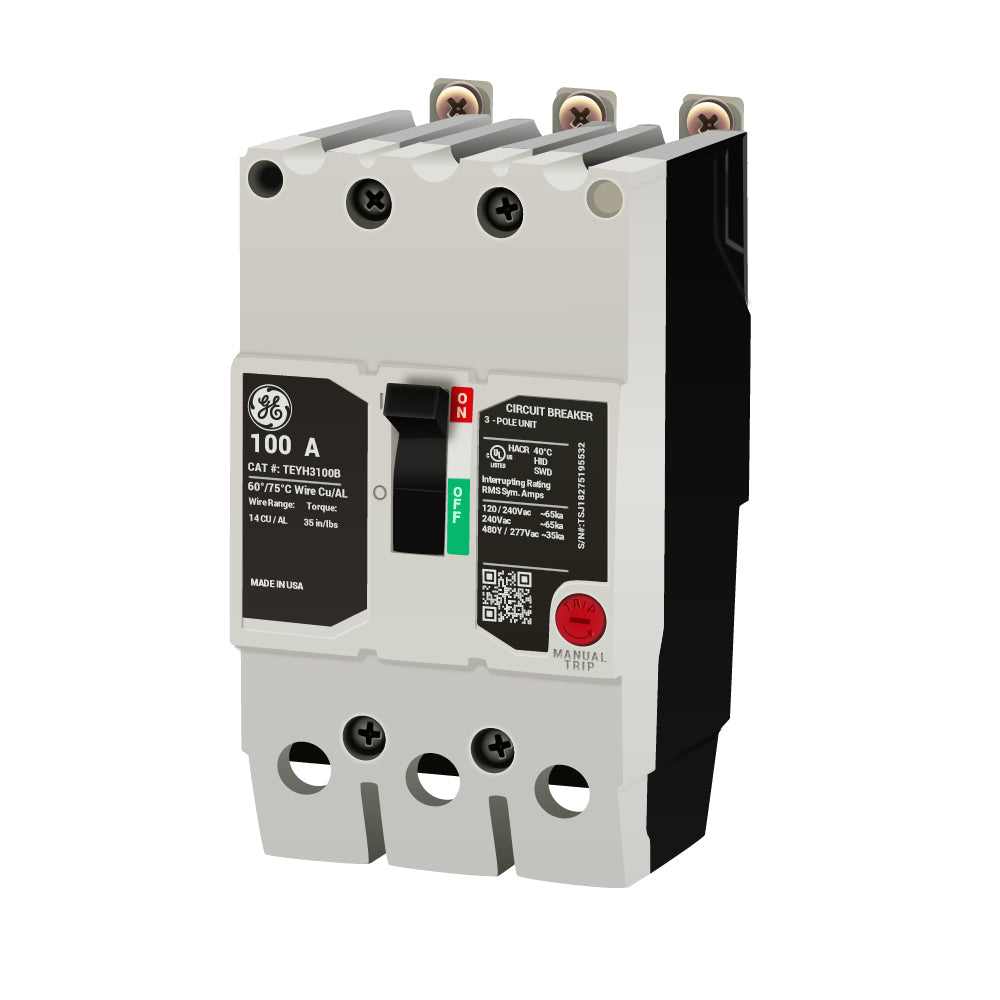

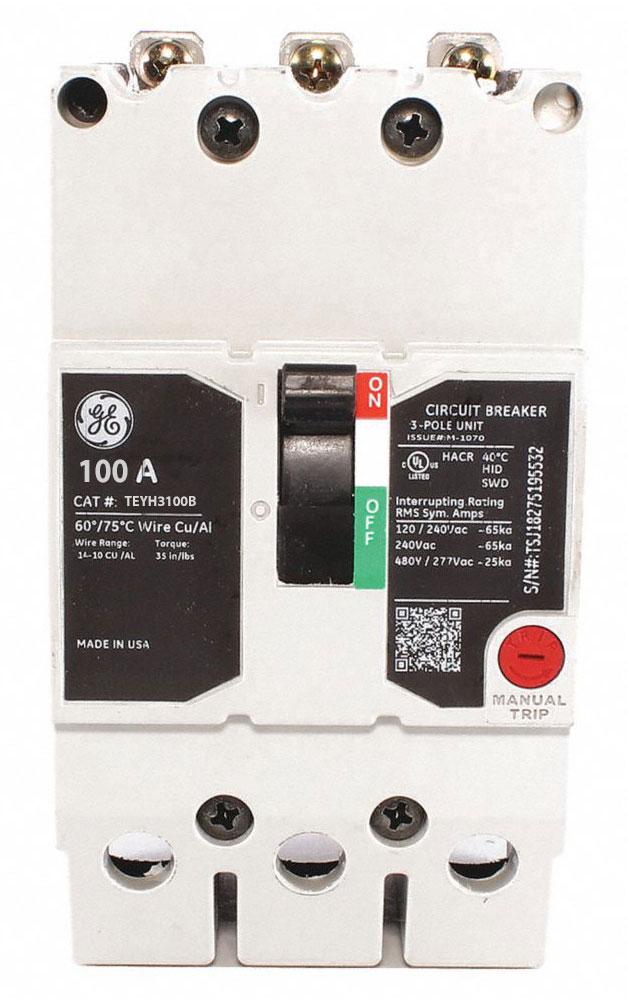

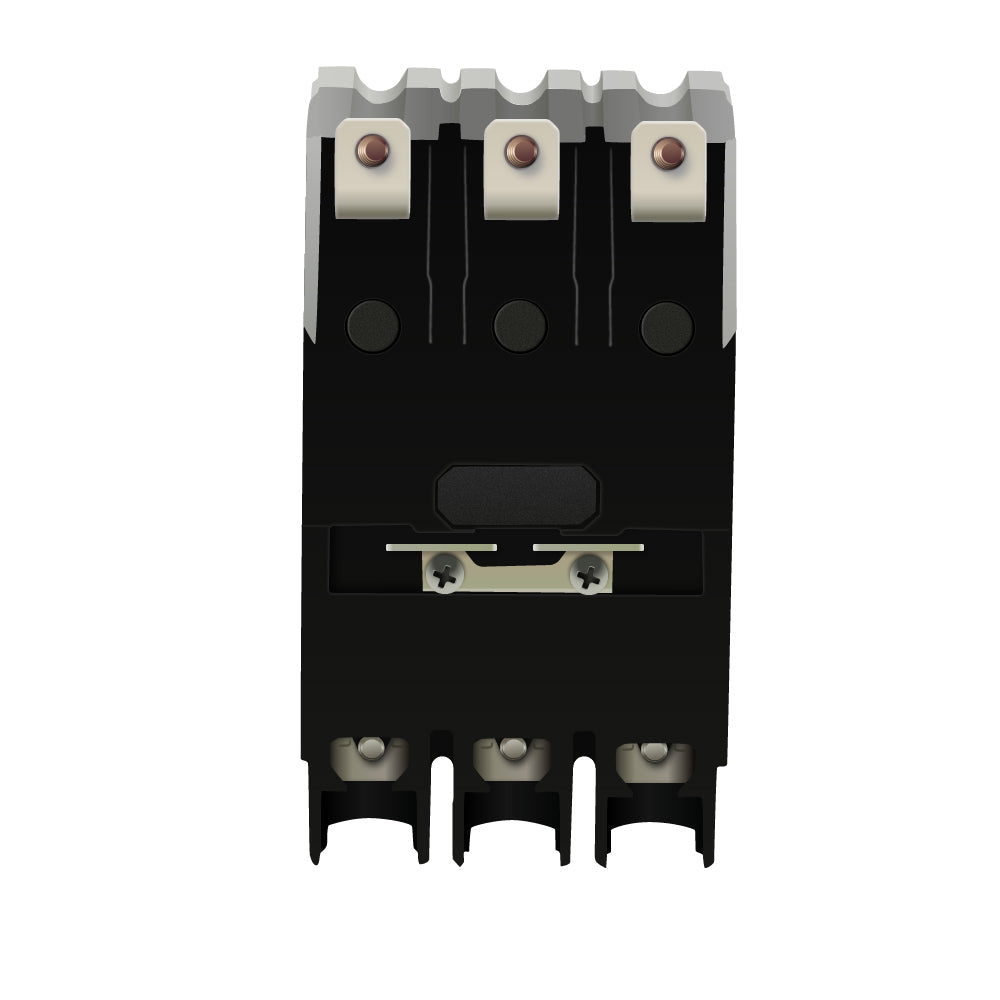

TEYH3100B - General Electric 3-Pole 100A 480Y/277V Bolt-On Circuit Breaker 35kA Interrupt Rating

Save $814.03
SKU: TEYH3100B-New

Condition: New
Price:
Sale price$538.97 Regular price$1,353.00
Stock:
1 in stock
Limited availability — we'll confirm stock immediately after your order.

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

Description

TEYH3100B


TEYH3100B is a General Electric 3-pole, 100 amp bolt-on circuit breaker designed for 480Y/277 VAC systems with a 35 kA interrupting rating.This TEYH series breaker features a compact frame, thermal magnetic trip unit, and is suitable for panelboard mounting. It provides reliable protection with fixed long-time and instantaneous trip functions and supports reverse feed applications. The breaker is UL listed under file E11592 and supports wire ranges from #4 to 2/0 copper or aluminum.
    Key Specifications
    • Amperage: 100 A
    • Voltage: 480Y/277 VAC
    • Poles: 3
    • Mounting Type: Bolt-On Panelboard
    • Interrupt Rating: 35 kA at 480 VAC
    • Frame Type: TEYH
    • Trip Unit: Thermal Magnetic (LI)
    • UL Listed: E11592
    • Wire Range: #4 - 2/0 Cu/Al
    • Suitable for Reverse Feed: Yes
    • Fixed Long-Time and Instantaneous Trip
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYH3100B
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYH Series
  • Type : TEYH
  • Voltage : 480
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 35kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 078316446225
  • GTIN : 00783164462234
  • Country of Origin : United States
  • Weight : 2 lb
  • Panel Type : GE AS Lighting Panels
  • Standards : UL
