TEYF260 - General Electric 60A 2 Pole Molded Case Circuit Breaker 277/480V AC Bolt-On Thermal Magnetic

SKU: TEYF260-New
Condition: New
Price:
$427.02
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

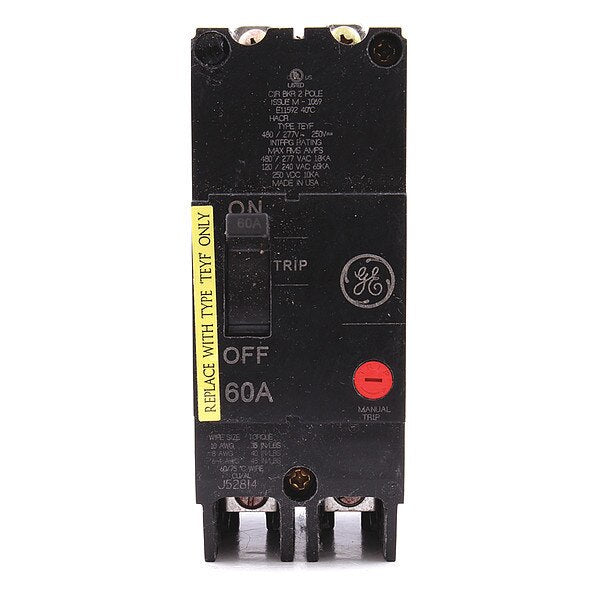

TEYF260 - General Electric Bolt-on Panelboard 480V 60A 2 pole circuit breaker 18kA@480V - Essential Electric Supply

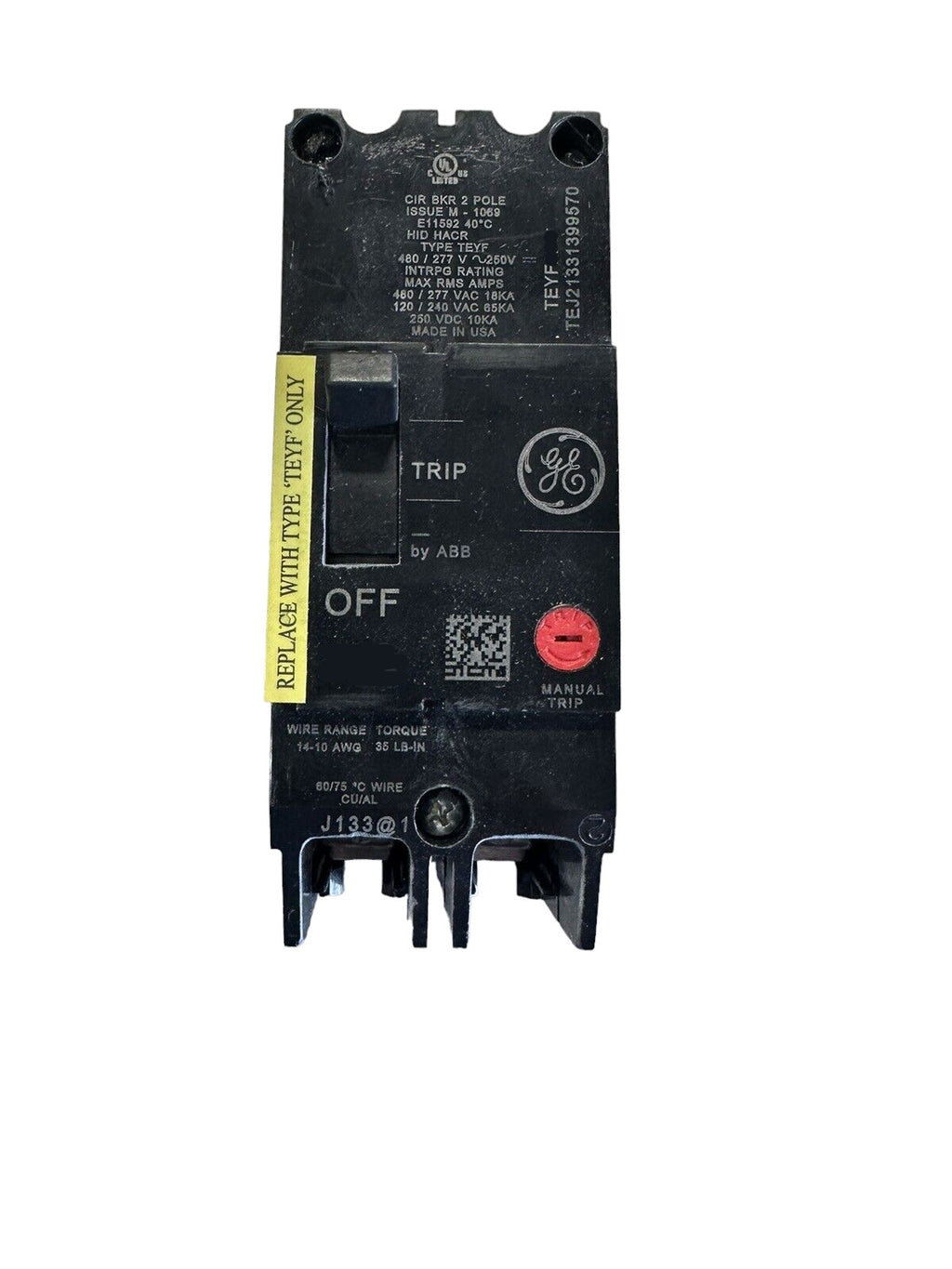

TEYF260 - General Electric 60A 2 Pole Molded Case Circuit Breaker 277/480V AC Bolt-On Thermal Magnetic - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYF260 - General Electric Bolt-on Panelboard 480V 60A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
TEYF260 - General Electric 60A 2 Pole Molded Case Circuit Breaker 277/480V AC Bolt-On Thermal Magnetic - Essential Electric Supply

Description

TEYF260


TEYF260 is a 2 pole, 60 amp molded case circuit breaker from General Electric designed for 277/480V AC applications with bolt-on mounting.This General Electric TEYF260 circuit breaker features a thermal magnetic trip unit with a fixed instantaneous trip, suitable for use in GE AE lighting panels. It has a maximum interrupting rating of 18kA at 277/480V AC and supports a DC voltage rating of 250V DC. The breaker uses lug-type terminal connections and meets CSA and UL certifications. Its frame size is 125A/TEY, with dimensions approximately 5.07 inches in height, 2 inches in width, and 3 inches in depth.
    Key Specifications
    • Amperage: 60A
    • Voltage Rating: 277/480V AC
    • Number of Poles: 2
    • Mounting Type: Bolt-On Panelboard
    • Interrupt Rating: 18kA at 277/480V AC
    • Trip Unit: Thermal Magnetic, Fixed Instantaneous
    • Frame Size: 125A/TEY
    • Terminal Connection: Lug
    • DC Voltage Rating: 250V DC
    • Certifications: CSA, UL
    • Phase: Single
    • Phase Connection: ABC
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: TEYF260
    • Manufacturer : General Electric
    • Brand : General Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : TEYF Series
    • Type : TEYF
    • Voltage : 480
    • Amperage : 60
    • Phase : 1
    • Poles : 2
    • AIC rating : 18kA@480V
    • Connection : Bolt-On
    • Functions : Long Time and Instantaneous Trip
    • Terminal Connection : Lug
    • Frame Size : 125A/TEY
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
    • Breaker Type : Standard
    • Protection : Thermal Magnetic
    • Phase Connection : ABC

    Product Data

    • UPC : 783164388428
    • GTIN : 00783164388428
    • Country of Origin : United States
    • Dimensions : 2 in x 5-1/4 in
    • Weight : 1
    • Panel Type : GE AE Lighting Panels
    • Standards : CSA, UL
    • Certification : CSA, UL
    • Wire Size : AWG 10 to AWG 4, Cu/Al
