TEYF250 - General Electric 50A 2 Pole Bolt-On Circuit Breaker 277/480V AC 18kA

Save $210.15
SKU: TEYF250-New
Condition: New
Price:
$293.85 $504.00
Stock:
Low inventory, please call for stock check

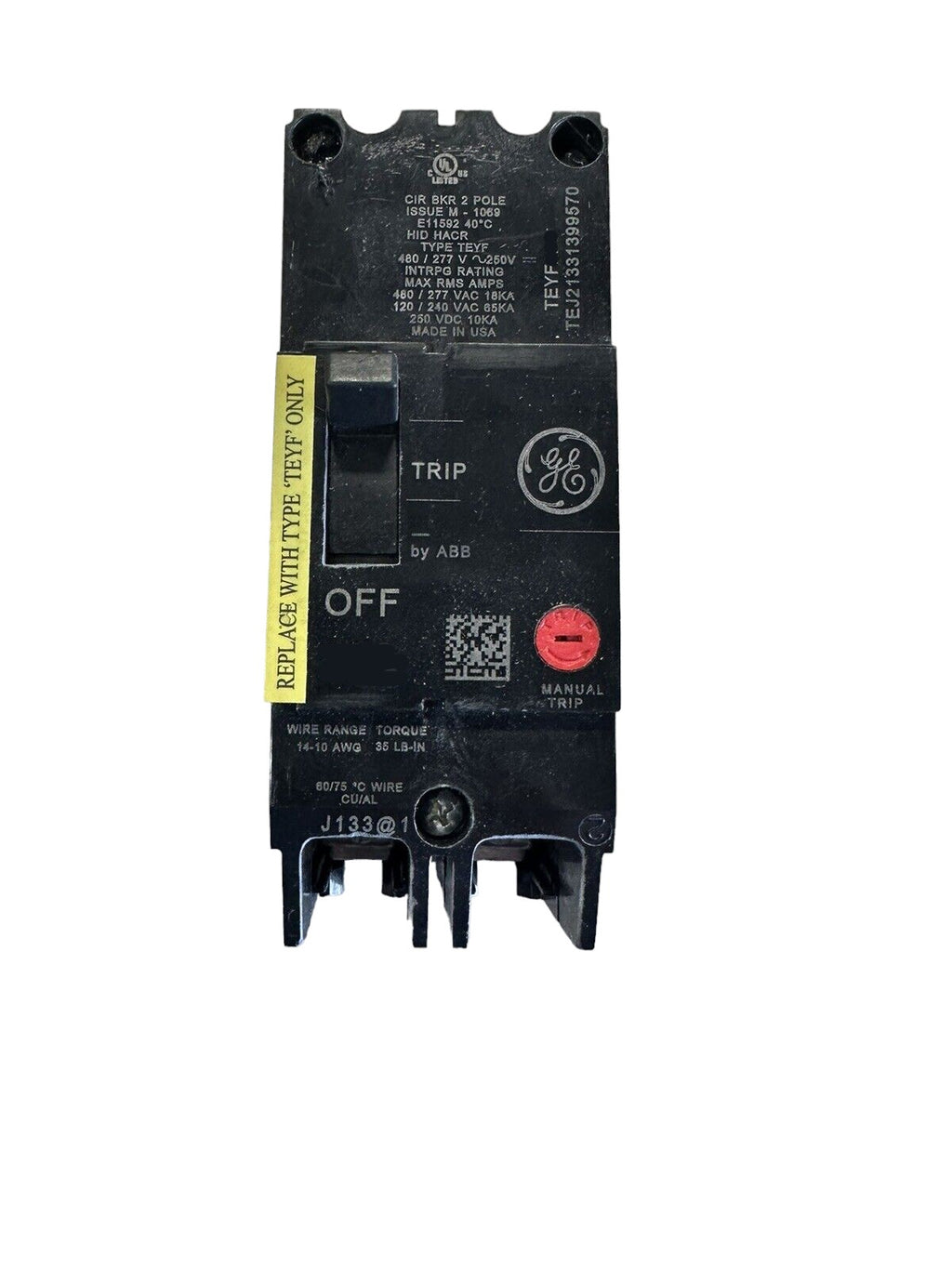

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

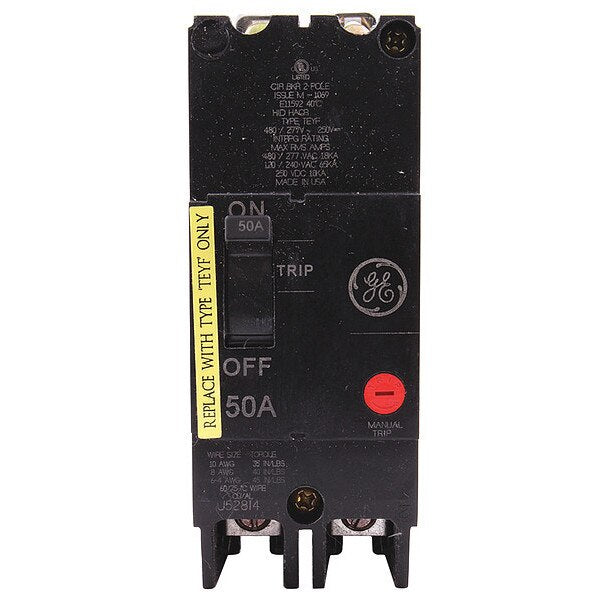

TEYF250 - General Electric Bolt-on Panelboard 480V 50A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
TEYF250 - General Electric 50A 2 Pole Bolt-On Circuit Breaker 277/480V AC 18kA - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYF250 - General Electric Bolt-on Panelboard 480V 50A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
TEYF250 - General Electric 50A 2 Pole Bolt-On Circuit Breaker 277/480V AC 18kA - Essential Electric Supply

Description

TEYF250


TEYF250 is a General Electric 2 pole, 50A, 277/480V AC molded case circuit breaker designed for use in lighting panels and commercial applications. This TEYF series breaker features a bolt-on mounting style, thermal magnetic trip unit, and a 18kA interrupt rating at 277/480V AC. This compact breaker is ideal for GE AE lighting panels and provides reliable protection for electrical circuits. The TEYF250 is UL and CSA listed, ensuring compliance with industry standards. Its fixed instantaneous trip and lug terminal connections make installation straightforward and secure.
  • Part Number: TEYF250
  • Manufacturer: General Electric
  • Series: TEYF
  • Frame Size: 125A/TEY
  • Amperage: 50A
  • Number of Poles: 2
  • AC Voltage Rating: 277/480V AC
  • DC Voltage Rating: 250V DC
  • Interrupt Rating: 18kA at 277/480V AC
  • Mounting Style: Bolt On
  • Phase: Single
  • Standards: UL, CSA
  • Terminal Connection: Lug
  • Phase Connection: ABC
  • Min. Wire Size: 10 AWG
  • Max. Wire Size: 4 AWG
  • Height: 5.07 in
  • Width: 2 in
  • Depth: 3 in
  • Actuator: Toggle
  • Trip Type: Thermal Magnetic
  • Instantaneous Trip: Fixed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYF250
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYF Series
  • Type : TEYF
  • Voltage : 480
  • Amperage : 50
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164388428
  • GTIN : 00783164388411
  • Country of Origin : United States
  • Dimensions : 2 in x 5-1/4 in
  • Weight : 1
  • Panel Type : GE AE Lighting Panels
  • Standards : CSA, UL
  • Certification : CSA, UL
  • Wire Size : AWG 10 to AWG 4, Cu/Al
