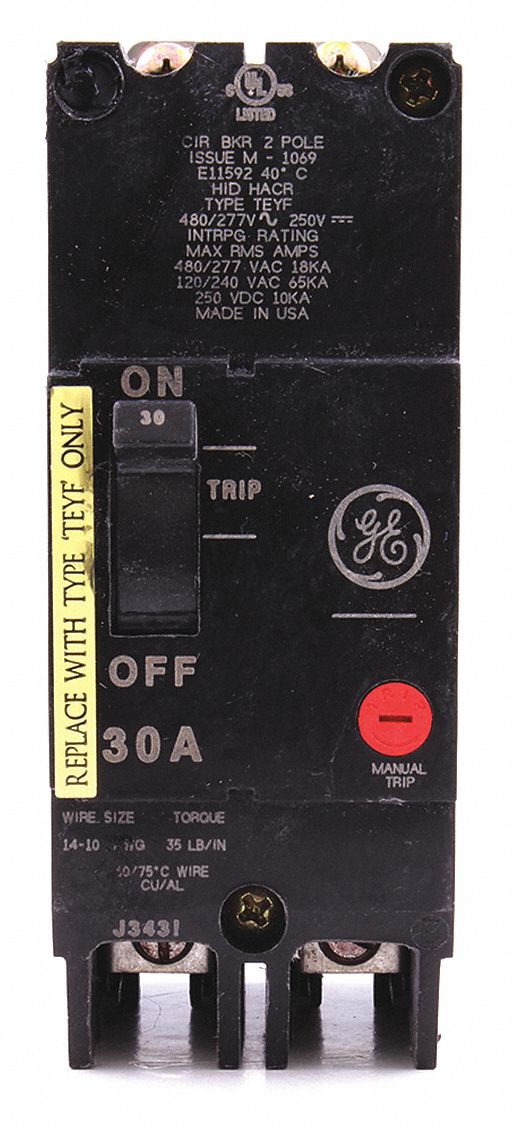

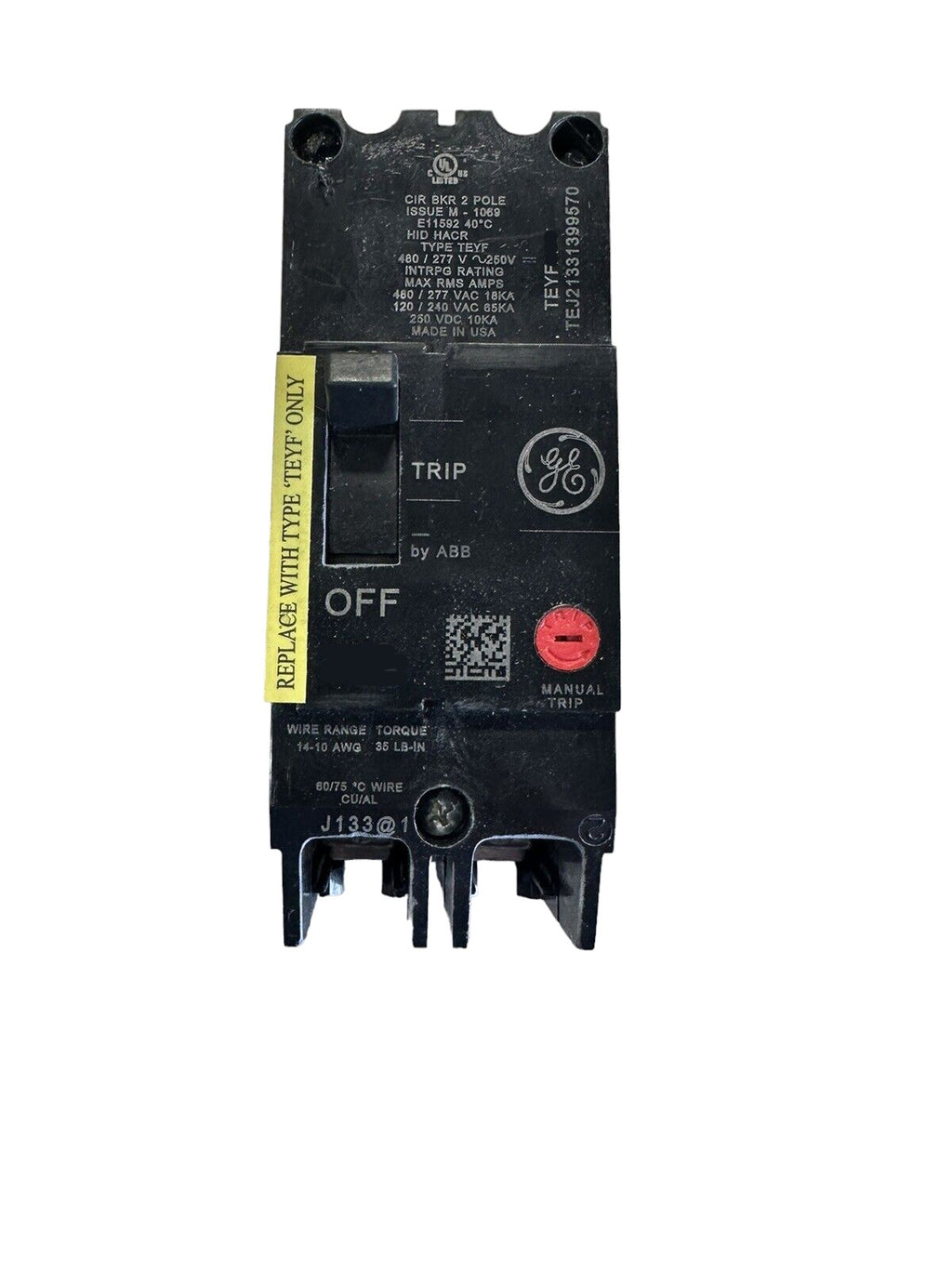

TEYF230 - General Electric 30A 277/480V 2 Pole Thermal Magnetic Circuit Breaker TEYF Frame Bolt-On

Save $82.33
SKU: TEYF230-New
Condition: New
Price:
$421.67 $504.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

TEYF230 - General Electric Bolt-on Panelboard 480V 30A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
TEYF230 - General Electric 30A 277/480V 2 Pole Thermal Magnetic Circuit Breaker TEYF Frame Bolt-On - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYF230 - General Electric Bolt-on Panelboard 480V 30A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
TEYF230 - General Electric 30A 277/480V 2 Pole Thermal Magnetic Circuit Breaker TEYF Frame Bolt-On - Essential Electric Supply

Description

TEYF230


TEYF230 is a General Electric 2 pole thermal magnetic molded case circuit breaker rated for 30 amps and 277/480 volts AC with a TEYF frame and bolt-on mounting.This circuit breaker features long time and instantaneous trip functions with an interrupt rating of 18kA at 480V. It is designed for use in residential, commercial, and industrial applications and is compatible with current and legacy GE circuit breaker panels.
  • Amperage: 30A
  • Voltage: 277/480VAC
  • Poles: 2
  • Frame Type: TEYF
  • Mounting Type: Bolt-On
  • Interrupt Rating: 18kA @ 480V
  • Trip Unit: Thermal Magnetic
  • Application: Residential, Commercial, Industrial
  • Compatible with current and legacy GE breakers
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYF230
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYF Series
  • Type : TEYF
  • Voltage : 480
  • Amperage : 30
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164388428
  • GTIN : 00783164388374
  • Country of Origin : United States
  • Dimensions : 2 in x 5-1/4 in
  • Weight : 1
  • Panel Type : GE AE Lighting Panels
  • Standards : CSA, UL
  • Certification : CSA, UL
  • Wire Size : AWG 14 to AWG 10, Cu/Al
