TEYD3125B - General Electric 125A 3 Pole Bolt-On Circuit Breaker 277/480VAC 25kAIC

Save $1,630.54
SKU: TEYD3125B-New
Condition: New
Price:
$1,162.46 $2,793.00
Stock:
4 in stock
Limited availability — we'll confirm stock immediately after your order.

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

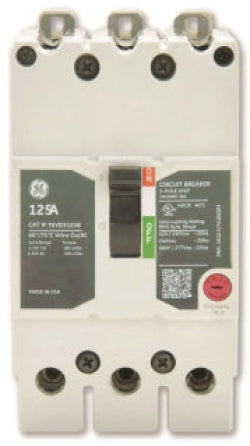

TEYD3125B - General Electric Bolt-On 125 Amp 3 Pole Circuit Breaker - Essential Electric Supply

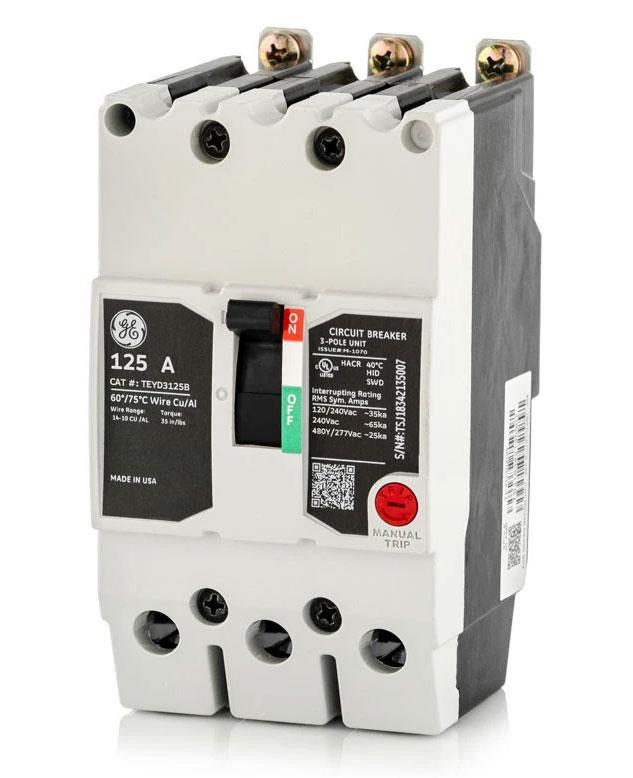

TEYD3125B - General Electric 125A 3 Pole Bolt-On Circuit Breaker 277/480VAC 25kAIC - Essential Electric Supply

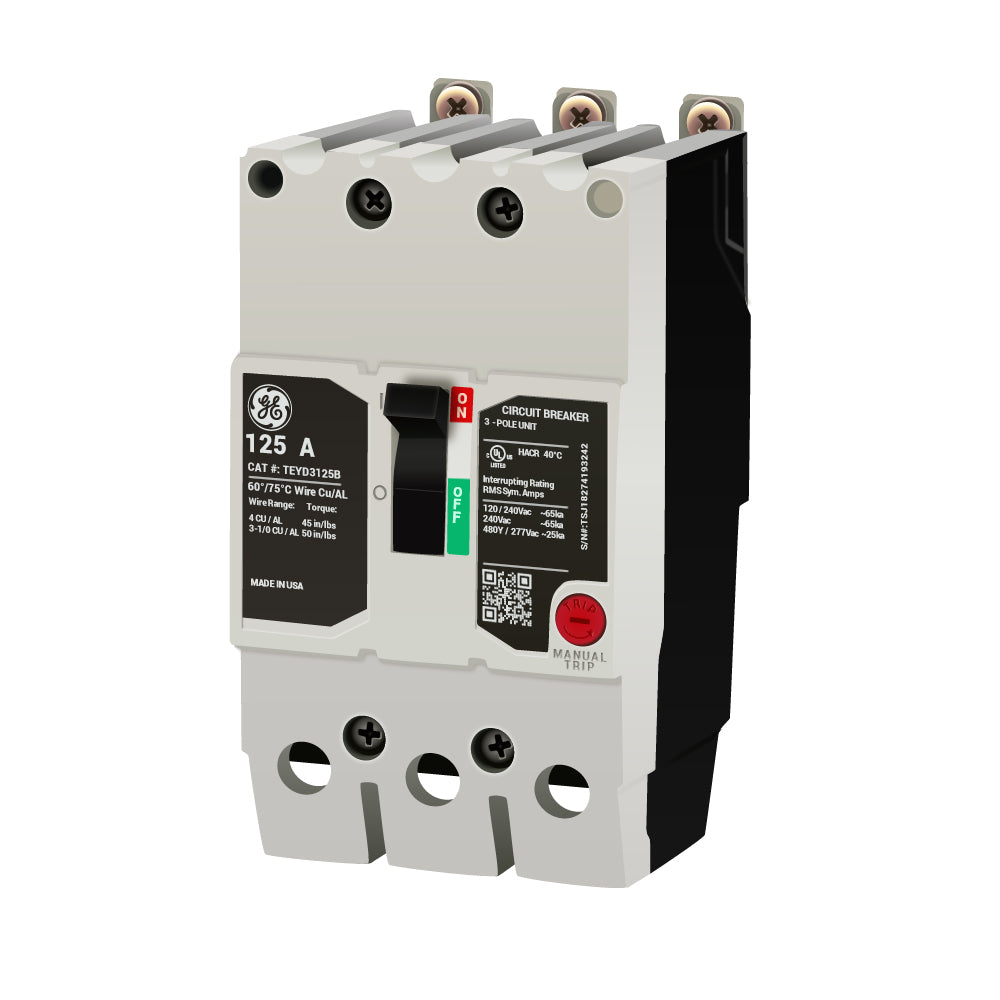

TEYD3125B - General Electric 125A 3 Pole Bolt-On Circuit Breaker 277/480VAC 25kAIC - Essential Electric Supply

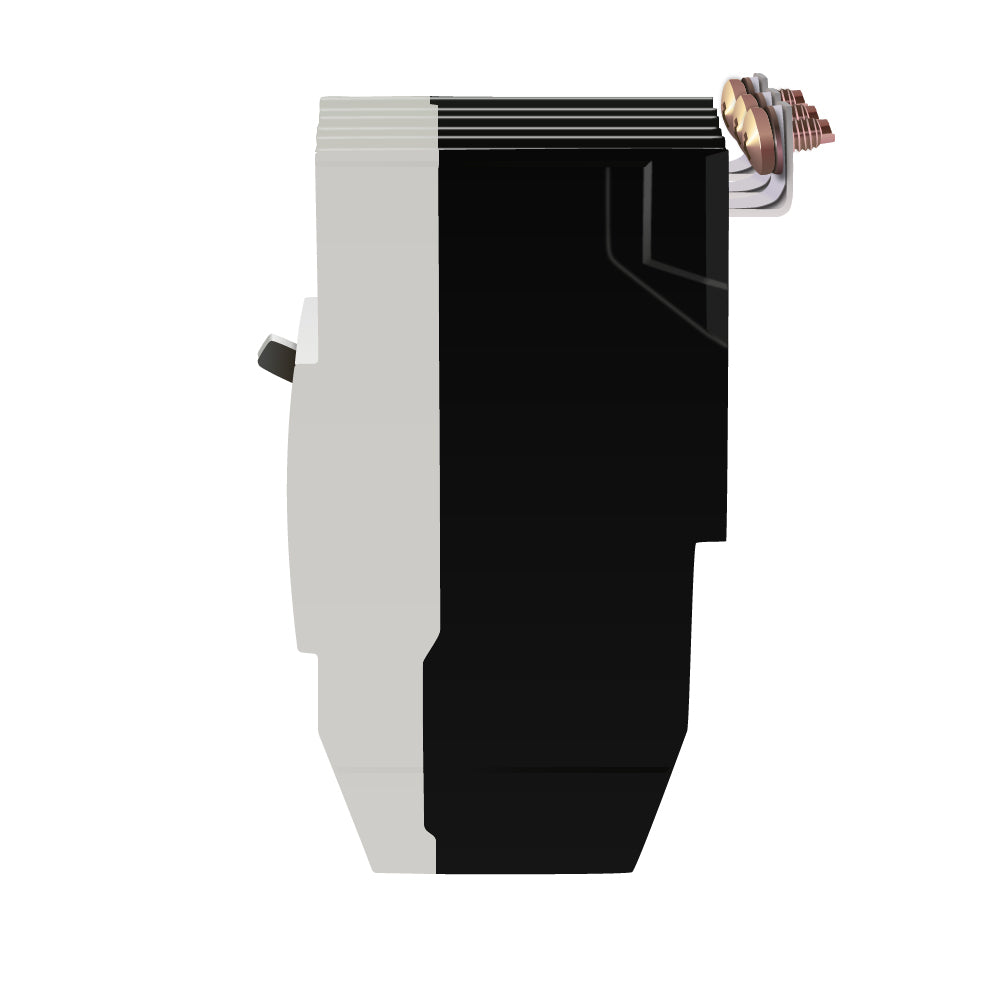

TEYD3125B - General Electric 125A 3 Pole Bolt-On Circuit Breaker 277/480VAC 25kAIC - Essential Electric Supply

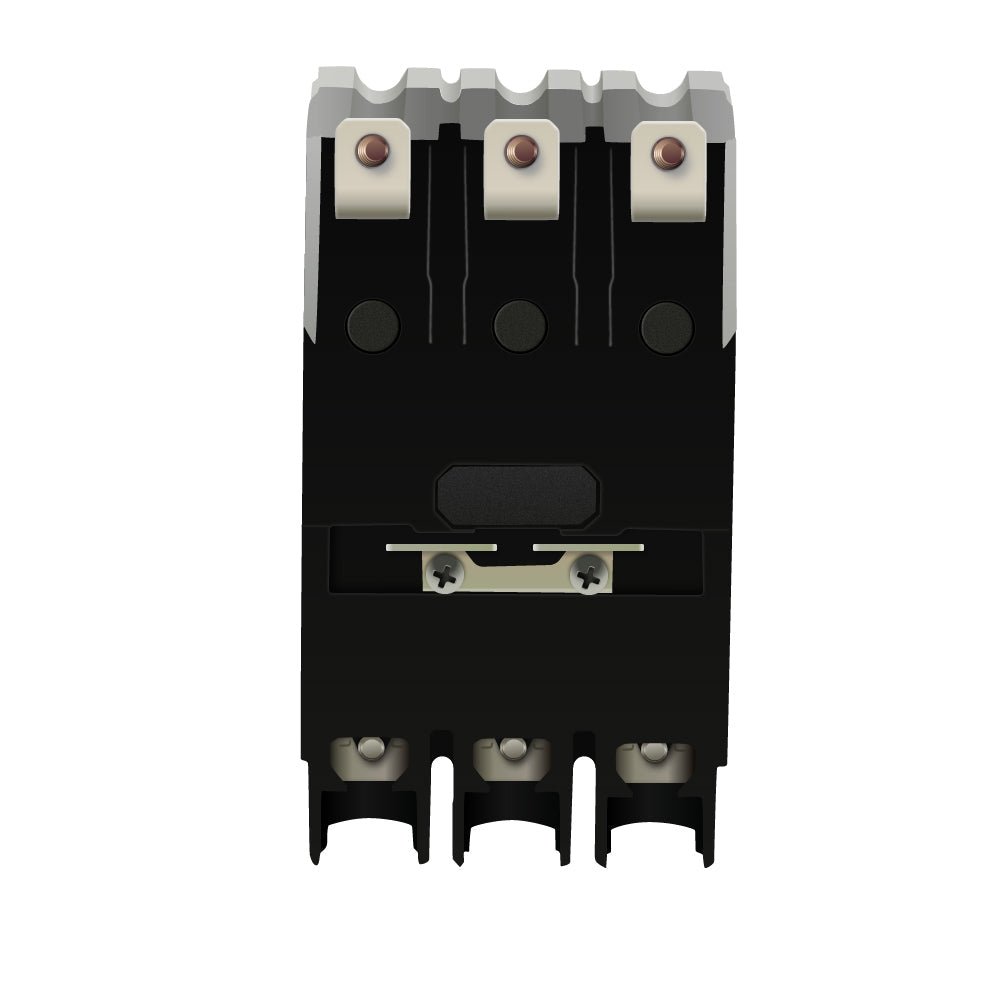

TEYD3125B - General Electric 125A 3 Pole Bolt-On Circuit Breaker 277/480VAC 25kAIC - Essential Electric Supply

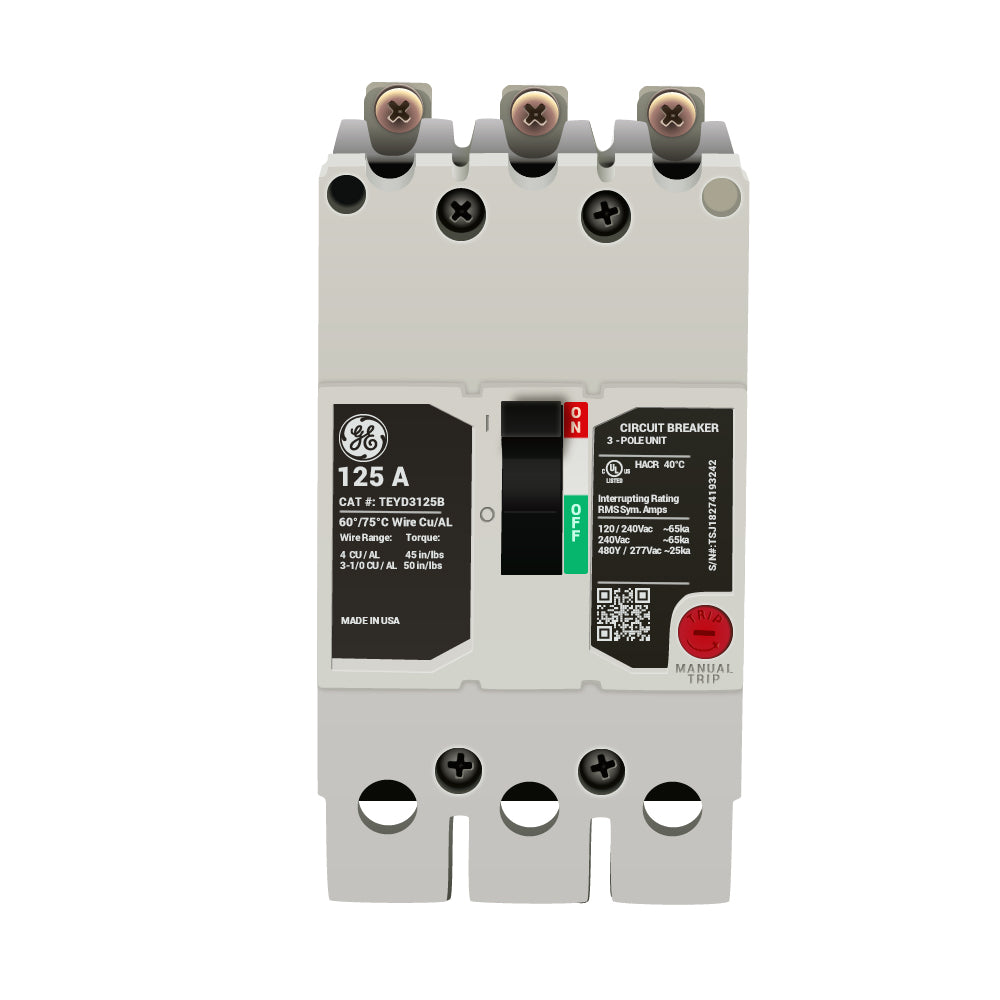

TEYD3125B - General Electric 125A 3 Pole Bolt-On Circuit Breaker 277/480VAC 25kAIC - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYD3125B - General Electric Bolt-On 125 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEYD3125B - General Electric 125A 3 Pole Bolt-On Circuit Breaker 277/480VAC 25kAIC - Essential Electric Supply
TEYD3125B - General Electric 125A 3 Pole Bolt-On Circuit Breaker 277/480VAC 25kAIC - Essential Electric Supply
TEYD3125B - General Electric 125A 3 Pole Bolt-On Circuit Breaker 277/480VAC 25kAIC - Essential Electric Supply
TEYD3125B - General Electric 125A 3 Pole Bolt-On Circuit Breaker 277/480VAC 25kAIC - Essential Electric Supply
TEYD3125B - General Electric 125A 3 Pole Bolt-On Circuit Breaker 277/480VAC 25kAIC - Essential Electric Supply

Description

TEYD3125B


TEYD3125B is a General Electric 3 pole, 125A, 277/480VAC molded case circuit breaker with a 25kAIC interrupting rating at 277/480VAC, designed for use in lighting panels and industrial applications. This TEYD series breaker features a bolt-on mounting type, thermal magnetic protection, and includes long-time and instantaneous trip functions. It is UL listed and suitable for use in grounded 480Y/277 Vac systems. The breaker is compact, one-inch wide per pole, and features a toggle actuator for easy operation.
  • Manufacturer: General Electric
  • Series/Frame: TEYD
  • Amperage: 125A
  • Poles: 3
  • Voltage: 277/480VAC, 250VDC
  • Interrupting Rating: 25kAIC at 277/480VAC
  • Mounting Type: Bolt-On
  • Protection Type: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Actuator Type: Toggle
  • Terminal Connection: Load Side Lug
  • Certification: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYD3125B
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYD Series
  • Type : TEYD
  • Voltage : 480
  • Amperage : 125
  • Phase : 3
  • Poles : 3
  • AIC rating : 25kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164461855
  • GTIN : 00783164461855
  • Country of Origin : United States
  • Dimensions : 3 in x 5-1/4 in
  • Weight : 2 lb
  • Panel Type : GE AS Lighting Panels
  • Standards : UL
  • Certification : UL
