TEYD3080B - General Electric 3 Pole 80A 480V Bolt-On Circuit Breaker TEYD Frame

Save $492.13
SKU: TEYD3080B-New
Condition: New
Price:
$509.87 $1,002.00
Stock:
7 In stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

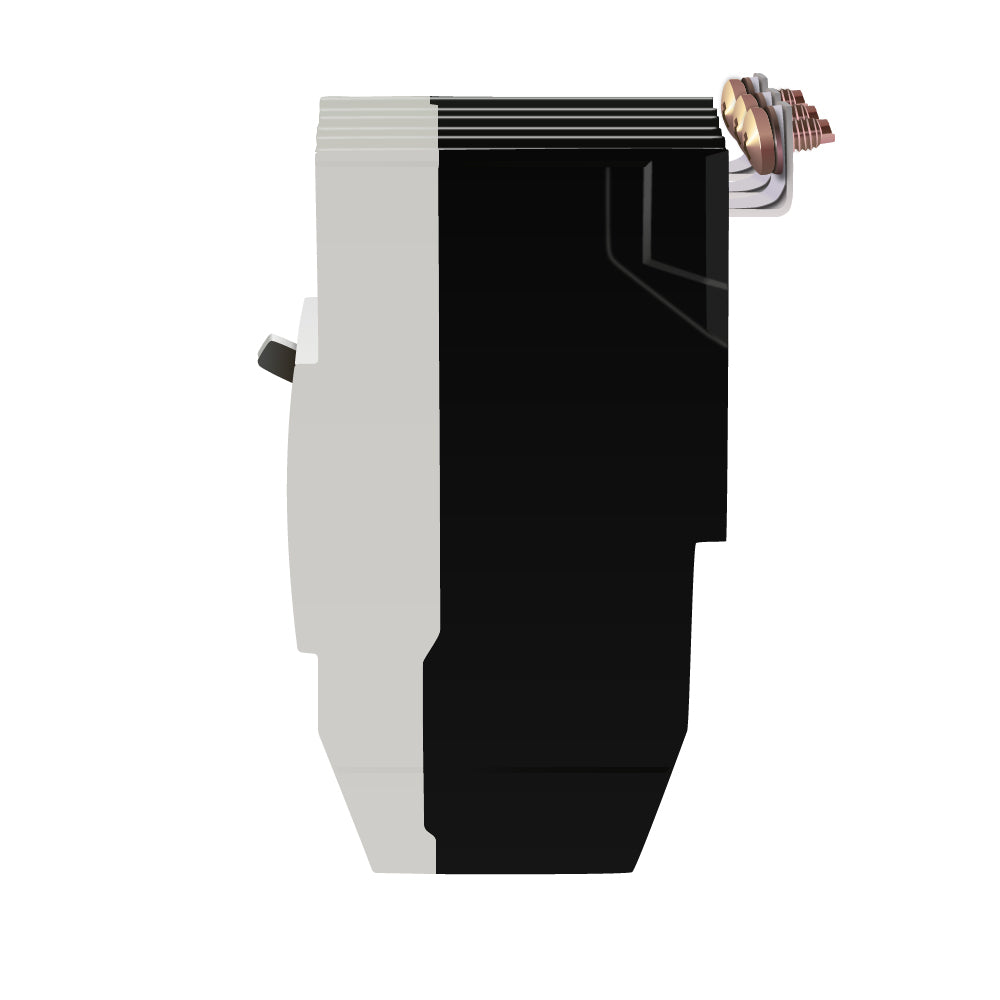

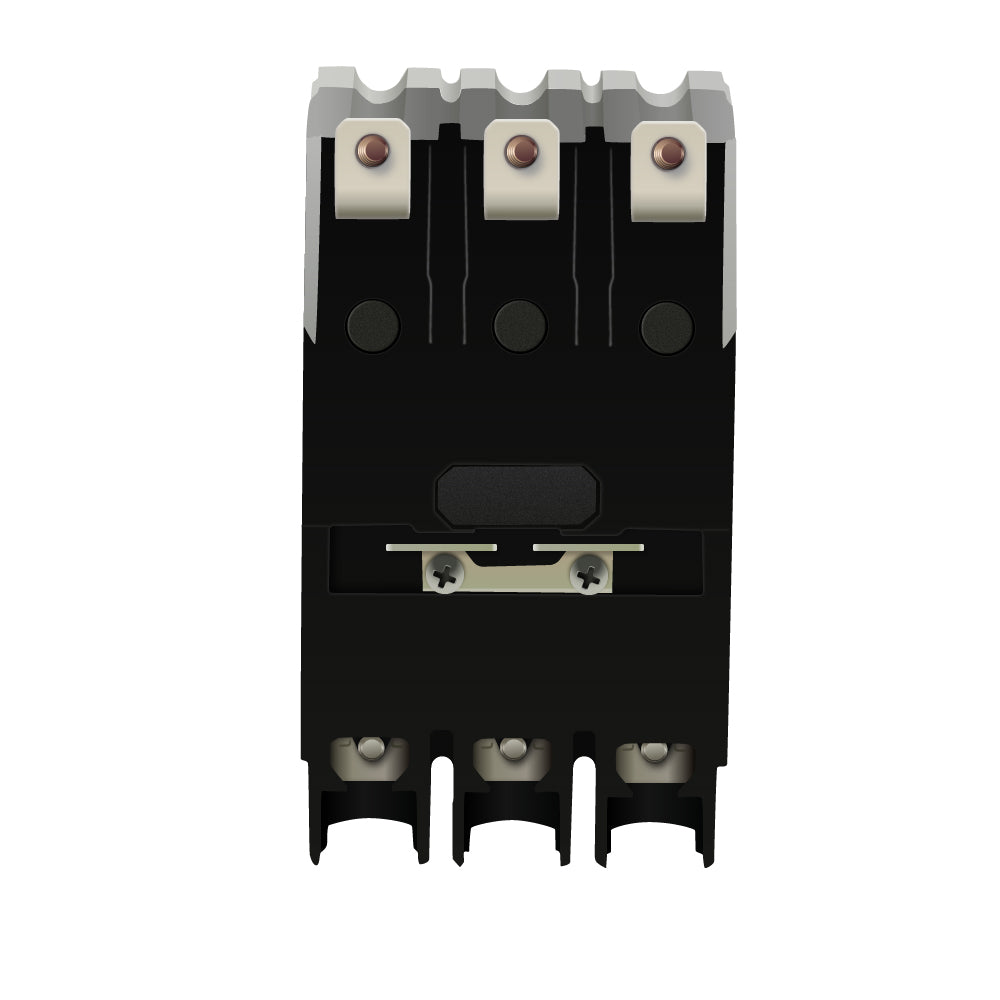

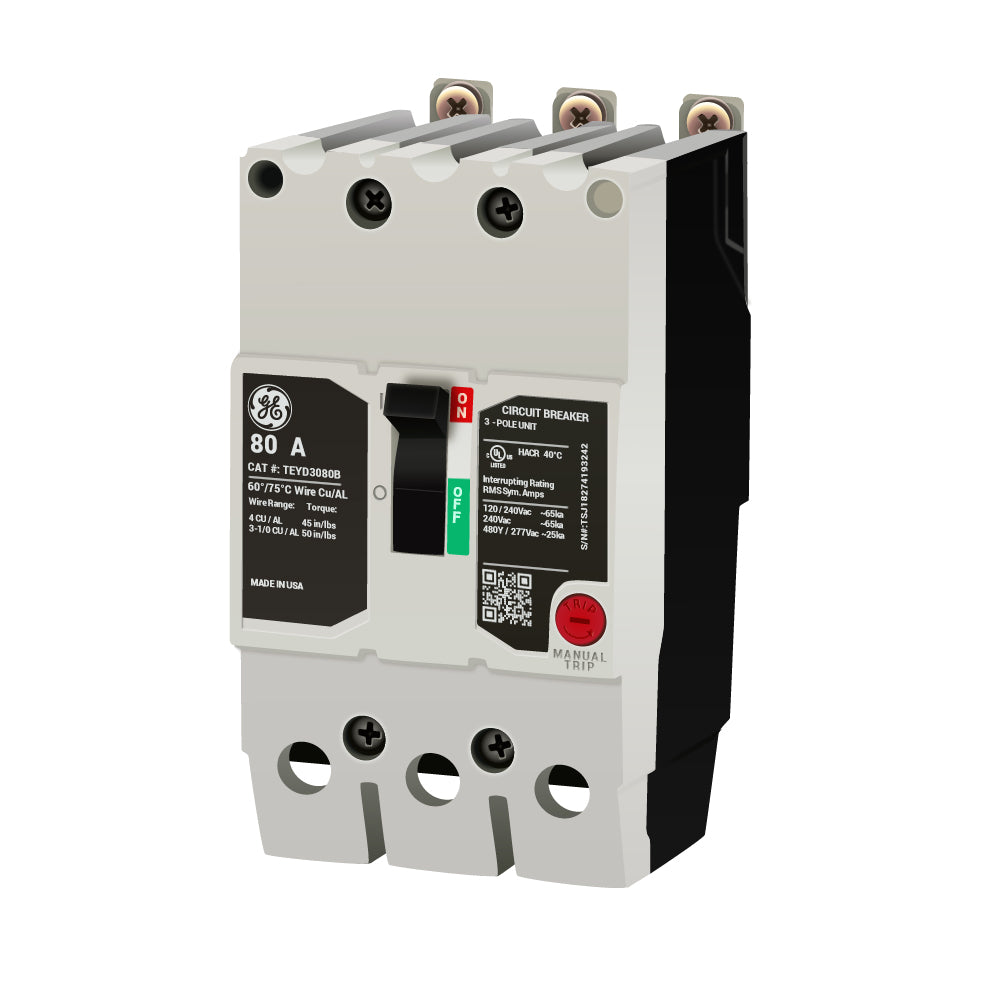

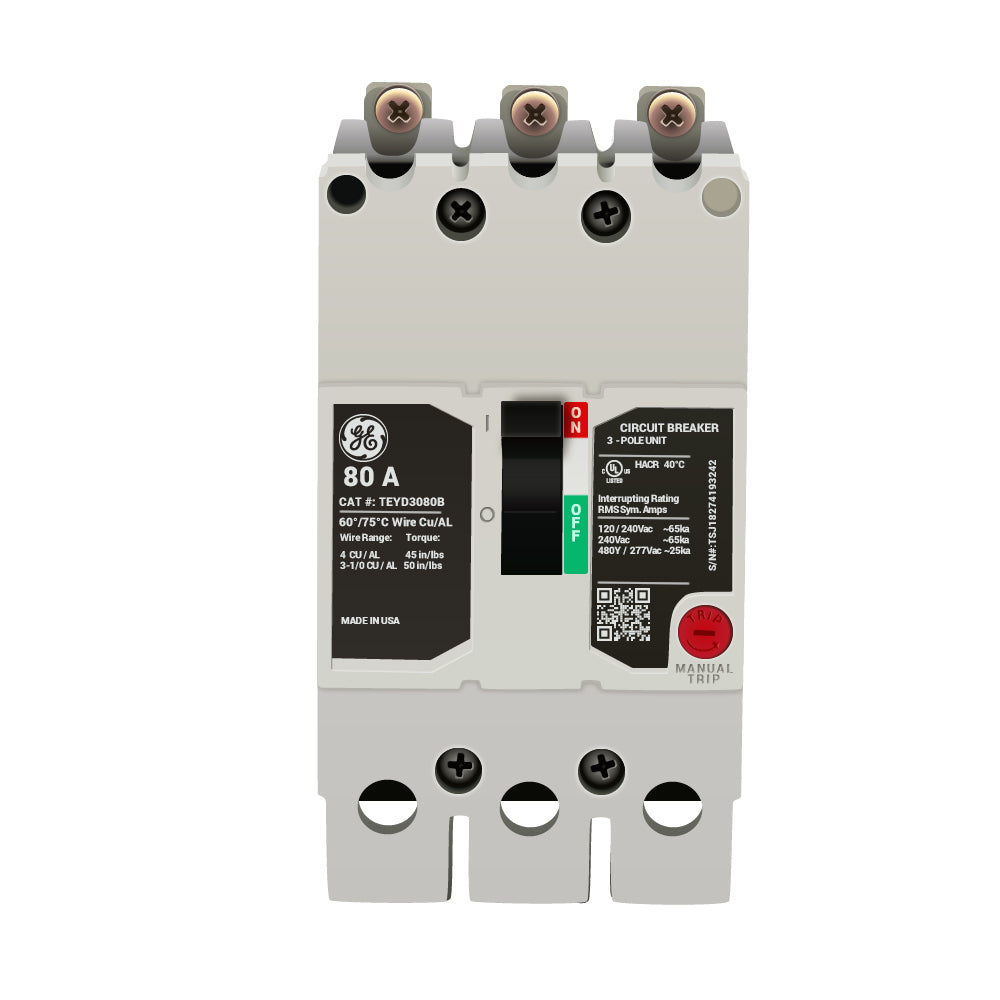

TEYD3080B - General Electric Bolt-On 80 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEYD3080B - General Electric 3 Pole 80A 480V Bolt-On Circuit Breaker TEYD Frame - Essential Electric Supply
TEYD3080B - General Electric 3 Pole 80A 480V Bolt-On Circuit Breaker TEYD Frame - Essential Electric Supply
TEYD3080B - General Electric 3 Pole 80A 480V Bolt-On Circuit Breaker TEYD Frame - Essential Electric Supply
TEYD3080B - General Electric 3 Pole 80A 480V Bolt-On Circuit Breaker TEYD Frame - Essential Electric Supply
TEYD3080B - General Electric 3 Pole 80A 480V Bolt-On Circuit Breaker TEYD Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYD3080B - General Electric Bolt-On 80 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEYD3080B - General Electric 3 Pole 80A 480V Bolt-On Circuit Breaker TEYD Frame - Essential Electric Supply
TEYD3080B - General Electric 3 Pole 80A 480V Bolt-On Circuit Breaker TEYD Frame - Essential Electric Supply
TEYD3080B - General Electric 3 Pole 80A 480V Bolt-On Circuit Breaker TEYD Frame - Essential Electric Supply
TEYD3080B - General Electric 3 Pole 80A 480V Bolt-On Circuit Breaker TEYD Frame - Essential Electric Supply
TEYD3080B - General Electric 3 Pole 80A 480V Bolt-On Circuit Breaker TEYD Frame - Essential Electric Supply

Description

TEYD3080B


TEYD3080B is a General Electric 3 pole, 80 amp circuit breaker designed for bolt-on mounting in panelboards. It features a TEYD frame and is suitable for use in lighting panel applications.This thermal magnetic molded case circuit breaker supports voltages up to 480/277 VAC with a 25kA interrupting rating at 480V. It includes fixed long time and instantaneous trip functions with a non-interchangeable LI trip unit. The breaker is UL listed under file E11592 and supports wire ranges from #4 to 2/0 copper or aluminum.
    Key Specifications
    • Amperage: 80 A
    • Voltage Rating: 480/277 VAC, 120/240 VAC, 250 VDC
    • Poles: 3
    • Mounting Type: Bolt-On
    • Interrupting Rating: 25kA @ 480V, 65kA @ 120/240V
    • Frame Type: TEYD
    • Trip Unit: Fixed LI (Long Time and Instantaneous)
    • Thermal Magnetic Trip
    • UL Listed (File E11592)
    • Wire Range: #4 - 2/0 Cu/Al
    • Suitable for Reverse Feed
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: TEYD3080B
    • Manufacturer : General Electric
    • Brand : General Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : TEYD Series
    • Type : TEYD
    • Voltage : 480
    • Amperage : 80
    • Phase : 3
    • Poles : 3
    • AIC rating : 25kA@480V
    • Connection : Bolt-On
    • Functions : LI - Long-Time and Instantaneous
    • Terminal Connection : Lug
    • Frame Size : 125A/TEY
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
    • Breaker Type : Standard
    • Protection : Thermal Magnetic
    • Phase Connection : ABC

    Product Data

    • UPC : 783164461725
    • GTIN : 00783164461817
    • Country of Origin : United States
    • Dimensions : 3 in x 5-1/4 in
    • Weight : 2 lb
    • Panel Type : GE AS Lighting Panels
    • Standards : UL
    • Certification : UL
