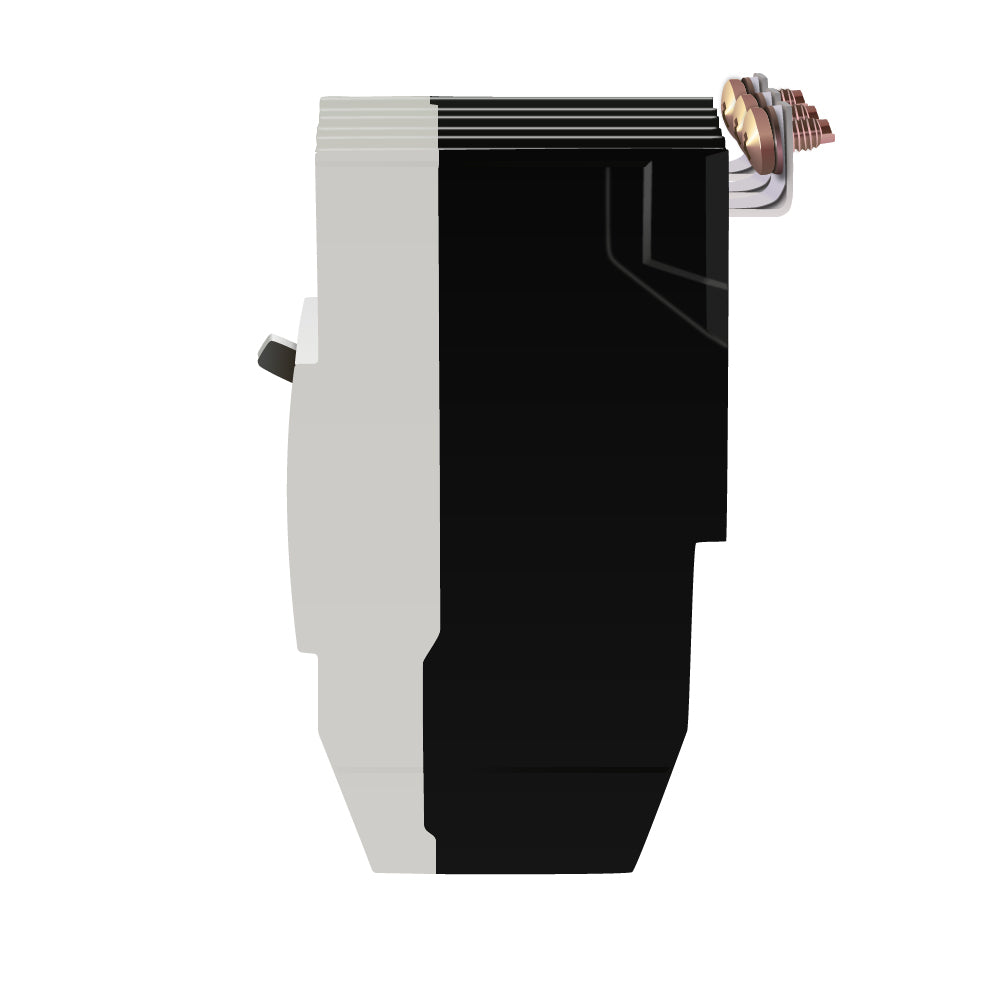

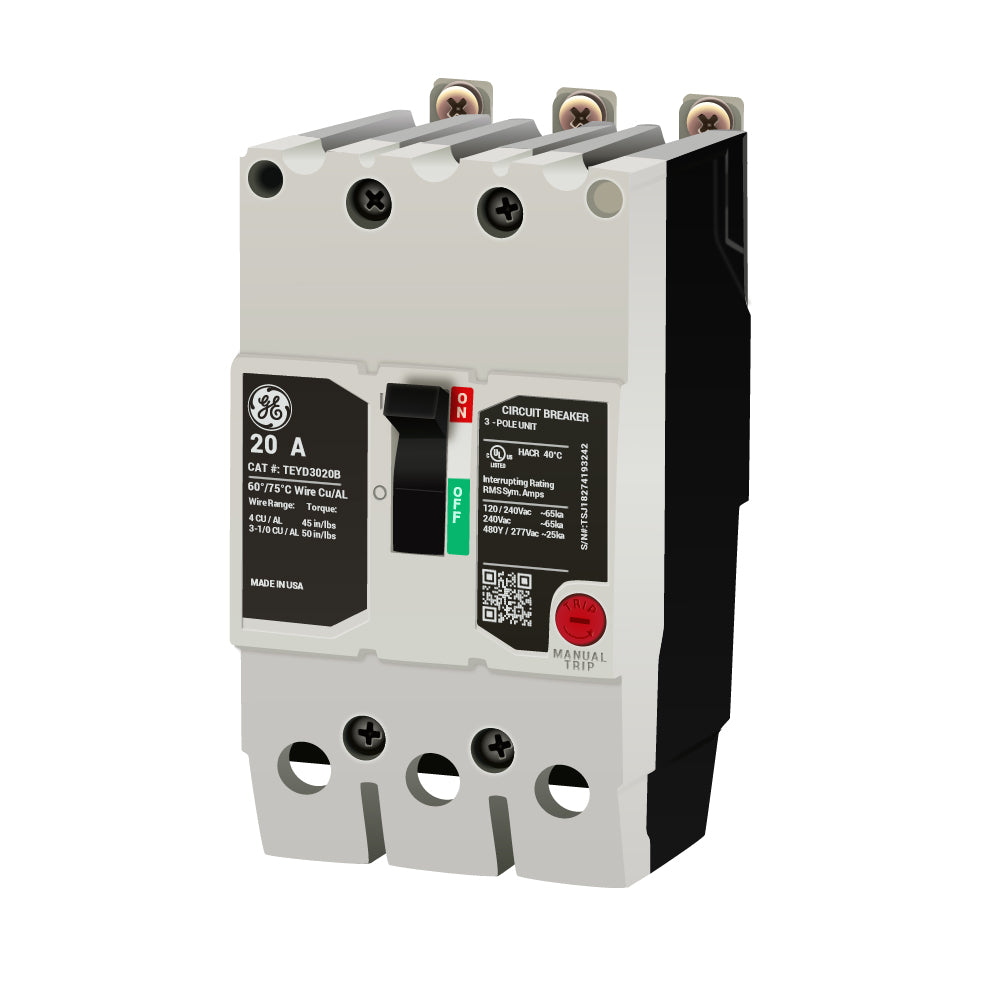

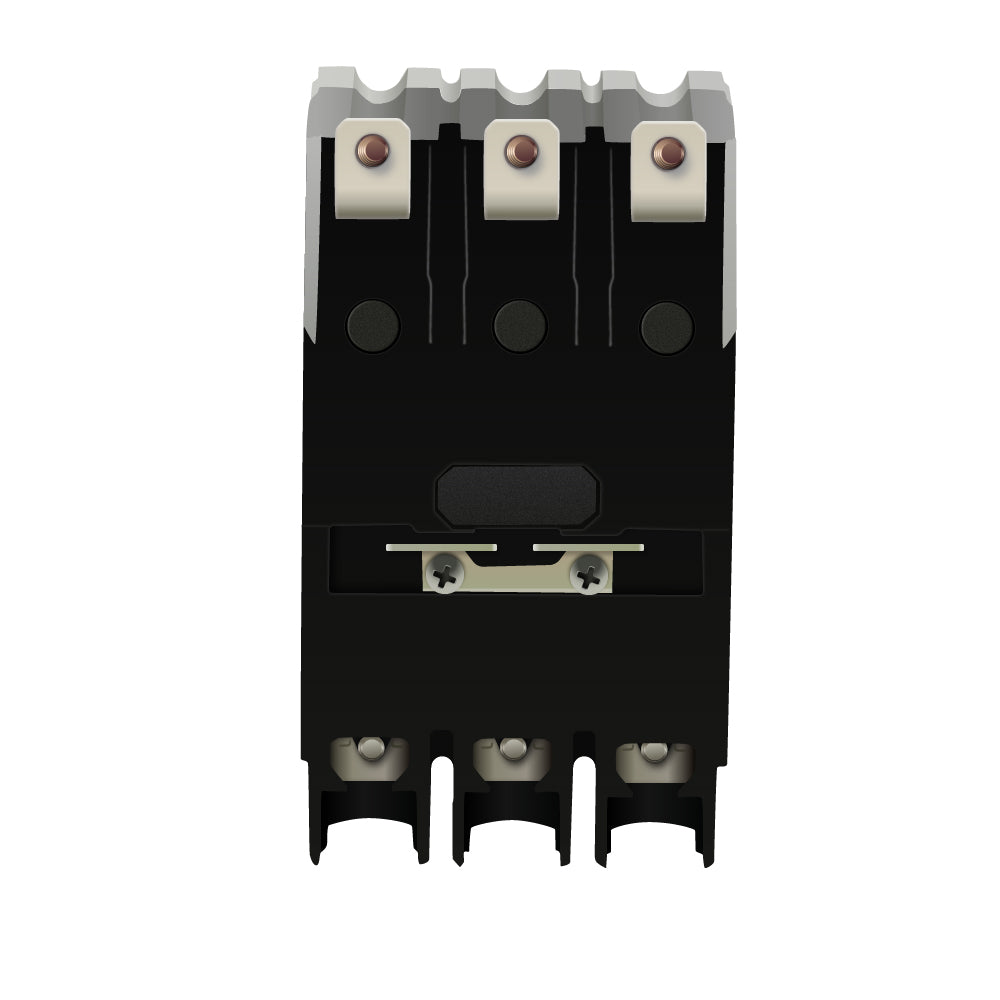

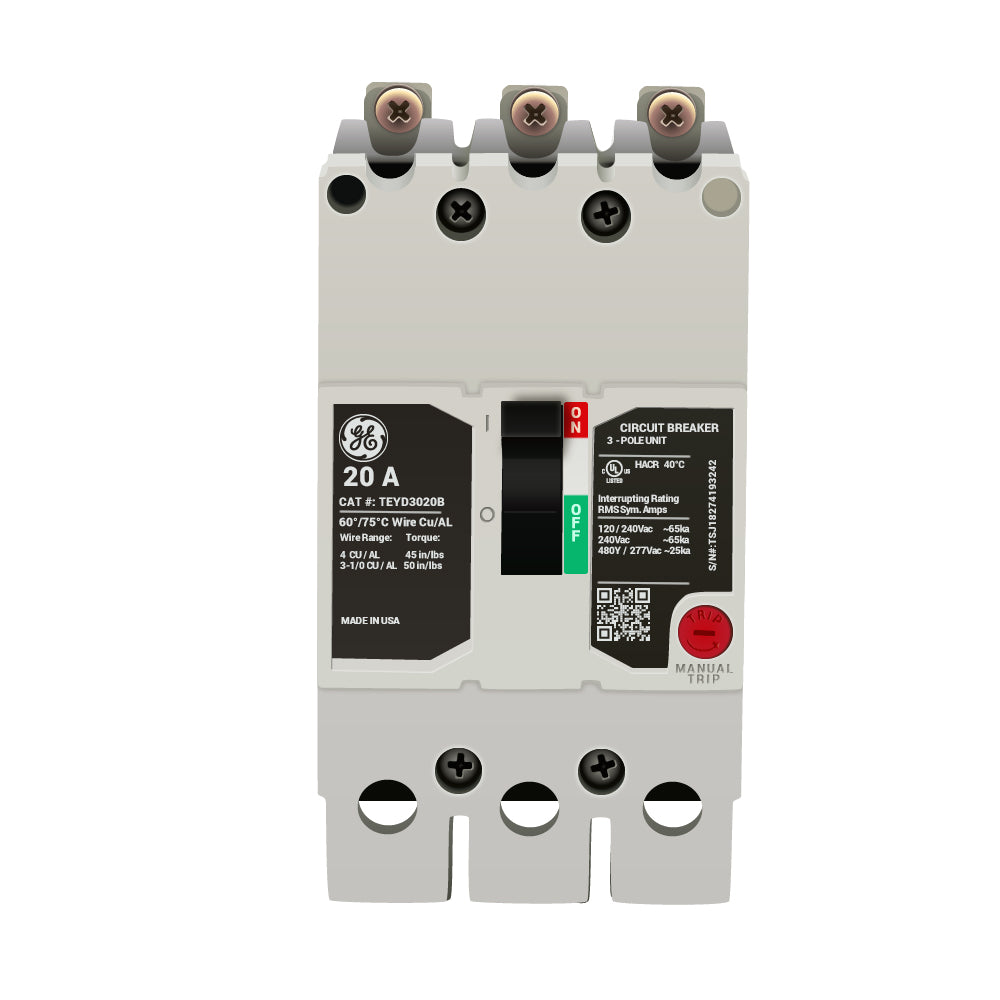

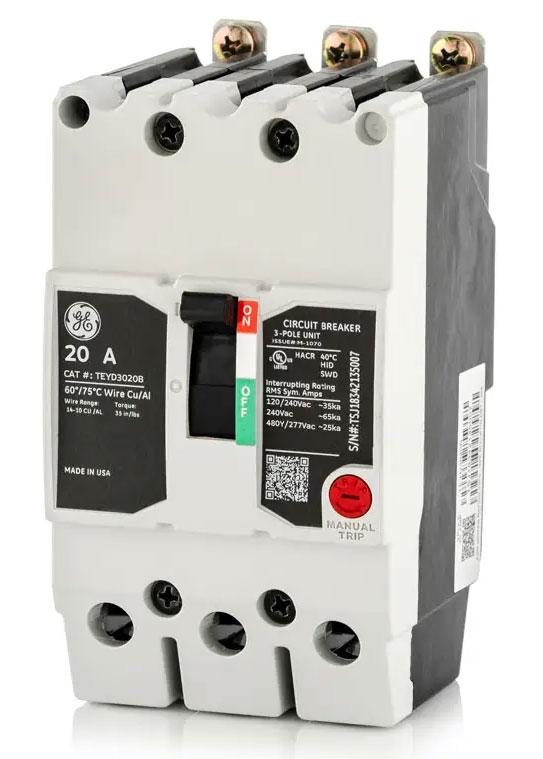

TEYD3020B - General Electric 20A 480Y/277VAC 3-Pole Molded Case Circuit Breaker Bolt-On 25kAIC TEYD Frame

Save $588.92
SKU: TEYD3020B-ReCert
Condition: Re-Certified
Price:
$296.08 $885.00
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.
This ships in 1-2 business days

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

TEYD3020B - General Electric Bolt-On 20 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEYD3020B - General Electric 20A 480Y/277VAC 3-Pole Molded Case Circuit Breaker Bolt-On 25kAIC TEYD Frame - Essential Electric Supply
TEYD3020B - General Electric 20A 480Y/277VAC 3-Pole Molded Case Circuit Breaker Bolt-On 25kAIC TEYD Frame - Essential Electric Supply
TEYD3020B - General Electric 20A 480Y/277VAC 3-Pole Molded Case Circuit Breaker Bolt-On 25kAIC TEYD Frame - Essential Electric Supply
TEYD3020B - General Electric 20A 480Y/277VAC 3-Pole Molded Case Circuit Breaker Bolt-On 25kAIC TEYD Frame - Essential Electric Supply
TEYD3020B - General Electric 20A 480Y/277VAC 3-Pole Molded Case Circuit Breaker Bolt-On 25kAIC TEYD Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYD3020B - General Electric Bolt-On 20 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEYD3020B - General Electric 20A 480Y/277VAC 3-Pole Molded Case Circuit Breaker Bolt-On 25kAIC TEYD Frame - Essential Electric Supply
TEYD3020B - General Electric 20A 480Y/277VAC 3-Pole Molded Case Circuit Breaker Bolt-On 25kAIC TEYD Frame - Essential Electric Supply
TEYD3020B - General Electric 20A 480Y/277VAC 3-Pole Molded Case Circuit Breaker Bolt-On 25kAIC TEYD Frame - Essential Electric Supply
TEYD3020B - General Electric 20A 480Y/277VAC 3-Pole Molded Case Circuit Breaker Bolt-On 25kAIC TEYD Frame - Essential Electric Supply
TEYD3020B - General Electric 20A 480Y/277VAC 3-Pole Molded Case Circuit Breaker Bolt-On 25kAIC TEYD Frame - Essential Electric Supply

Description

TEYD3020B


TEYD3020B is a 3-pole, 20 amp, 480Y/277VAC molded case circuit breaker from General Electric designed for bolt-on panelboard mounting.This thermal magnetic circuit breaker features a 25kA interrupting rating at 480VAC, long-time and instantaneous trip functions, and screw clamp terminal connections. It is UL and cUL certified and compatible with GE AS lighting panels.
    Key Specifications
    • Amperage: 20A
    • Voltage: 480Y/277VAC
    • Poles: 3
    • Mounting Type: Bolt-On Panelboard
    • Interrupting Rating: 25kAIC at 480VAC
    • Frame Type: TEYD
    • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
    • Terminal Connection: Screw Clamp
    • Standards: UL, cUL
    • Temperature Rating: 40°C
    • Compatible With: GE AS Lighting Panels
    • Dimensions (LxWxH): 3" x 3" x 5.2"
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYD3020B
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYD Series
  • Type : TEYD
  • Voltage : 480
  • Amperage : 20
  • Phase : 3
  • Poles : 3
  • AIC rating : 25kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164461725
  • GTIN : 00783164461725
  • Country of Origin : United States
  • Dimensions : 3 in x 5-1/4 in
  • Weight : 2 lb
  • Panel Type : GE AS Lighting Panels
  • Standards : UL
  • Certification : UL
