Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEYD2090B

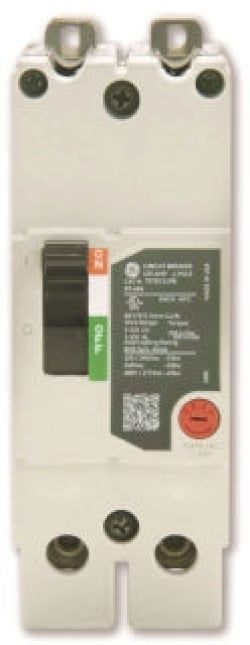

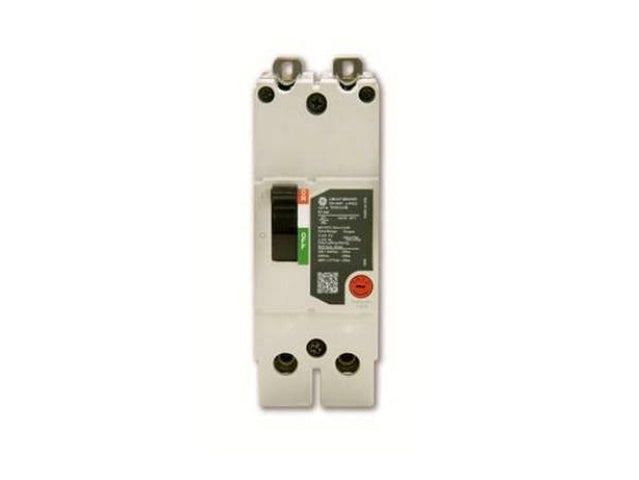

TEYD2090B is a General Electric 90A 2 Pole molded case circuit breaker designed for reliable protection in commercial and industrial applications. This TEY series breaker features a bolt-on mounting design, thermal magnetic trip unit, and is rated for 277/480V AC service. It is suitable for use in panelboards requiring a compact, high-performance solution with a 25kA interrupt rating at 480V.
- Part Number: TEYD2090B
- Manufacturer: General Electric
- Amperage: 90A
- Voltage: 277/480V AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA @ 480V
- Series/Frame: TEY
- Frame Size: 1 inch per pole
- Trip Unit: Thermal Magnetic
- Ground Fault: No
- Arc Fault: No
Specifications
- Part Number: TEYD2090B
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : TEYD Series
- Type : TEYD
- Voltage : 480
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Bolt-on Panelboard
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/TEY
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 783164461671
- GTIN : 00783164461671
- Country of Origin : United States
- Weight : 1 lb
- Panel Type : GE AS Lighting Panels
- Standards : UL
