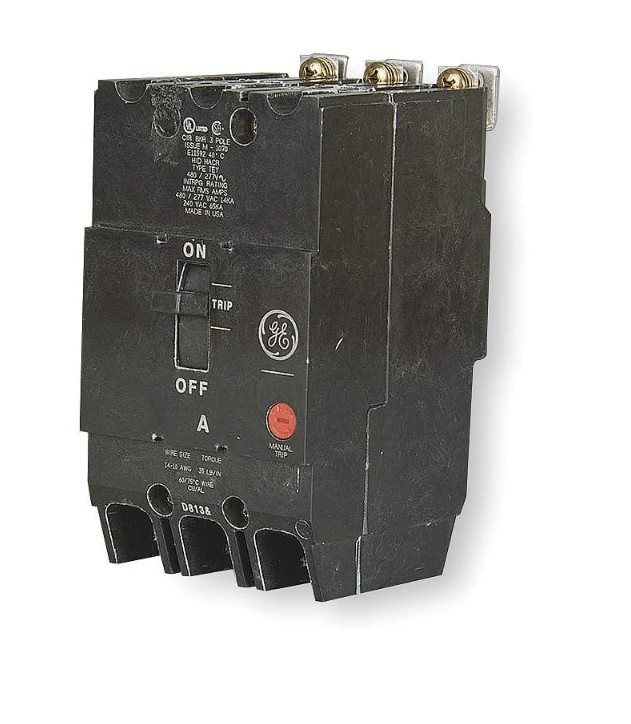

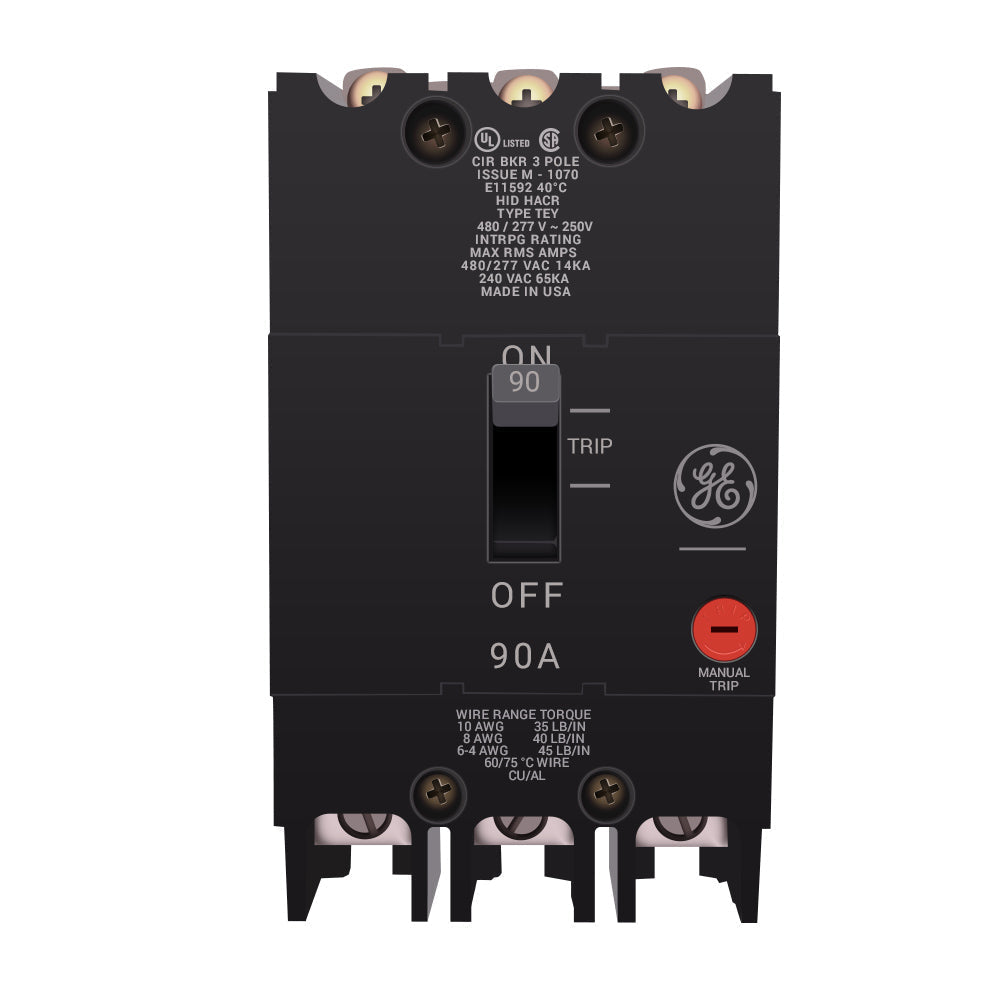

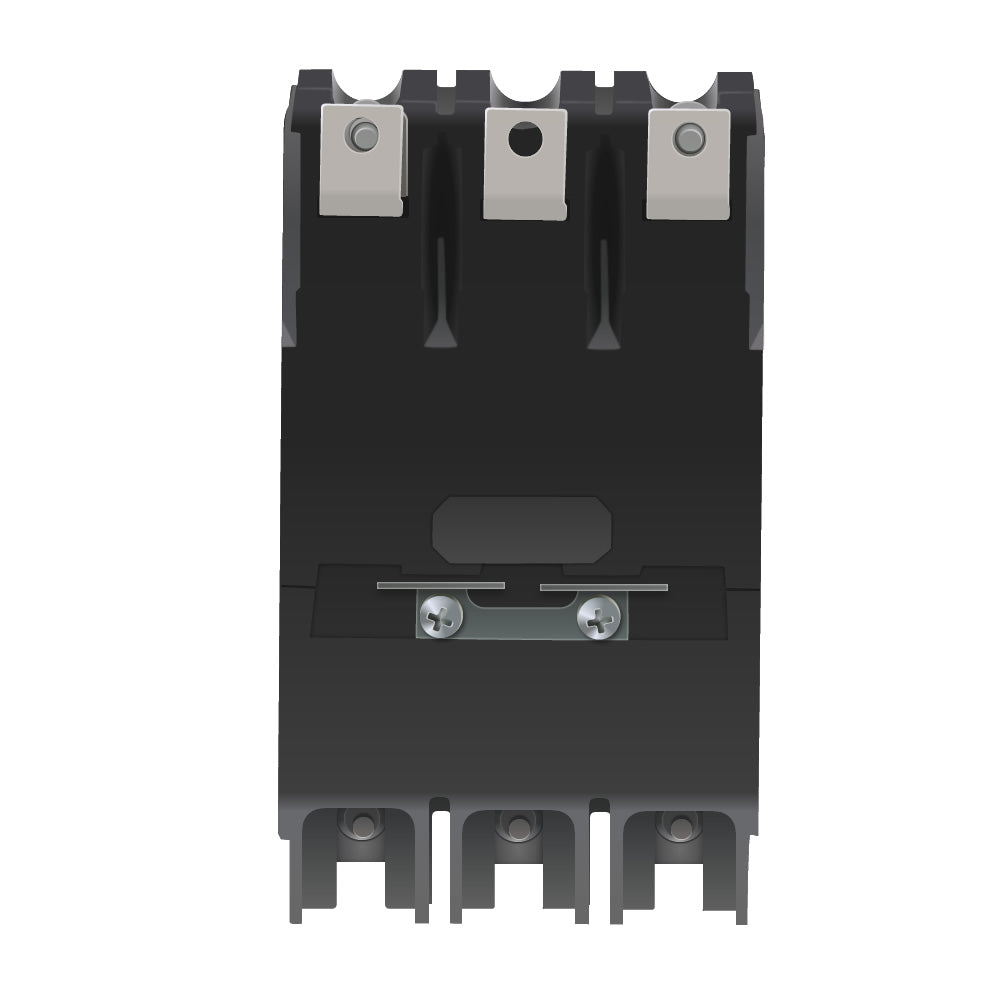

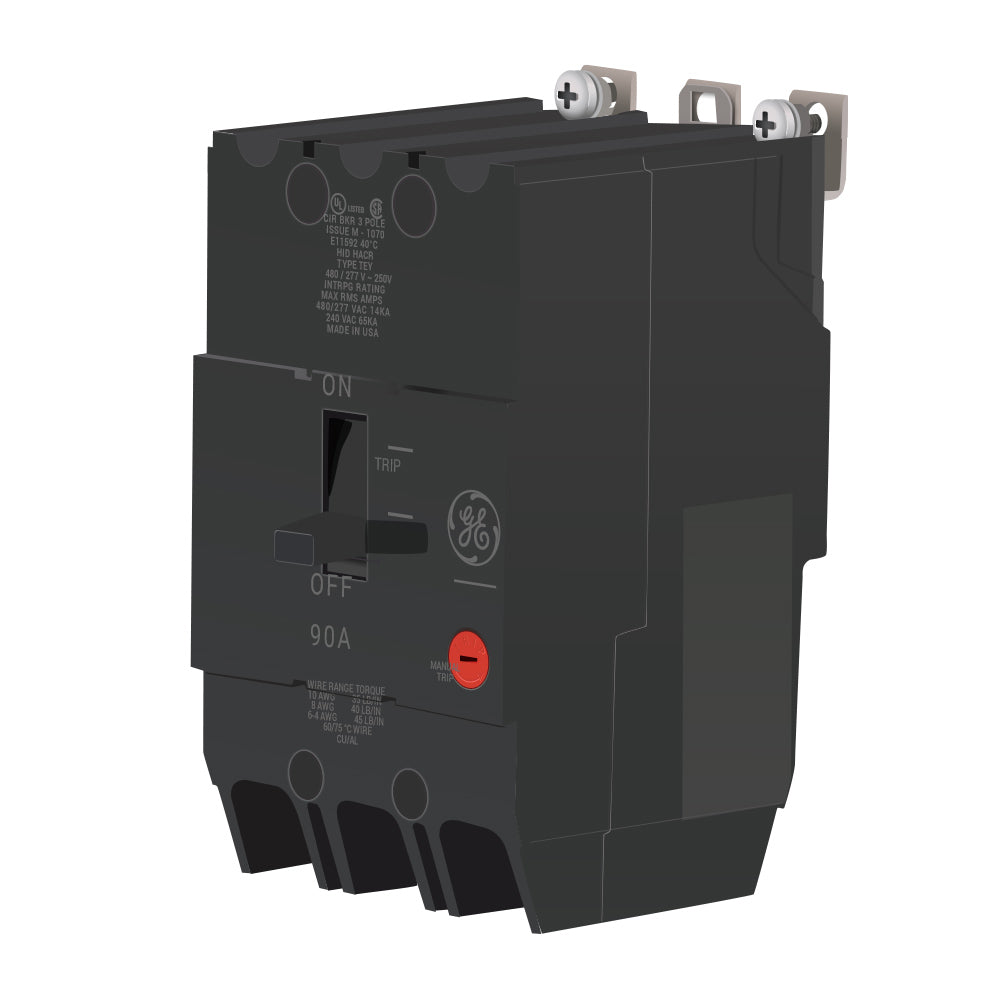

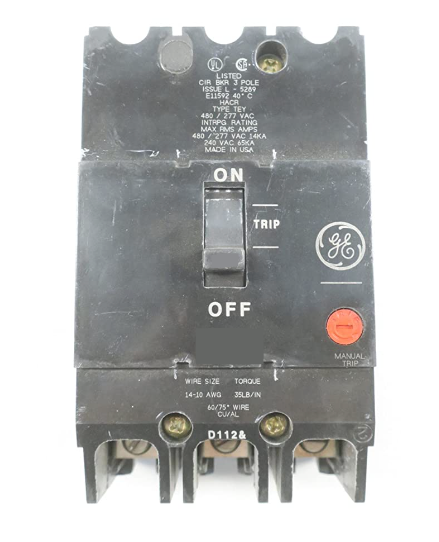

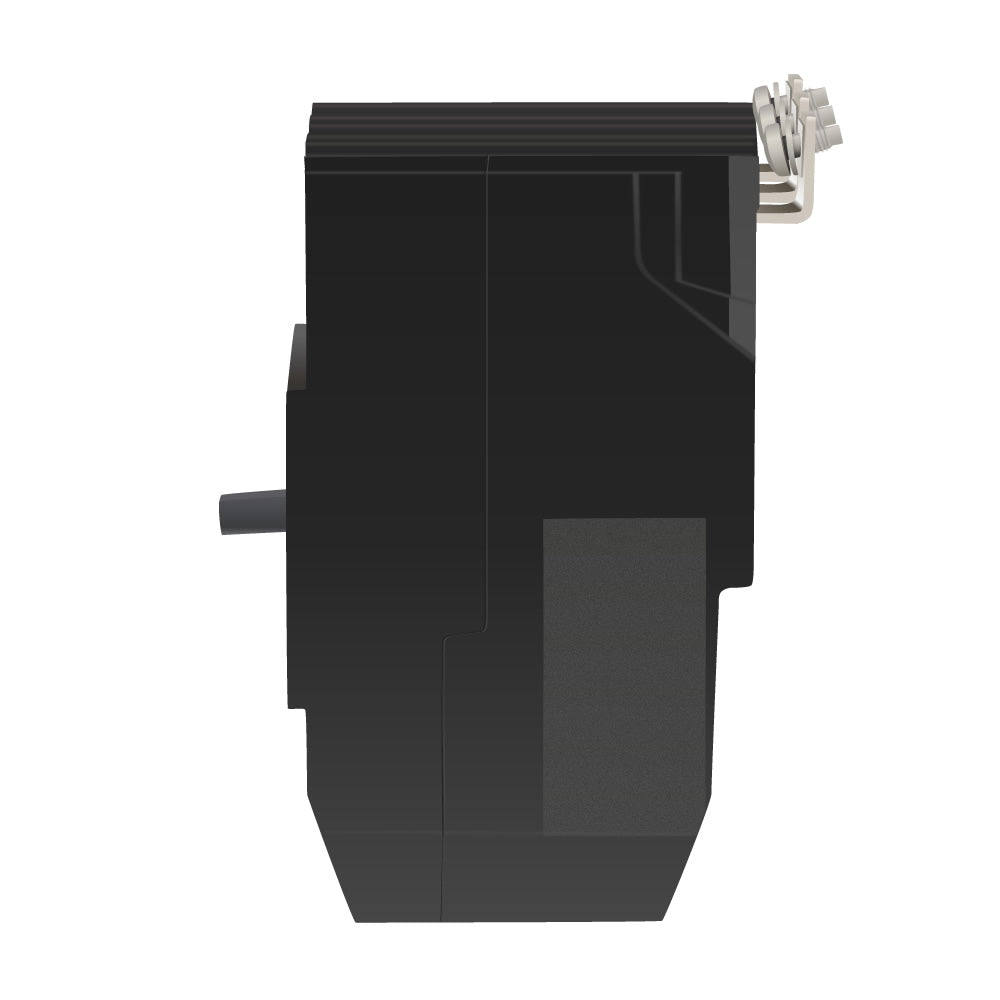

TEY390 - General Electric 90 Amp 3 Pole 277/480V Bolt-On Circuit Breaker, 14kA Interrupt Rating

Save $504.32
SKU: TEY390-New
Condition: New
Price:
$259.68 $764.00
Stock:
67 In stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

TEY390 - General Electric Bolt-On 90 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEY390 - General Electric Bolt-On 90 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEY390 - General Electric Bolt-On 90 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEY390 - General Electric 90 Amp 3 Pole 277/480V Bolt-On Circuit Breaker, 14kA Interrupt Rating - Essential Electric Supply
TEY390 - General Electric 90 Amp 3 Pole 277/480V Bolt-On Circuit Breaker, 14kA Interrupt Rating - Essential Electric Supply
TEY390 - General Electric 90 Amp 3 Pole 277/480V Bolt-On Circuit Breaker, 14kA Interrupt Rating - Essential Electric Supply
TEY390 - General Electric 90 Amp 3 Pole 277/480V Bolt-On Circuit Breaker, 14kA Interrupt Rating - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEY390 - General Electric Bolt-On 90 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEY390 - General Electric Bolt-On 90 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEY390 - General Electric Bolt-On 90 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEY390 - General Electric 90 Amp 3 Pole 277/480V Bolt-On Circuit Breaker, 14kA Interrupt Rating - Essential Electric Supply
TEY390 - General Electric 90 Amp 3 Pole 277/480V Bolt-On Circuit Breaker, 14kA Interrupt Rating - Essential Electric Supply
TEY390 - General Electric 90 Amp 3 Pole 277/480V Bolt-On Circuit Breaker, 14kA Interrupt Rating - Essential Electric Supply
TEY390 - General Electric 90 Amp 3 Pole 277/480V Bolt-On Circuit Breaker, 14kA Interrupt Rating - Essential Electric Supply

Description

TEY390


TEY390 is a General Electric 3 Pole, 90 Amp thermal magnetic molded case circuit breaker designed for 277/480 VAC and 250 VDC applications.This bolt-on type TEY series circuit breaker features a 14 kA interrupt rating at 480V, suitable for lighting panel and distribution equipment protection. It includes a thermal magnetic trip unit and fits a 125A/TEY frame, providing reliable overload and short circuit protection.
    Key Specifications
    • Amperage: 90 Amps
    • Voltage Rating: 277/480 VAC, 250 VDC
    • Poles: 3
    • Mounting Type: Bolt-On
    • Interrupt Rating: 14 kA at 480V
    • Series/Frame: TEY, 125A Frame
    • Trip Unit: Thermal Magnetic
    • Application: Lighting Panels, Distribution Equipment
    • Compact 1-inch wide per pole design
    • Certifications: UL Listed (implied by standard usage)
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: TEY390
    • Manufacturer : General Electric
    • Brand : General Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Q-Line
    • Type : TEY
    • Voltage : 480
    • Amperage : 90
    • Phase : 3
    • Poles : 3
    • AIC rating : 14kA@480V
    • Connection : Bolt-On
    • Functions : LI - Long-Time and Instantaneous Trip
    • Terminal Connection : Lug
    • Frame Size : 125A/TEY
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
    • Breaker Type : Standard
    • Protection : Thermal Magnetic
    • Phase Connection : ABC

    Product Data

    • UPC : 078316418226
    • GTIN : 40783164182260
    • Country of Origin : United States
    • Dimensions : 3 in x 5.25" x 5-1/4 in
    • Weight : 2
    • Panel Type : GE AE Lighting Panels
    • Standards : CSA, UL
    • Certification : CSA, UL
