Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEY345

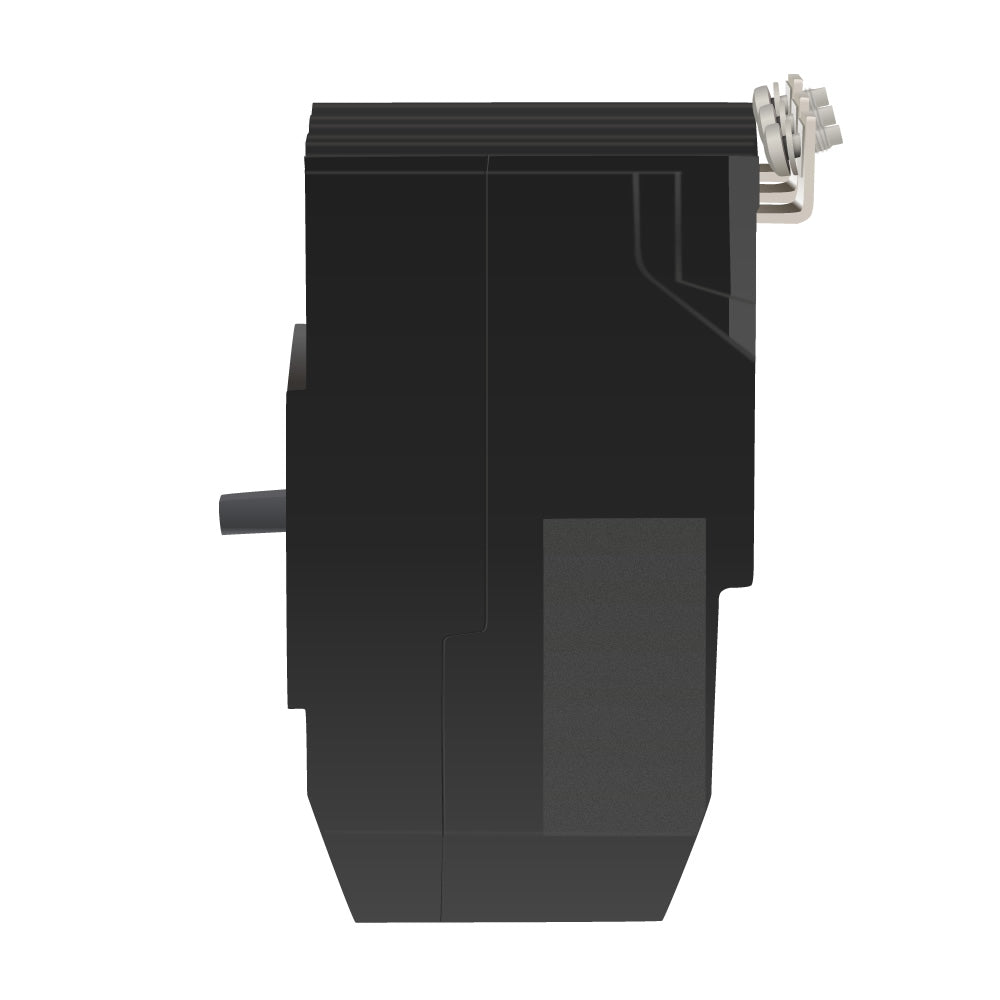

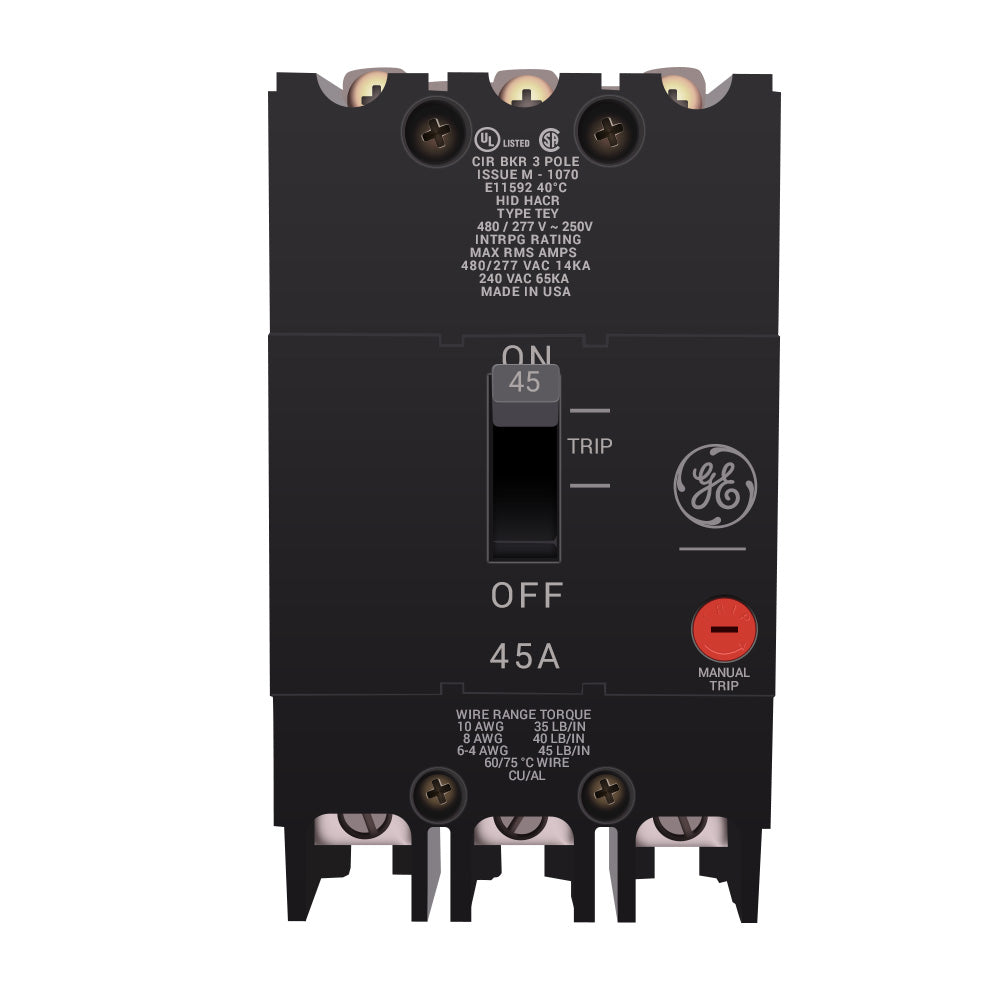

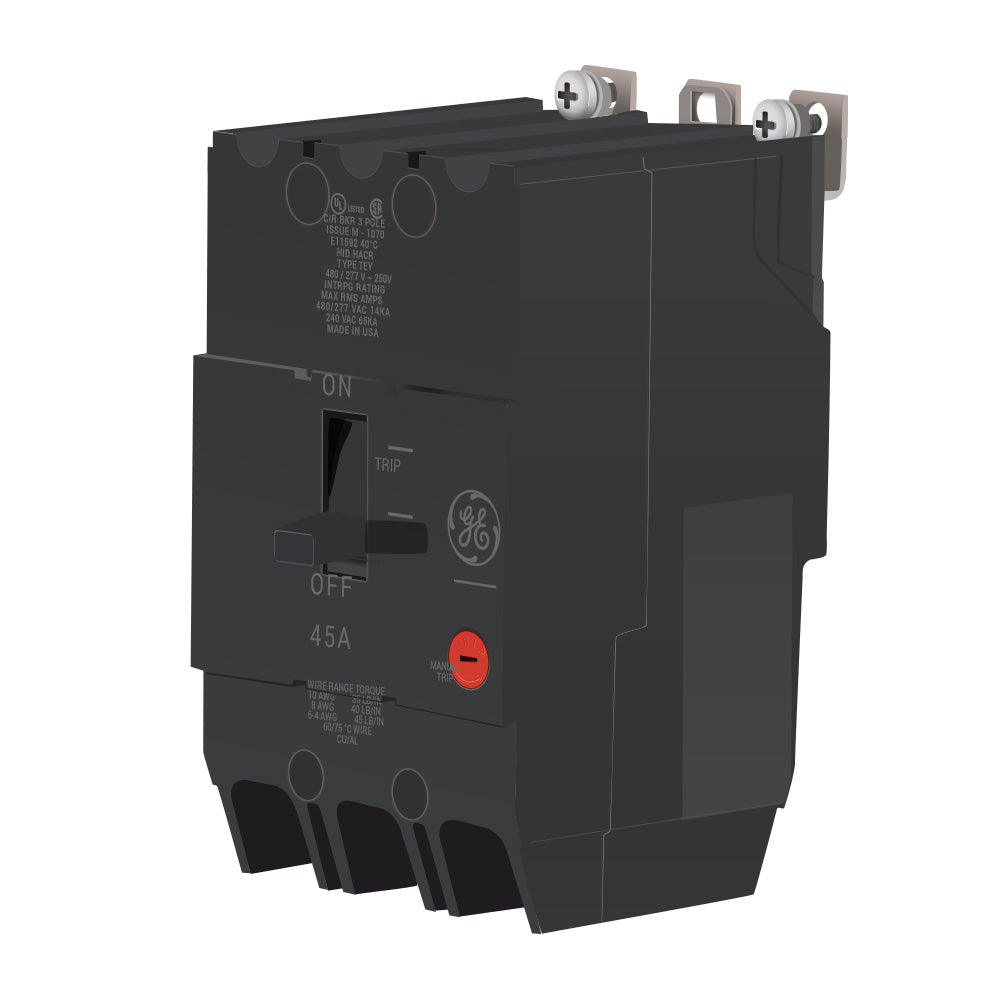

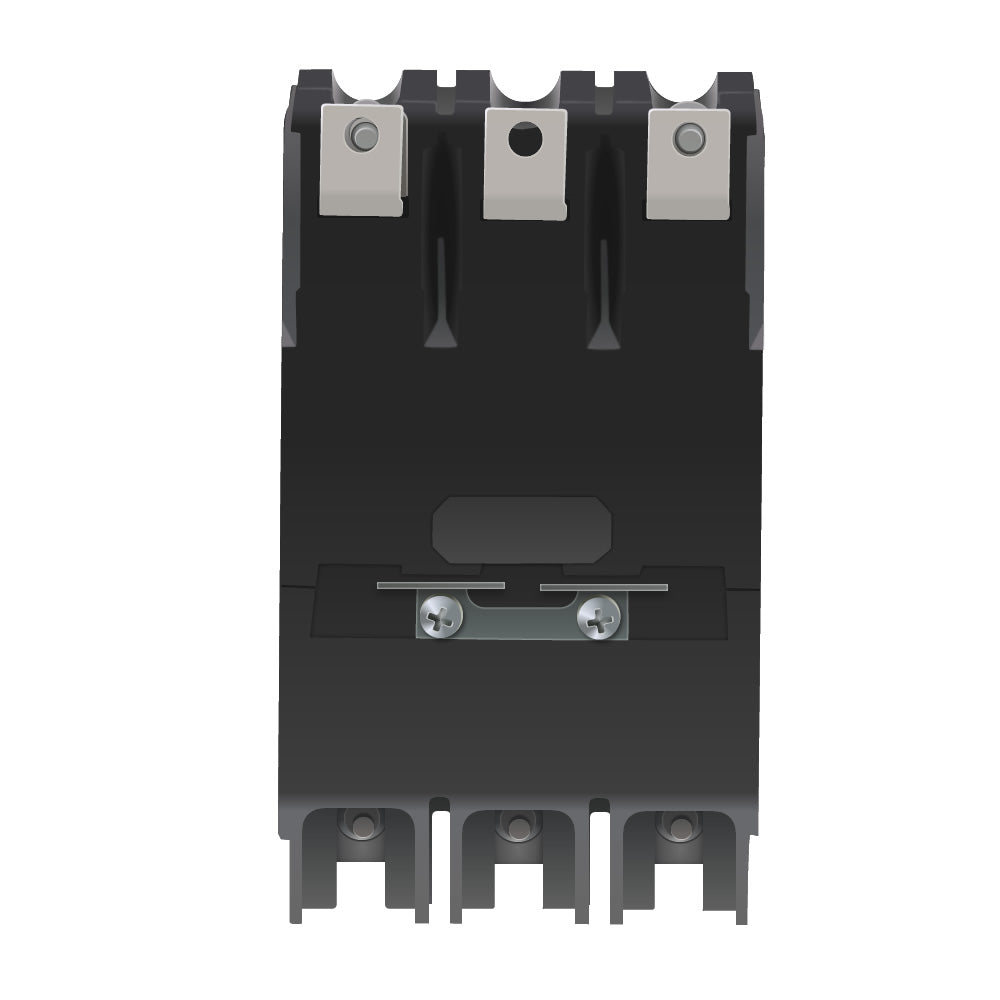

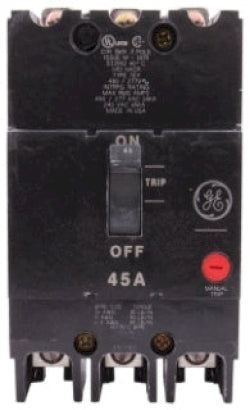

TEY345 is a General Electric 3-pole molded case circuit breaker rated for 45 amps and 480 volts with a bolt-on mounting and thermal magnetic trip.This GE Q-Line Type TEY circuit breaker features a 14 kA interrupting rating at 480 volts, suitable for lighting panel applications. It includes a non-interchangeable thermal magnetic trip unit and is UL listed for HACR and HID applications. The breaker supports wire ranges of 10-4 Cu/Al and is designed for 3-phase systems.
- Key Specifications
- Amperage: 45 A
- Voltage: 480/277 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 14 kA at 480 V
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Series/Frame: Type TEY, Q-Line
- UL Listed: HACR and HID
- Wire Range: 10-4 Cu/Al
- Phase: 3
Specifications
- Part Number: TEY345
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TEY
- Voltage : 480
- Amperage : 45
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/TEY
- MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 783164403503
- GTIN : 00783164403503
- Country of Origin : United States
- Dimensions : 3 in x 5.25" x 5-1/4 in
- Weight : 2
- Panel Type : GE AE Lighting Panels
- Standards : UL
- Certification : UL
