TEY3100 - General Electric 100A 3-Pole 480V Bolt-On Molded Case Circuit Breaker, 14kA Interrupt Rating

Name: TEY3100 - General Electric 100A 3-Pole 480V Bolt-On Molded Case Circuit Breaker, 14kA Interrupt Rating
Brand: General Electric
SKU: TEY3100-New
Price: 241.76 USD
Availability: InStock

Save $522.24

SKU: TEY3100-New

Condition: New

Variant

Price:

$241.76 $764.00

Stock:

100+ in stock, ready to be shipped

Quantity:

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

ABB-branded products
GE-branded products
Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

Enter your ZIP code:

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Manufacturer:General Electric
Sub-Category:Molded Case

TEY3100 - General Electric Bolt-On 100 Amp 3 Pole Circuit Breaker - Essential Electric Supply

TEY3100 - General Electric 100A 3-Pole 480V Bolt-On Molded Case Circuit Breaker, 14kA Interrupt Rating - Essential Electric Supply

Roll over image to zoom in Click on image to zoom Images are for reference only

TEY3100

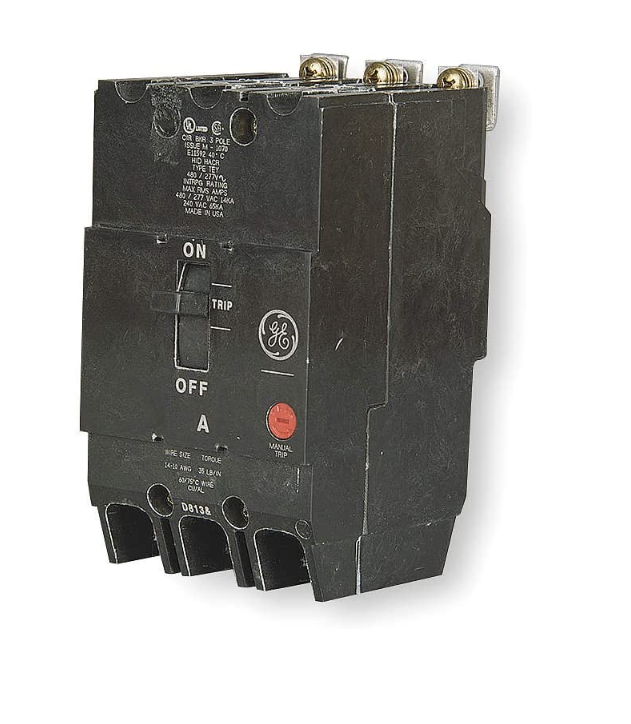

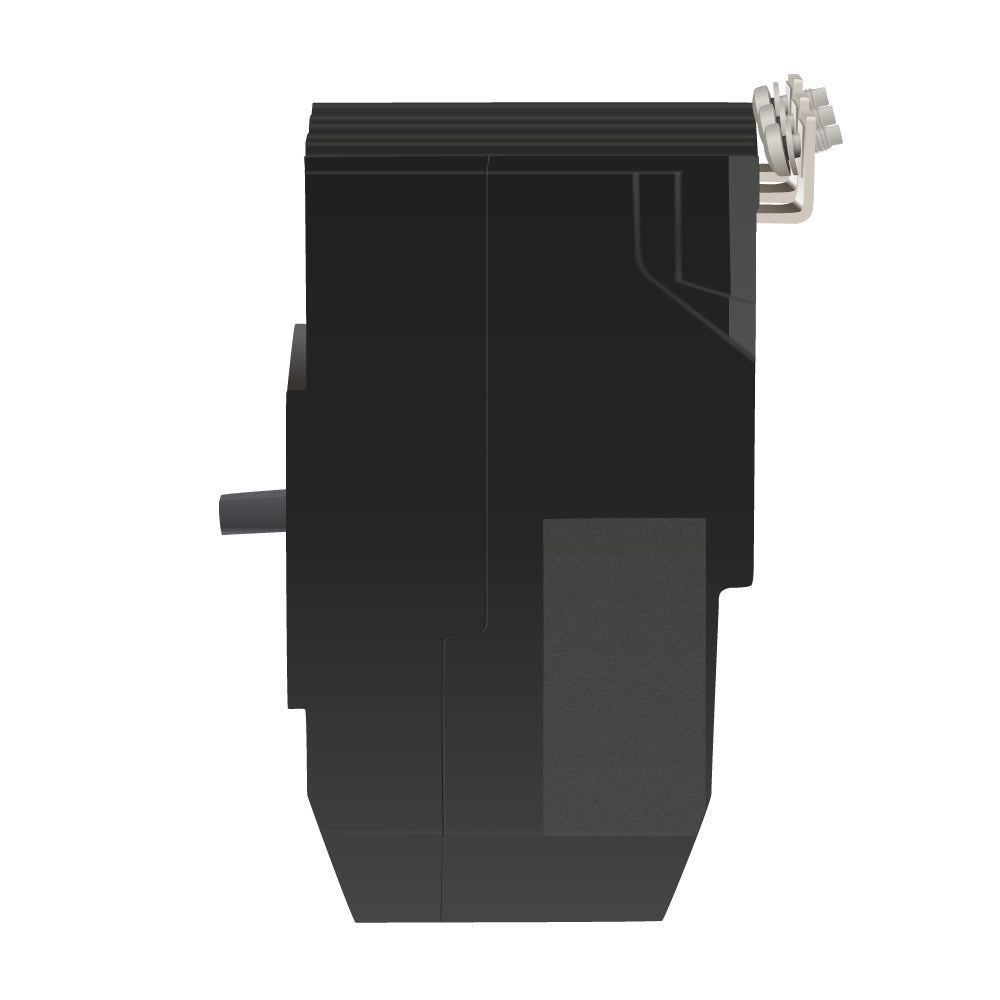

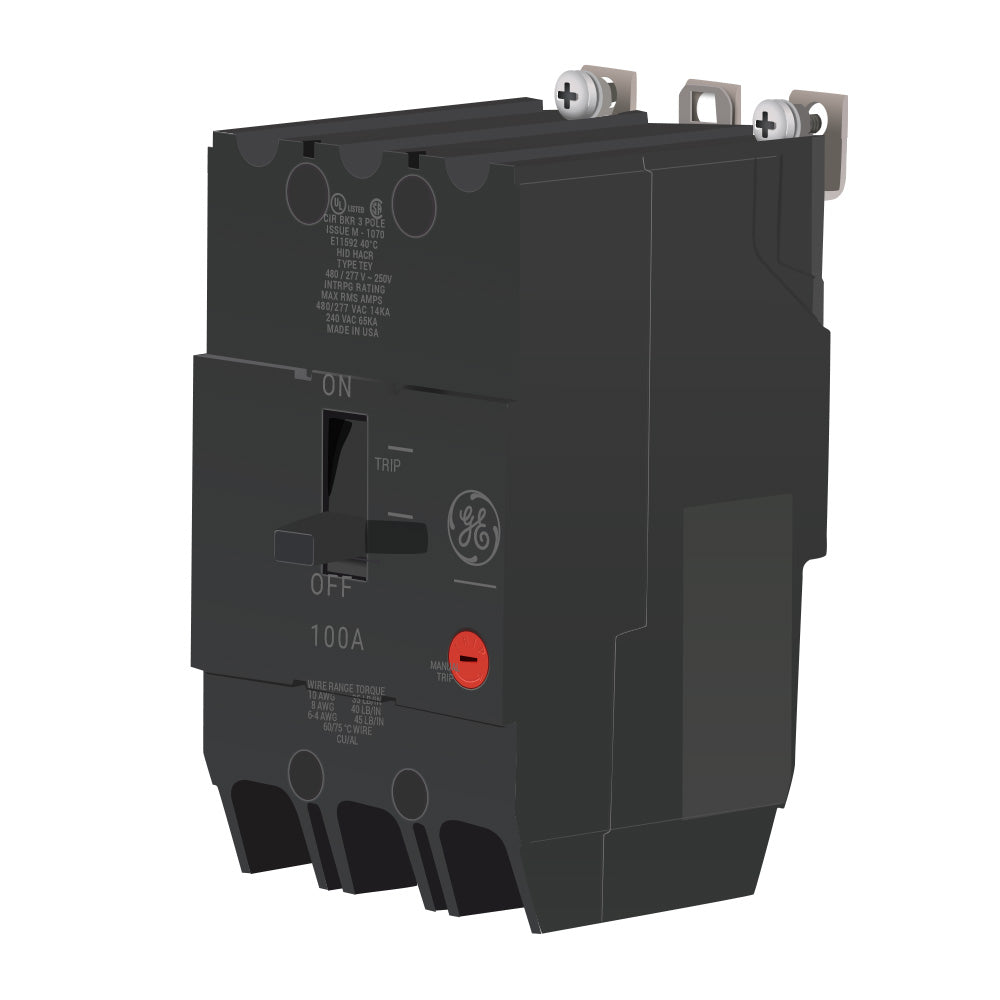

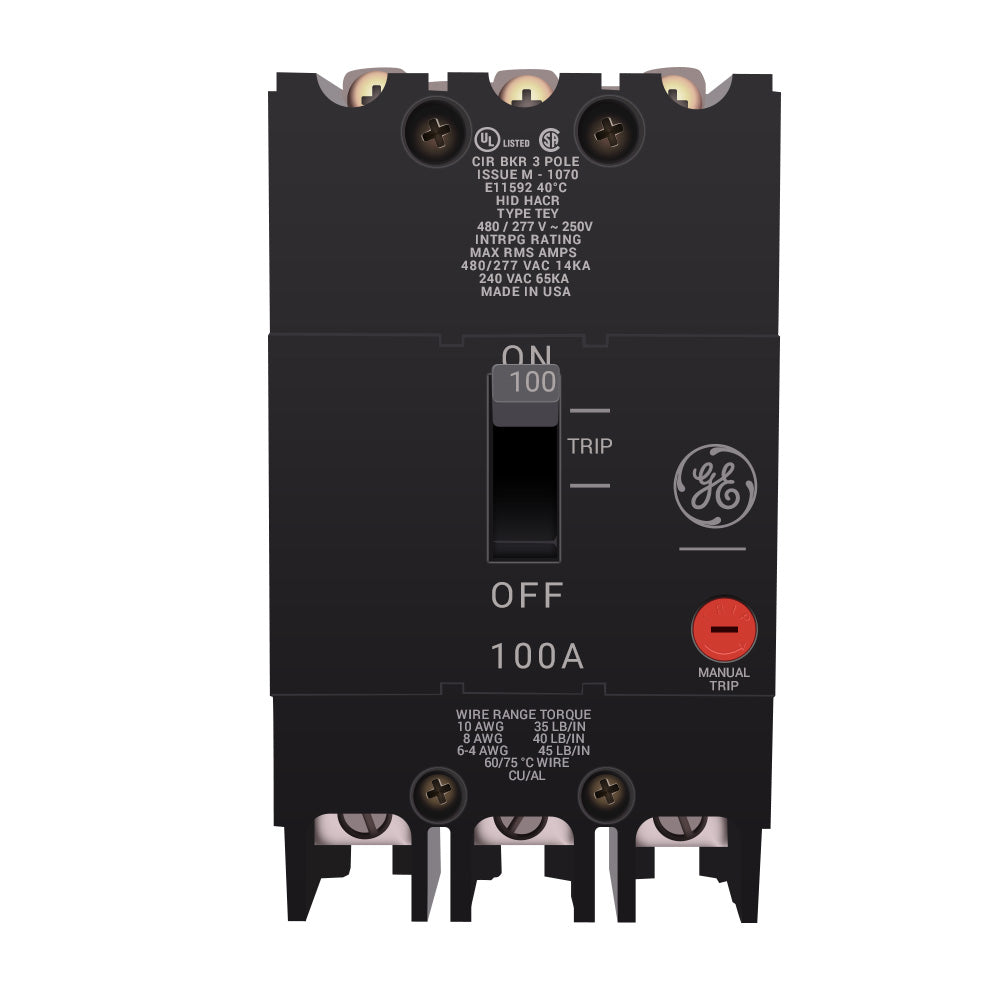

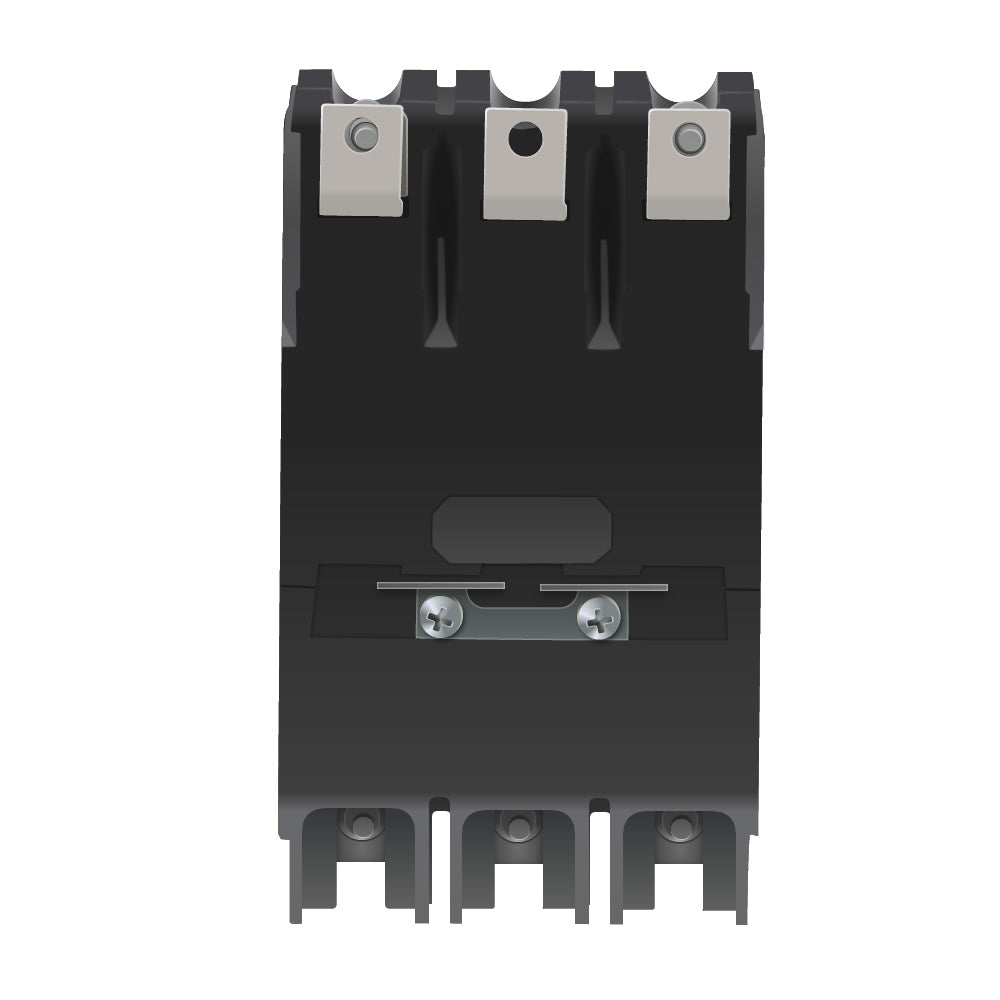

TEY3100 is a General Electric 3-pole, 100 amp bolt-on molded case circuit breaker designed for reliable protection in lighting panel applications.This GE Q-Line TEY series breaker features a thermal magnetic trip unit with non-interchangeable trip style, suitable for 277/480 VAC systems. It has a 14kA interrupting rating at 480V and is rated for continuous current with fixed long-time and instantaneous trip functions. The compact breaker measures 5.25" high, 3" wide, and 3.06" deep, and includes load-side lugs for easy installation. It is UL and CSA certified and suitable for reverse feed.

Amperage: 100 A
Voltage: 277/480 VAC
Poles: 3
Mounting Type: Bolt-On
Interrupt Rating: 14kA @ 480V
Series/Frame: Q-Line TEY
Trip Unit: Thermal Magnetic, Non-Interchangeable
Dimensions: 5.25" H x 3" W x 3.06" D
Certifications: UL Listed, CSA Certified
Trip Functions: Long-Time and Instantaneous Fixed
Suitable for Reverse Feed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

Part Number: TEY3100
Manufacturer : General Electric
Brand : General Electric
Category : Circuit Breaker
Item Subcategory : Molded Case
Family : Q-Line
Type : TEY
Voltage : 480
Amperage : 100
Phase : 3
Poles : 3
AIC rating : 14kA@480V
Connection : Bolt-on
Functions : LI - Long-Time and Instantaneous Trip
Terminal Connection : Lug
Frame Size : 125A/TEY
Temp Rating : -13â€“158 Â°F (-25â€“70 Â°C)
MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
Breaker Type : Standard
Protection : Thermal Magnetic
Phase Connection : ABC

Product Data

UPC : 783164182279
GTIN : 40783164182277
Country of Origin : United States
Dimensions : 3 in x 5.25" x 5-1/4 in
Weight : 2
Panel Type : GE AE Lighting Panels
Standards : CSA, UL
Certification : CSA, UL

Accesories

Part	Manufacture	Sub Category
TEYST12	General Electric	Shunt Trip

Related Products

Part	Manufacture	Voltage	Amperage	Phase	AIC	Connection	Poles	Functions
tey3015st12	General Electric	480V	15	3	14kA@480V	Bolt-On	3	LI - Long-Time and Instantaneous
tey3020st12	General Electric	480V	20	3	14kA@480V	Bolt-On	3	LI - Long-Time and Instantaneous
tey3025st12	General Electric	480V	25	3	14kA@480V	Bolt-On	3	LI - Long-Time and Instantaneous
tey3030st12	General Electric	480V	30	3	14kA@480V	Bolt-On	3	LI - Long-Time and Instantaneous
tey3035st12	General Electric	480V	35	3	14kA@480V	Bolt-On	3	LI - Long-Time and Instantaneous
