TED134035WL - General Electric 35A 480VAC 3-Pole TED Frame Circuit Breaker with LI Trip

Save $301.40
SKU: TED134035WL-New
Condition: New
Price:
$689.60 $991.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

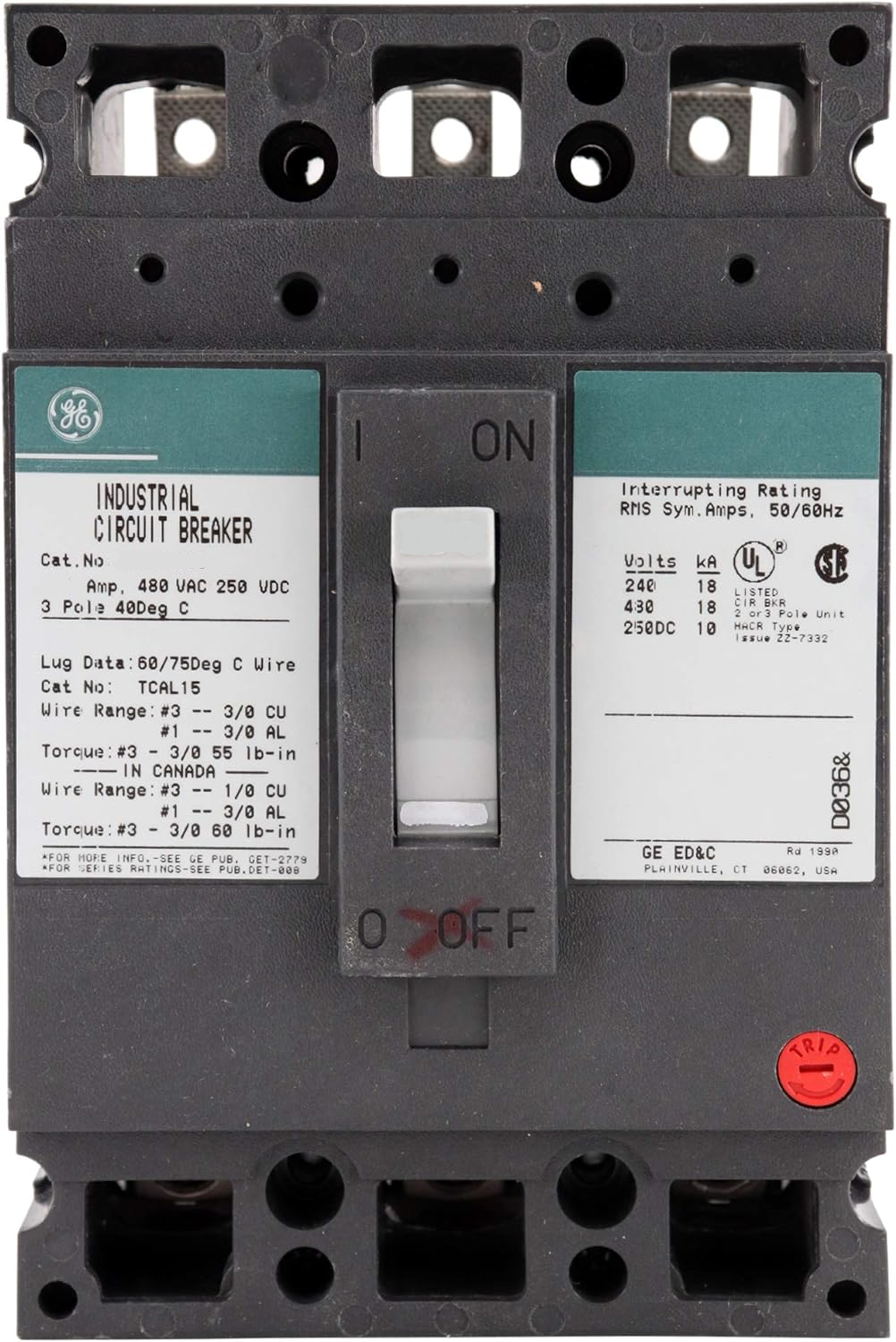

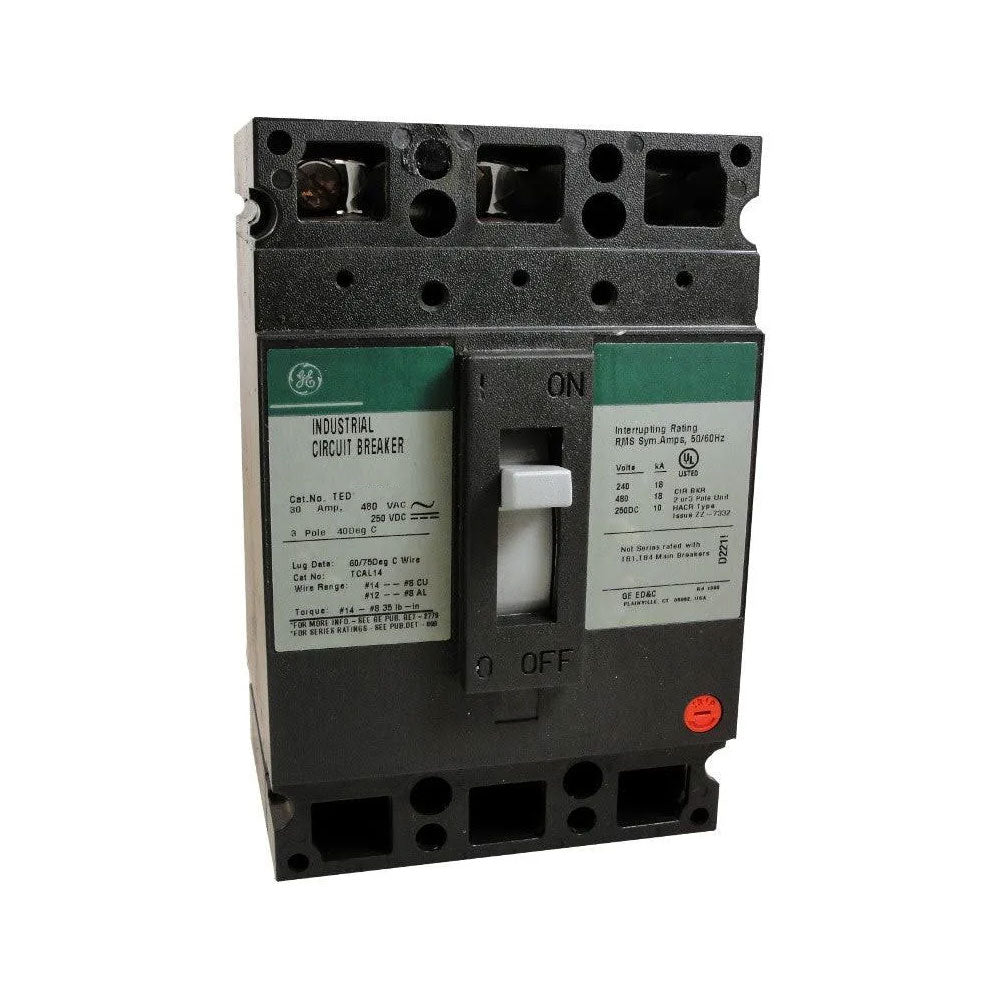

TED134035WL - General Electric Feed-Thru 35 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TED134035WL - General Electric 35A 480VAC 3-Pole TED Frame Circuit Breaker with LI Trip - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED134035WL - General Electric Feed-Thru 35 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TED134035WL - General Electric 35A 480VAC 3-Pole TED Frame Circuit Breaker with LI Trip - Essential Electric Supply

Description

TED134035WL


TED134035WL is a General Electric 3-pole circuit breaker rated for 35 amps and 480 volts AC, designed for reliable protection in commercial and industrial electrical systems.This molded case circuit breaker belongs to the TED series with an E150 frame, featuring a thermal magnetic LI (Long Time/Instantaneous) trip unit with fixed settings. It supports multiple voltages including 120VAC, 240VAC, 277VAC, 480VAC, and DC voltages up to 250V. The breaker has an interrupting rating of 18 kA at 120/240/277/480 VAC and 10 kA at 125/250 VDC, ensuring robust fault interruption. It includes copper/aluminum line and load lugs (TC041, TCAL12, TCAL14 compatible) and supports feed-thru mounting. The device is UL listed (File #E11592), CSA certified (File #LR57114), and HACR rated for HVAC applications.
    Key Specifications
    • Amperage: 35A
    • Voltage Rating: 480VAC (also compatible with 120VAC, 240VAC, 277VAC, and DC up to 250V)
    • Poles: 3
    • Frame Type: E150 (TED series)
    • Trip Unit: LI (Long Time/Instantaneous) fixed settings
    • Interrupt Rating: 18 kA at 480VAC, 10 kA at 250VDC
    • Mounting Type: Feed-Thru
    • Lug Compatibility: TC041, TCAL12, TCAL14
    • Certifications: UL Listed, CSA Certified, HACR Rated
    • Reverse Feed Capability for versatile installation
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED134035WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 480
  • Amperage : 35
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Protection : Thermal Magnetic

Product Data

  • UPC : 783164063059
  • GTIN : 00783164063059
  • Weight : 3
  • Certification : UL
