TED113090WL - General Electric 90A 277V 1 Pole Molded Case Circuit Breaker E150 Line

Save $254.65
SKU: TED113090WL-New
Condition: New
Price:
$199.85 $454.50
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

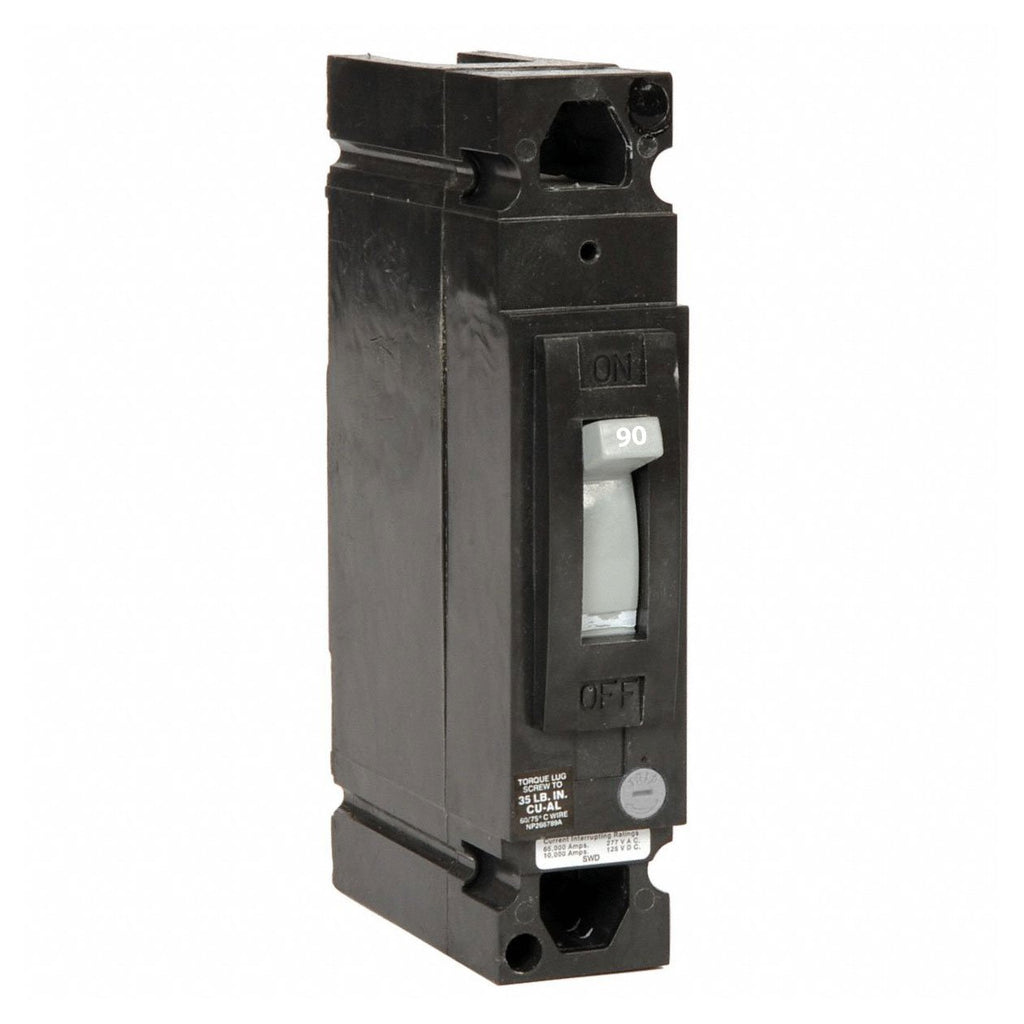

TED113090WL - General Electric Feed-Thru 90 Amp 1 Pole Circuit Breaker - Essential Electric Supply

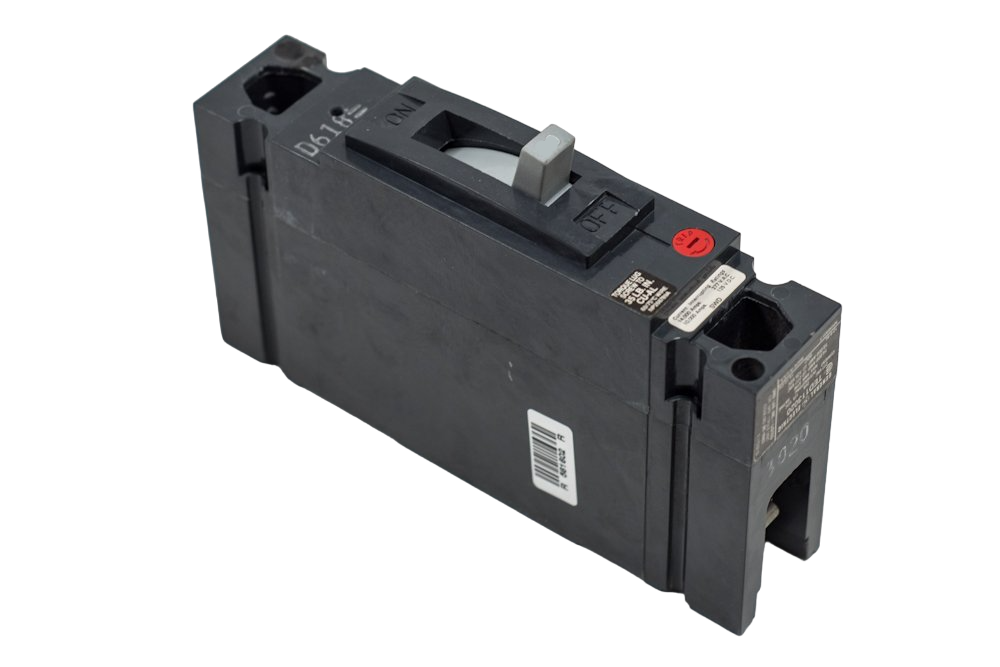

TED113090WL - General Electric 90A 277V 1 Pole Molded Case Circuit Breaker E150 Line - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED113090WL - General Electric Feed-Thru 90 Amp 1 Pole Circuit Breaker - Essential Electric Supply
TED113090WL - General Electric 90A 277V 1 Pole Molded Case Circuit Breaker E150 Line - Essential Electric Supply

Description

TED113090WL


TED113090WL is a General Electric 1 pole molded case circuit breaker designed for reliable protection in electrical distribution systems. This breaker is part of the E150 Line series and features a thermal magnetic trip unit for accurate overload and short circuit protection.Engineered for use in commercial and industrial applications, the TED113090WL offers a 90 amp current rating and a 277 volt AC voltage rating. It utilizes a feed-thru connection and is designed for bolt-on mounting. The breaker is rated for an interrupt capacity of 14kA at 277V AC, ensuring robust performance under fault conditions.
  • Part Number: TED113090WL
  • Manufacturer: General Electric
  • Series: E150 Line
  • Frame Type: ED
  • Poles: 1
  • Amperage: 90A
  • Voltage: 277V AC
  • Mounting: Bolt-On
  • Connection: Feed-Thru
  • Interrupt Rating: 14kA at 277V AC
  • Trip Unit: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED113090WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 277
  • Amperage : 90
  • Phase : 1
  • Poles : 1
  • AIC rating : 14kA@277V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/TED
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Any

Product Data

  • UPC : 783164082432
  • GTIN : 00783164018479
  • Country of Origin : United States
  • Dimensions : 1-3/8 in x 6-5/16 in
  • Weight : 1
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed
  • Wire Size : 2/0 AWG

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
