Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TED113060

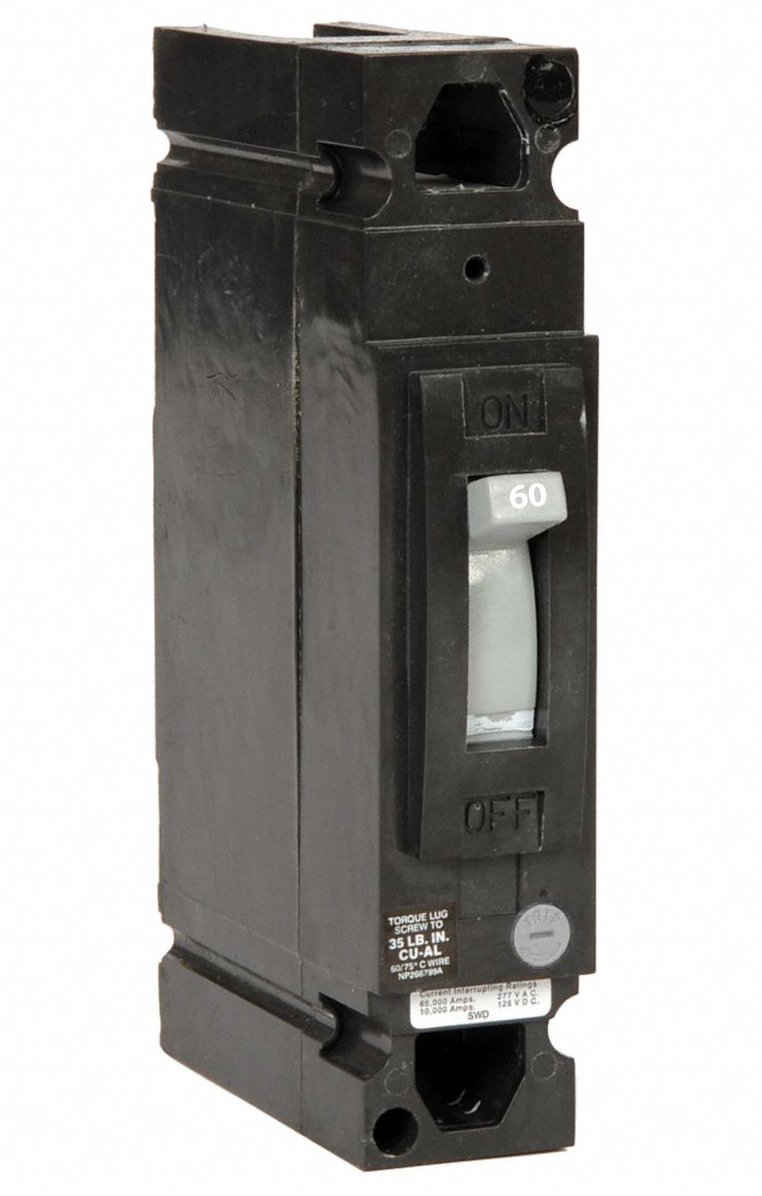

TED113060 is a General Electric 1 pole molded case circuit breaker rated for 60 amperes and 277 volts AC with a 14 kiloampere interrupting rating.This thermal magnetic breaker features a TED frame, fixed trip unit, and is suitable for branch circuit protection in commercial and industrial applications. It supports 277/480 VAC and 125 VDC voltages, with aluminum/copper load lug terminals and UL certification.
- Amperage: 60 Amps
- Voltage: 277/480 VAC, 125 VDC
- Poles: 1
- Interrupting Rating: 14 kA at 277 VAC, 10 kA at 480 VAC and 125 VDC
- Mounting Type: Bolt-On
- Frame/Series: TED
- Trip Unit: Fixed Thermal Magnetic
- Terminal Type: Aluminum/Copper Load Lug
- Dimensions: 1 3/8" W x 3 3/8" D x 6 5/16" H
- Certifications: UL Listed
Specifications
- Part Number: TED113060
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TED
- Voltage : 277
- Amperage : 60
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164147926
- GTIN : 40783164147924
- Weight : 1 lb
