TED113030WL - General Electric 30 Amp 1 Pole 277VAC Thermal Magnetic Molded Case Circuit Breaker E150 Frame

Save $209.97
SKU: TED113030WL-New
Condition: New
Price:
$184.03 $394.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

TED113030WL - General Electric Bolt-on Panelboard 277V 30A 1 pole circuit breaker 14kA@277V - Essential Electric Supply

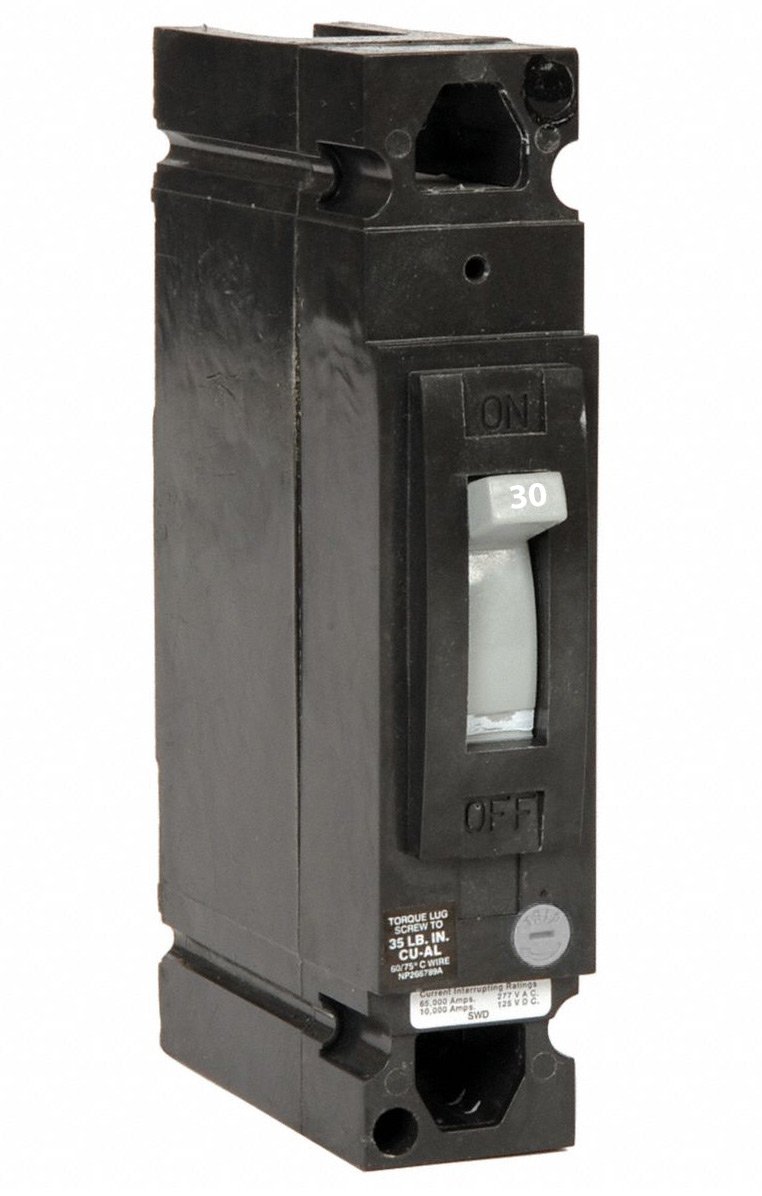

TED113030WL - General Electric 30 Amp 1 Pole 277VAC Thermal Magnetic Molded Case Circuit Breaker E150 Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED113030WL - General Electric Bolt-on Panelboard 277V 30A 1 pole circuit breaker 14kA@277V - Essential Electric Supply
TED113030WL - General Electric 30 Amp 1 Pole 277VAC Thermal Magnetic Molded Case Circuit Breaker E150 Frame - Essential Electric Supply

Description

TED113030WL


TED113030WL is a 30 Amp, 1 Pole thermal magnetic molded case circuit breaker from General Electric designed for 277VAC applications.This circuit breaker features a 14 KAIC interrupting rating at 277VAC, E150 frame type, and a fixed long-time and instantaneous trip unit. It is suitable for reverse feed and includes HACR load rating compliance. Certified under UL File E11592 and CSA File LR57114, it provides reliable protection in commercial and industrial electrical systems.
  • Amperage: 30 A
  • Voltage: 277 VAC
  • Poles: 1
  • Interrupting Rating: 14 KAIC at 277 VAC
  • Frame Type: E150
  • Trip Style: Thermal Magnetic, Fixed Long-Time and Instantaneous
  • Mounting Type: Lug Kit Included
  • Load Rating: HACR
  • Suitable for Reverse Feed: Yes
  • Certifications: UL E11592, CSA LR57114
  • Trip Function: LI (Long-time, Instantaneous)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED113030WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 277
  • Amperage : 30
  • Phase : 1
  • Poles : 1
  • AIC rating : 14kA@277V
  • Connection : Bolt-on Panelboard
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/TED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Any

Product Data

  • UPC : 783164082470
  • GTIN : 00783164082470
  • Country of Origin : United States
  • Dimensions : 1-3/8 in x 6-5/16 in
  • Weight : 1
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
