Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TED113025WL

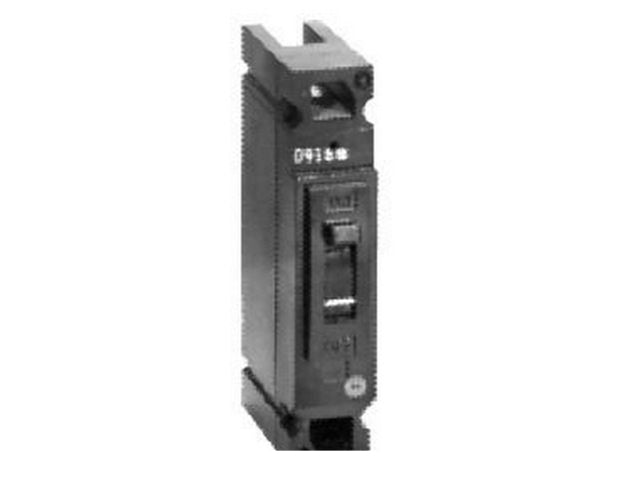

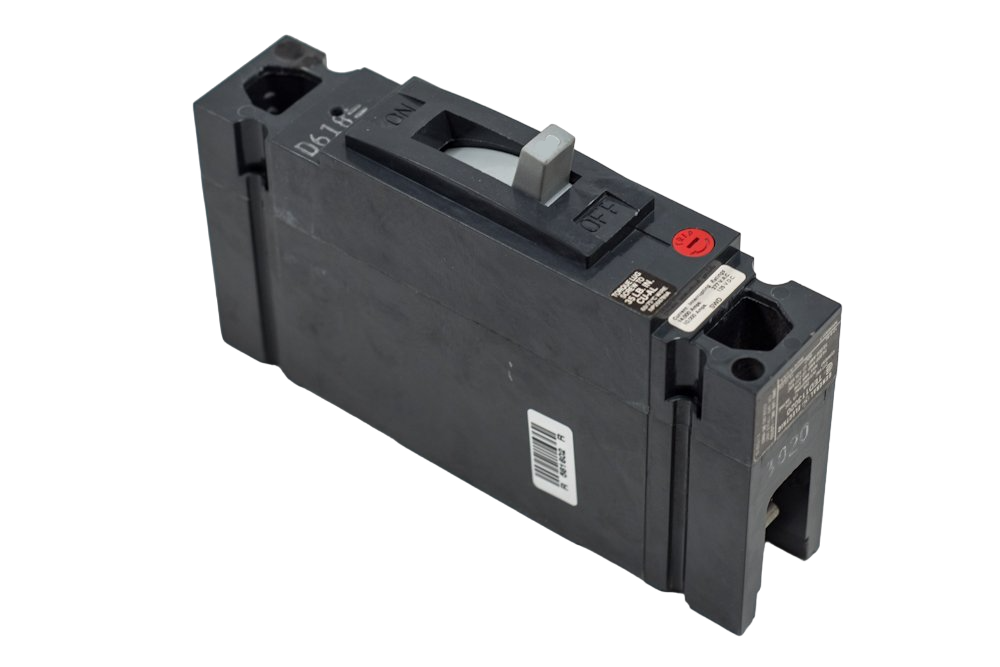

TED113025WL is a General Electric 25 amp, 277 volt, 1 pole molded case circuit breaker with TED frame and bolt-on mounting.This circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions, a 14kA interrupt rating at 277V, and load side lug terminals. It is designed for single-phase applications and provides reliable overcurrent protection in commercial and industrial electrical systems.
- Manufacturer: General Electric
- Amperage: 25A
- Voltage: 277V AC
- Poles: 1
- Frame Type: TED
- Mounting Type: Bolt-On
- Interrupt Rating: 14kA at 277V
- Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
- Phase: Single Phase
- Load Side Lug Terminals
- Certifications: NETA Testing Available
Specifications
- Part Number: TED113025WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TED
- Voltage : 277
- Amperage : 25
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Bolt-on Panelboard
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Line/Load Lug
- Frame Size : 150A/TED
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Any
Product Data
- UPC : 783164082456
- GTIN : 00783164082456
- Country of Origin : United States
- Weight : 1
- Panel Type : GE Panelboards
- Standards : CSA Certified, UL Listed
