TED113020WL - General Electric 20A 1-Pole 277VAC Thermal Magnetic Circuit Breaker E150 Frame

Save $195.05
SKU: TED113020WL-New
Condition: New
Price:
$198.95 $394.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

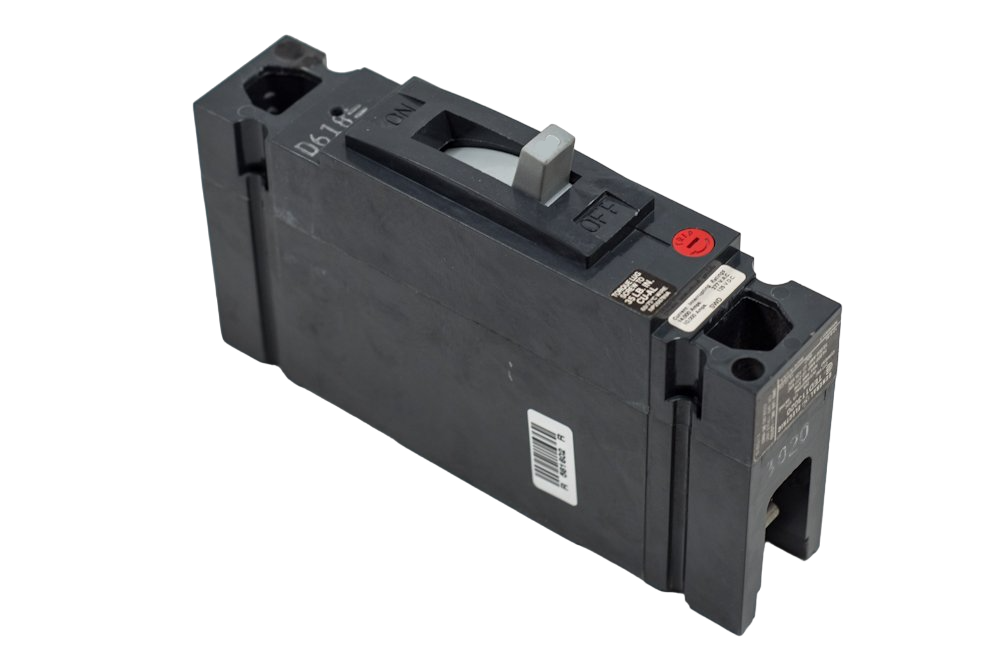

TED113020WL - General Electric Feed-Thru 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply

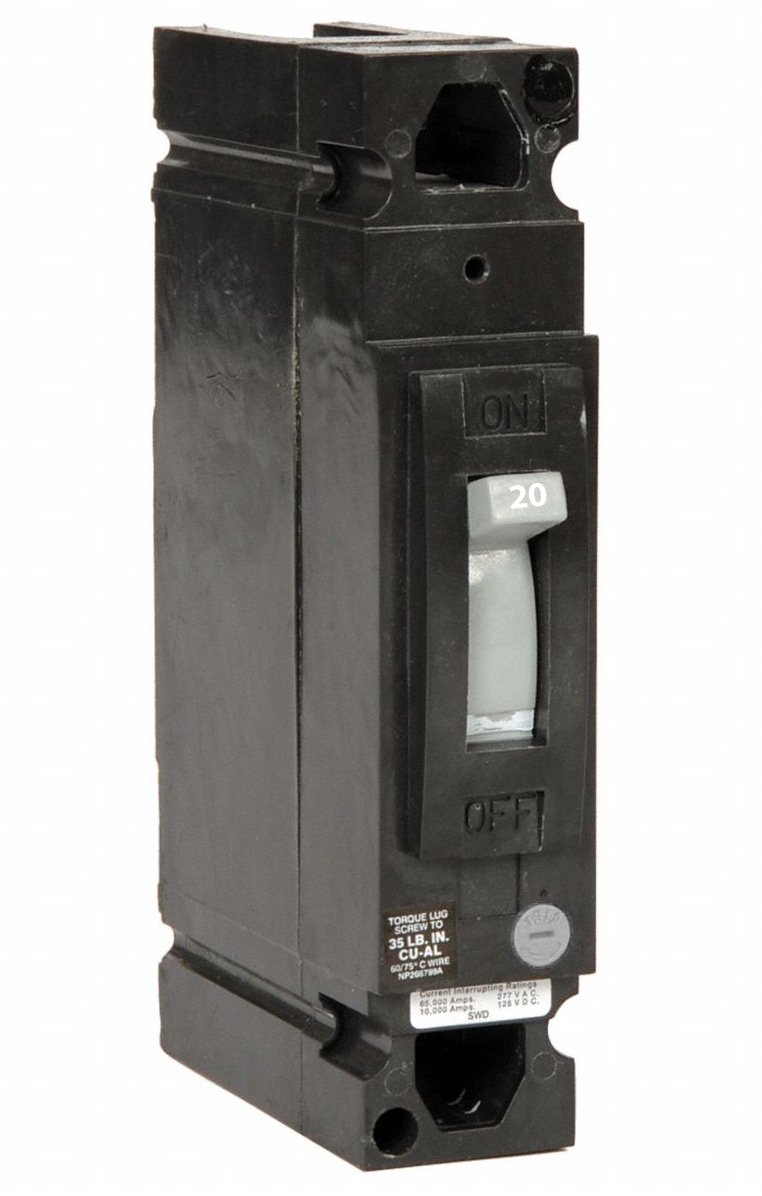

TED113020WL - General Electric 20A 1-Pole 277VAC Thermal Magnetic Circuit Breaker E150 Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED113020WL - General Electric Feed-Thru 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply
TED113020WL - General Electric 20A 1-Pole 277VAC Thermal Magnetic Circuit Breaker E150 Frame - Essential Electric Supply

Description

TED113020WL


TED113020WL is a General Electric 20 amp, 1-pole thermal magnetic molded case circuit breaker designed for 277VAC applications with E150 frame.This circuit breaker features a non-interchangeable trip style with a fixed long time and instantaneous trip function. It supports a system voltage of 120 to 277 VAC with a 14 kA interrupting rating at 277 VAC and 10 kA at 125 VDC. The breaker is suitable for reverse feed and includes lug kit TC041 for connection. It is UL and CSA certified and marked HACR compliant.
  • Amperage: 20 A
  • Poles: 1
  • Voltage Rating: 277 VAC
  • Interrupt Rating: 14 kA at 277 VAC, 10 kA at 125 VDC
  • Frame Type: E150
  • Trip Style: Non-Interchangeable Thermal Magnetic
  • Mounting Type: Bolt-On
  • Trip Function: Fixed Long Time and Instantaneous
  • Suitable for Reverse Feed: Yes
  • Lug Kit: TC041
  • Certifications: UL File #E11592, CSA File #LR57114
  • Special Markings: HACR
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED113020WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 277
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 14kA@277V
  • Connection : Bolt-on Panelboard
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/TED
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Any

Product Data

  • UPC : 783164082432
  • GTIN : 00783164082432
  • Country of Origin : United States
  • Dimensions : 1-3/8 in x 6-5/16 in
  • Weight : 1 lb
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
