Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEB132YT100

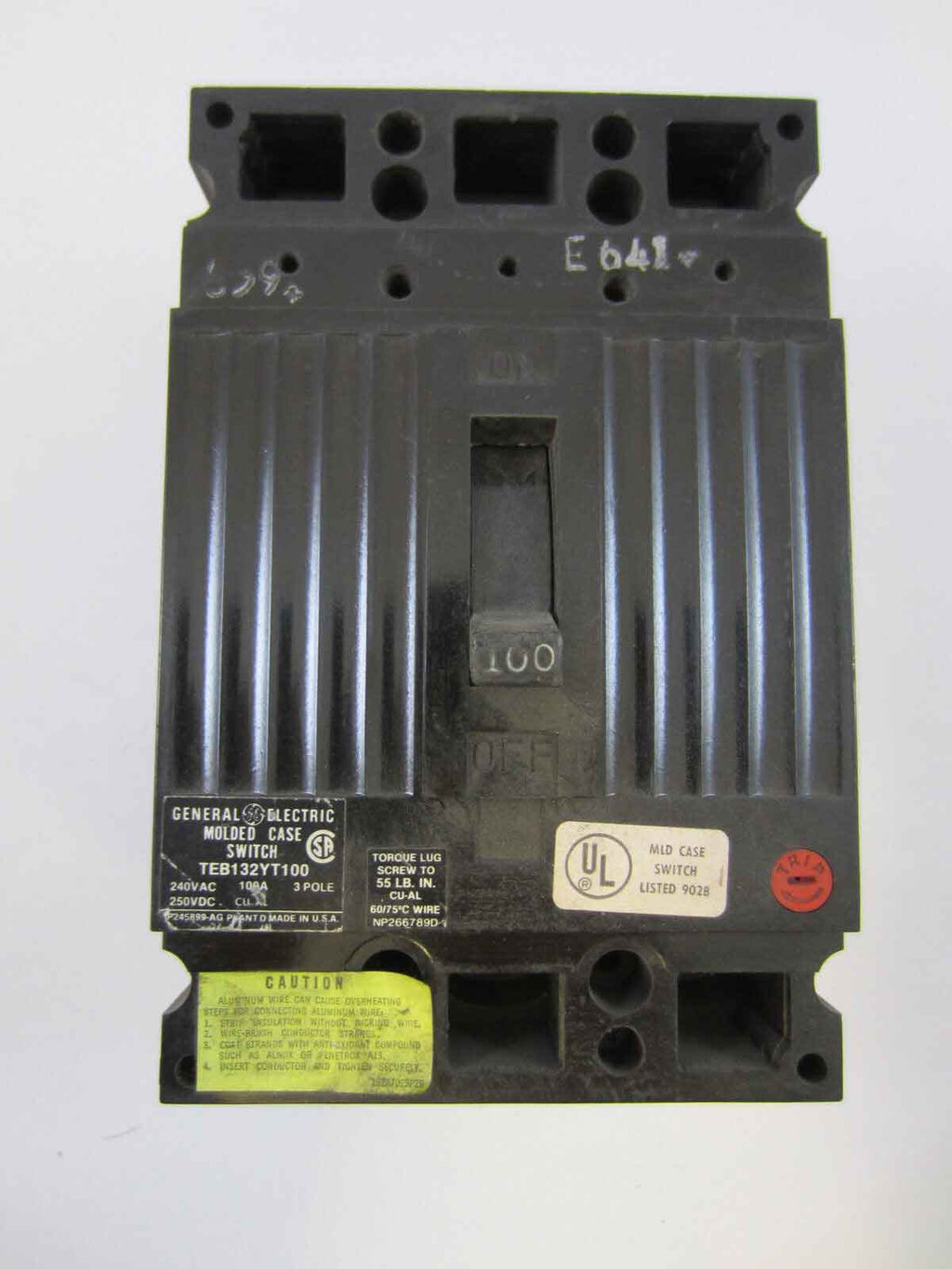

TEB132YT100 is a General Electric 100A 240V 3 Pole molded case circuit breaker designed for reliable power distribution and protection in commercial and industrial applications. This TEB132YT100 circuit breaker features the E150 frame and is rated for 100 amps, 240 volts AC, and 250 volts DC. It is a feed-thru, non-automatic switch with a dummy trip and includes line and load side lugs. The unit is suitable for use in main or branch circuit protection and meets industry standards for safety and performance.
- Part Number: TEB132YT100
- Manufacturer: General Electric
- Amperage: 100A
- Voltage: 240V AC / 250V DC
- Poles: 3
- Interrupt Rating: 10kAIC @ 240V
- Series/Frame: E150
- Mounting Type: Feed-Thru
- Trip Unit: Non-Automatic, Dummy Trip
- Certifications: NEMA, UL Listed
- Application: Main or Branch Circuit Protection
- Features: Line and Load Side Lugs
Specifications
- Part Number: TEB132YT100
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TEB
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 14kA@240V
- Connection : Feed-Thru
- Functions : NA - No Overcurrent Protection
- Protection : Non-Automatic
Product Data
- UPC : 78316419097
- GTIN : 40783164190975
- Weight : 1
