Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEB132100

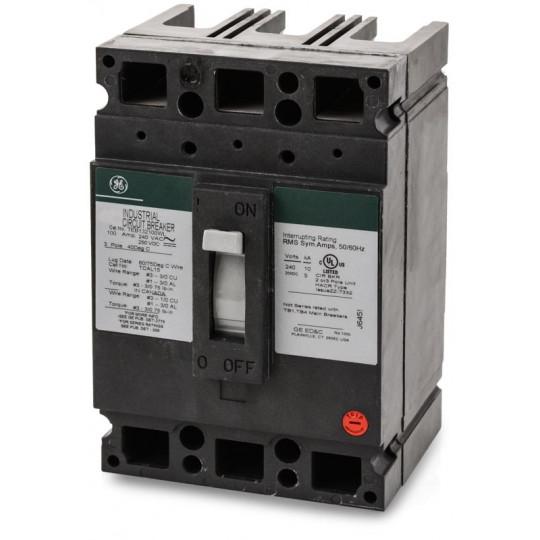

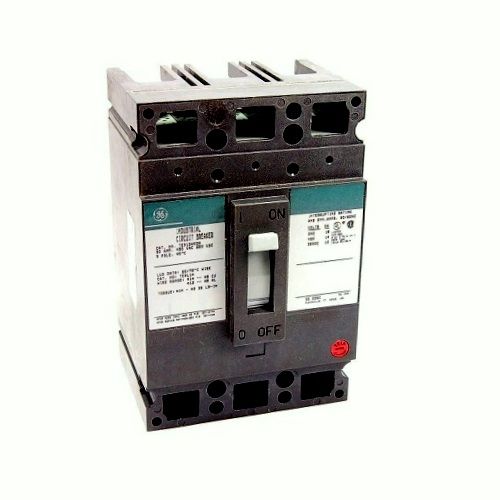

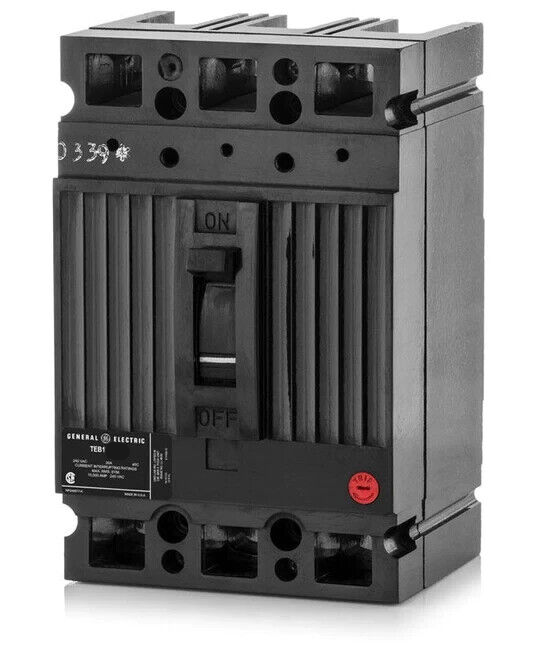

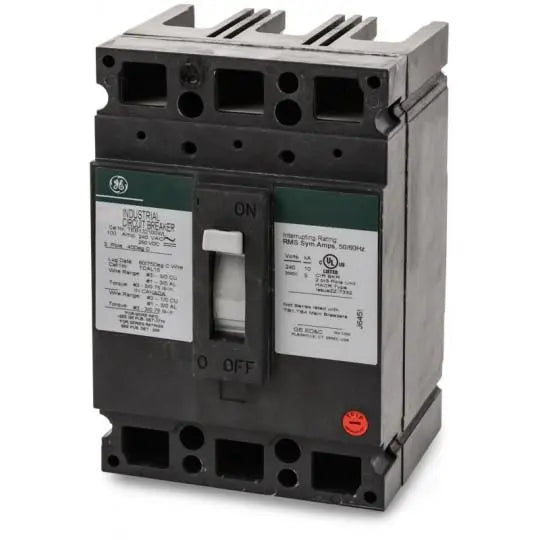

TEB132100 is a General Electric 3 Pole thermal magnetic molded case circuit breaker rated for 100 Amps and 240 Volts with bolt-on mounting.This circuit breaker features a 10kA interrupting rating at 240V, long-time and instantaneous trip functions (LI trip unit), and line and load side lug terminals. It is part of the TEB series with an E150 frame type, suitable for electrical distribution and control applications. The breaker is UL and CSA certified and rated for operation at 40°C.
- Manufacturer: General Electric
- Part Number: TEB132100
- Amperage: 100 Amps
- Voltage: 240 Volts
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 10kAIC at 240V
- Frame Type: TEB (E150)
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous (LI) Trip
- Terminal Connection: Line and Load Side Lug
- Certifications: UL, CSA
- Temperature Rating: 40 °C
Specifications
- Part Number: TEB132100
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TEB
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164069020
- GTIN : 00783164069020
- Weight : 3 lb
- Certification : UL Listed and CSA Certified
- Wire Size : 6 to 2/0 AWG (Copper) and 4 to 2/0 AWG (Aluminum)
