Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Part And Accessory
Description
TCFH60N

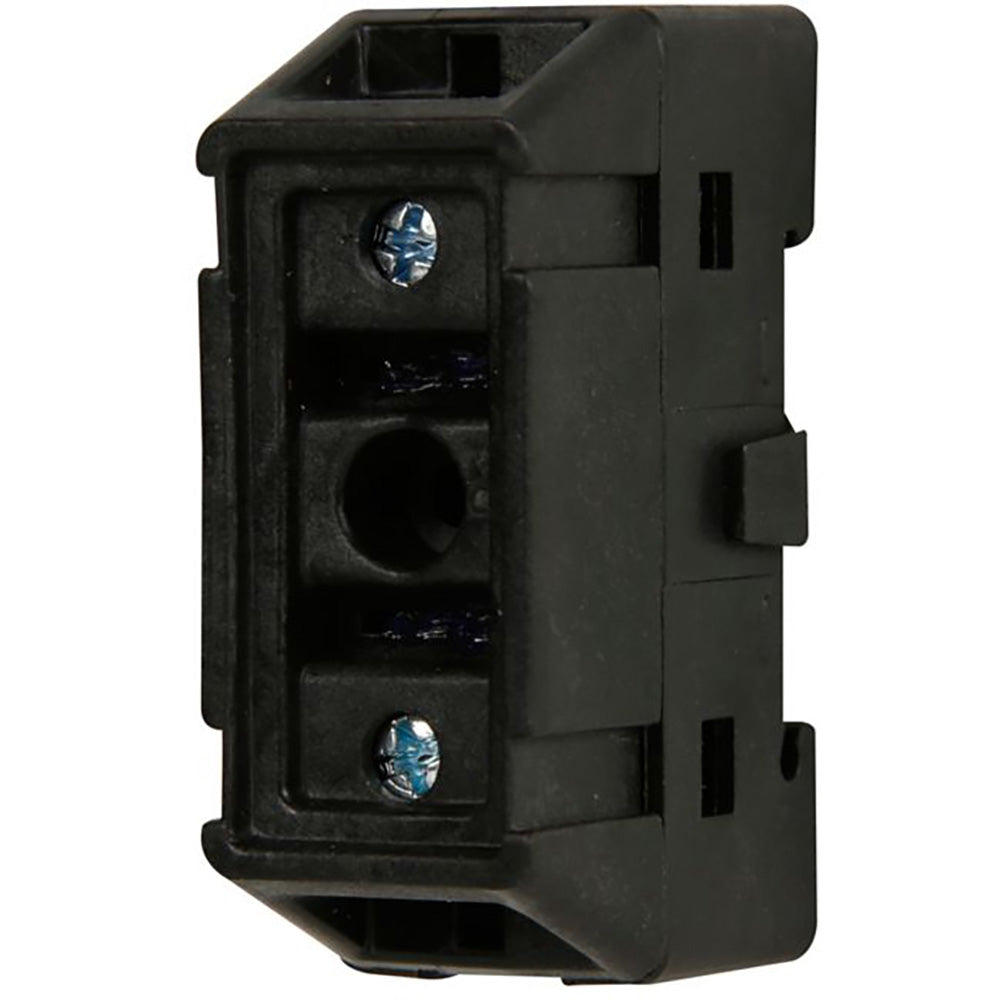

TCFH60N is a 60 amp, 600 volt, 1-pole finger-safe fuse holder from Eaton's Bussmann series designed for Cube Fuse applications.TCFH60N fuse holder supports UL Class CF CUBEFuse types with a modular design that allows dovetailing multiple holders together. It features finger-safe construction for enhanced operator safety and is rated for 600 VAC/VDC operation. The holder is suitable for DIN rail mounting and accepts wire lead termination with conductor ratings for 75°C copper conductors. It is compatible with Cube Fuse CF, J, and Low-Peak fuses and operates reliably within a temperature range of -40 to 80 degrees Celsius.
- Key Specifications
- Amperage: 60 A
- Voltage Rating: 600 VAC/VDC
- Number of Poles: 1
- Mounting Type: DIN Rail
- Fuse Compatibility: Cube Fuse CF, J, Low-Peak
- Finger-Safe Design
- Conductor Rating: 75°C Cu AWG solid/stranded
- Operating Temperature: -40 to 80 °C
- Interrupt Rating: UL Class CF (typically 50 kA)
- Series: TCFH
- Terminal Type: Wire Lead
Specifications
- Part Number: TCFH60N
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
- Section : Fuse Holder
- Type : TCFH
Product Data
- UPC : 051712223492
- GTIN : 00051712223492
- Country of Origin : China
- Dimensions : 2.6 in x 1.6 in x 1.3 in (Length/Depth x Height x Width)
- Weight : 1.54
- Certification : CSA Certified, UL Listed
