Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

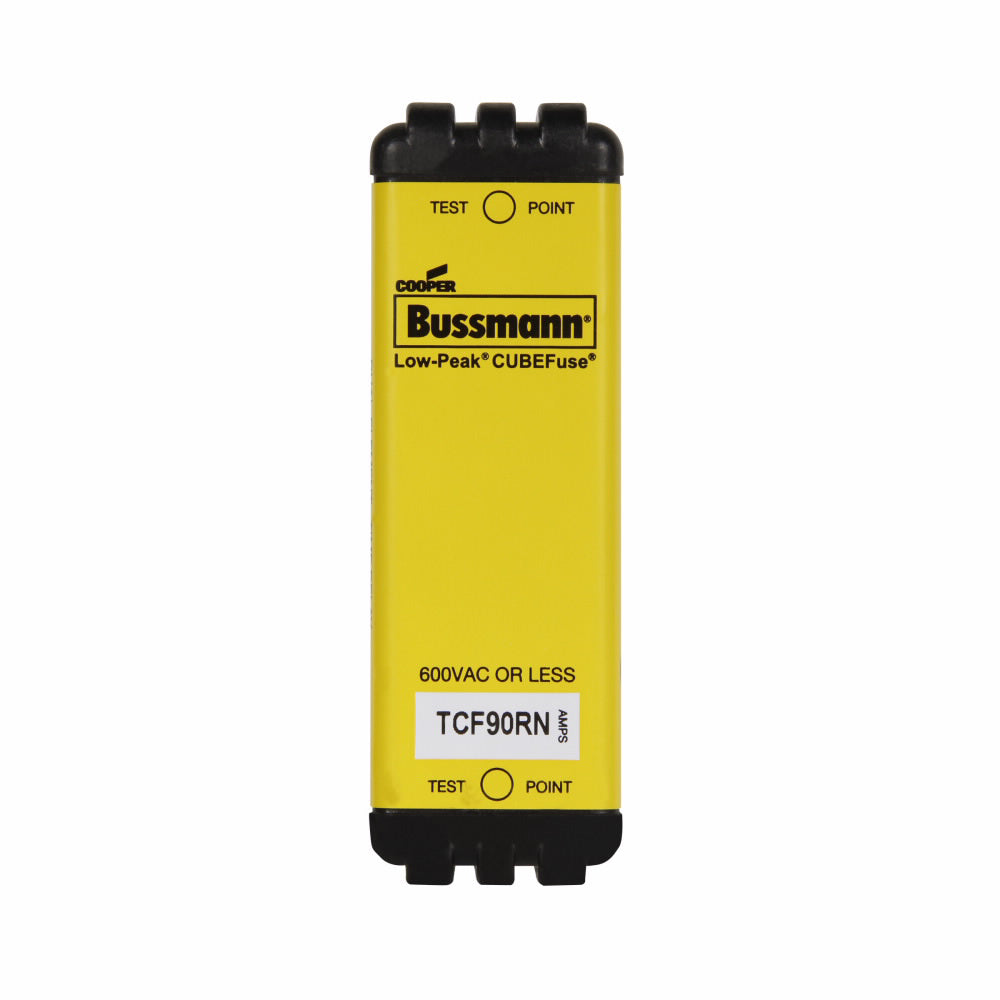

TCF90RN
TCF90RN is a 90 amp, 600 VAC/300 VDC time delay fuse from Eaton Bussmann's Class CF CUBEFuse series designed for branch circuit protection.This non-indicating cartridge fuse features a dual-element, time-delay design with a 10-second response at 500% overload, blade plug-in terminals, and chassis/DIN rail mounting. It offers a high interrupt rating of 100kA at 480 VAC and 300kA RMS symmetrical at 600 VAC, ensuring reliable protection for motor and relay circuits. The fuse body is made of glass-filled polyethersulfone for durability and is UL Listed, CSA Certified, CE Marked, and RoHS Compliant.
- Key Specifications
- Amperage: 90 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: CF
- Interrupt Rating: 100kA @ 480 VAC, 300kA RMS Symmetrical @ 600 VAC
- Response Time: 10 seconds at 500% rated current
- Body Type: Cartridge
- Terminal Type: Blade, Plug-In, Radial Blade Plug-In
- Mounting Type: Chassis/DIN Rail
- Series: TCF
- Non-Indicating
- Material: Glass Filled Polyethersulfone
- Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
- Part Number: TCF90RN
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : CUBEFuse
- Type : TCF_RN
- Voltage : 600
- Amperage : 90
- AIC rating : 300kA@600V
- Class Rating : CF
- Barrels : 1
- Velocity : TD - Time Delayed
- UPC : 051712236188
- GTIN : 00051712236188
- Country of Origin : United States
- Dimensions : 3.01 in x 2.125 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.284
