TCF80 - Eaton Bussmann 80A 600V AC Class CF Time-Delay Cube Fuse with Indicator

TCF80

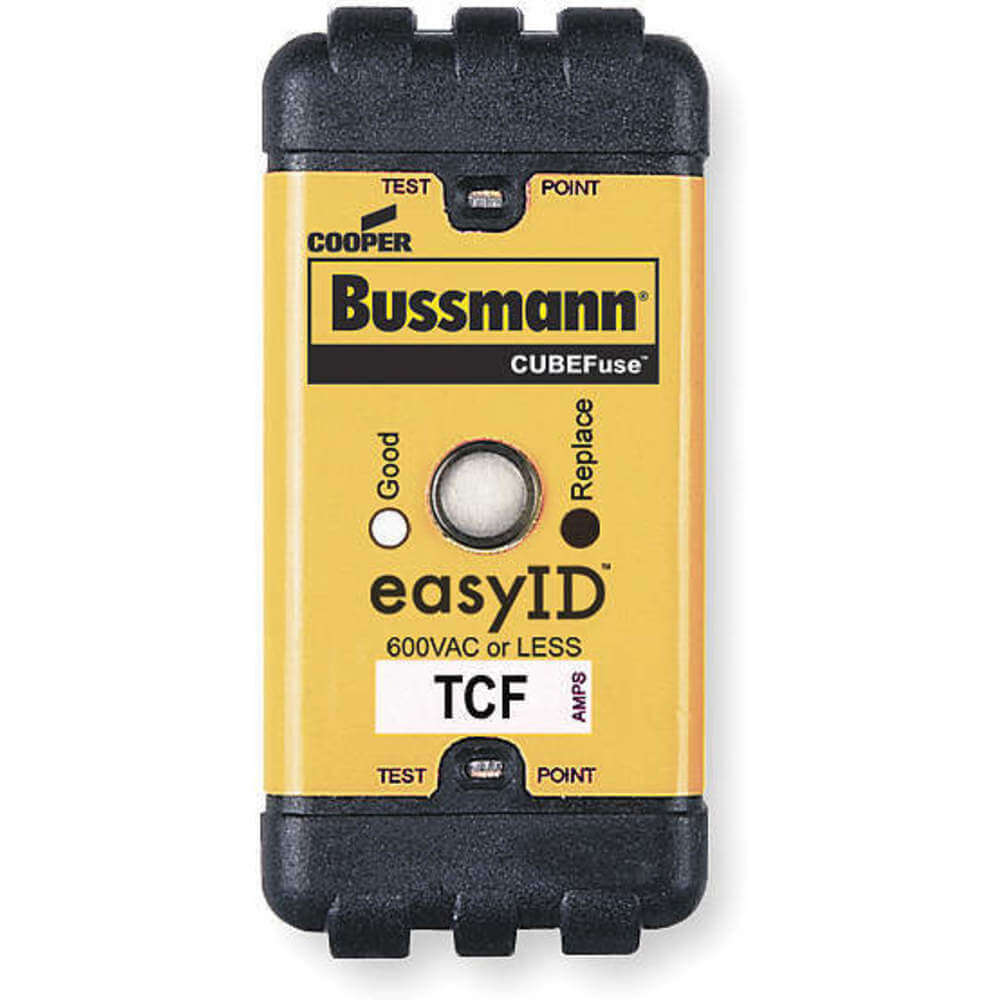

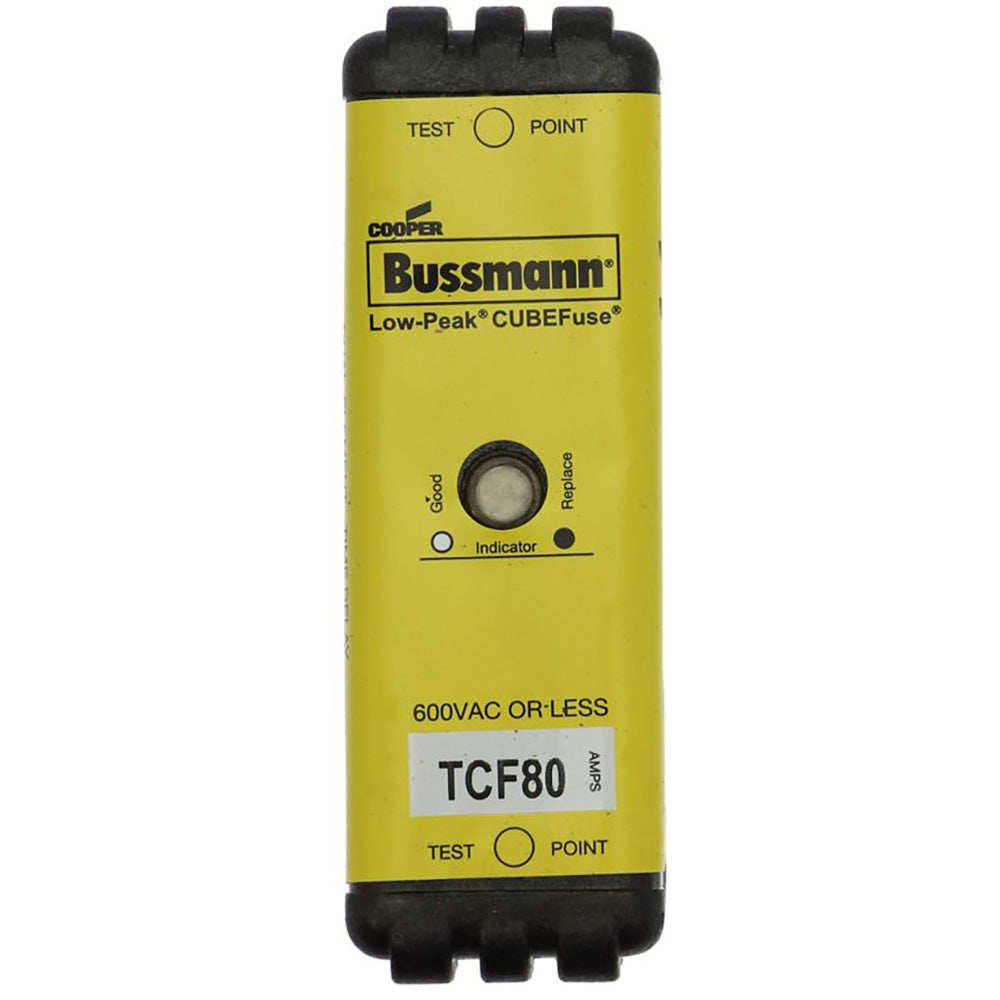

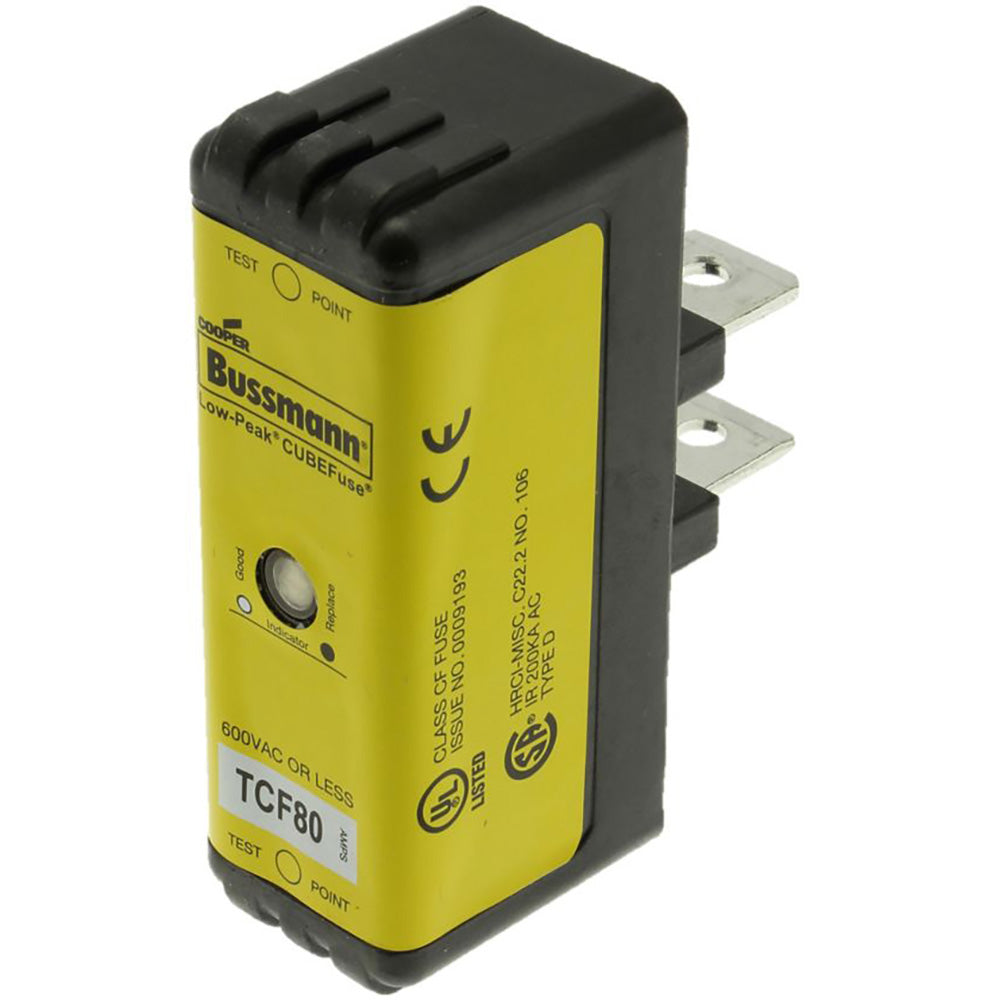

TCF80 is an Eaton Bussmann Class CF time-delay cube fuse rated for 80 amperes and 600 volts AC, featuring a dual-element design with an indicator.

This fuse provides current limiting protection with a 10-second delay at 500% overload, suitable for branch circuit and motor applications. It has an interrupt rating of 100 kA at 300 Vdc and 300 kA at 600 Vac, housed in a glass-filled PES case with finger-safe construction. The fuse mounts on a 35 mm DIN rail chassis and includes blade end connections for easy installation. Certified UL Listed, CSA Certified, CE Marked, and RoHS compliant.

Key Specifications
• Amperage Rating: 80 A
• Voltage Rating: 600 Vac, 300 Vdc
• Interrupting Rating: 100 kA at 300 Vdc, 300 kA at 600 Vac
• Fuse Type: Class CF Time-Delay Dual-Element
• Response Time: 10 seconds at 500% overload
• Mounting Method: 35 mm DIN rail chassis
• Connection Type: Blade end
• Fuse Indicator: Included
• Material: Glass-filled PES case
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Special Feature: Finger safe design

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TCF80
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CUBEFuse
• Type : TCF
• Voltage : 600
• Amperage : 80
• AIC rating : 300kA@600V
• Class Rating : CF
• Barrels : 1
• Velocity : TD - Time Delayed

Product Data

• UPC : 051712618168
• GTIN : 00051712618168
• Country of Origin : China
• Dimensions : 3.01 in x 2.125 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.284
• Certification : CE/UL Special Purpose Guide JFHR/CSA Class 1422-02
