Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

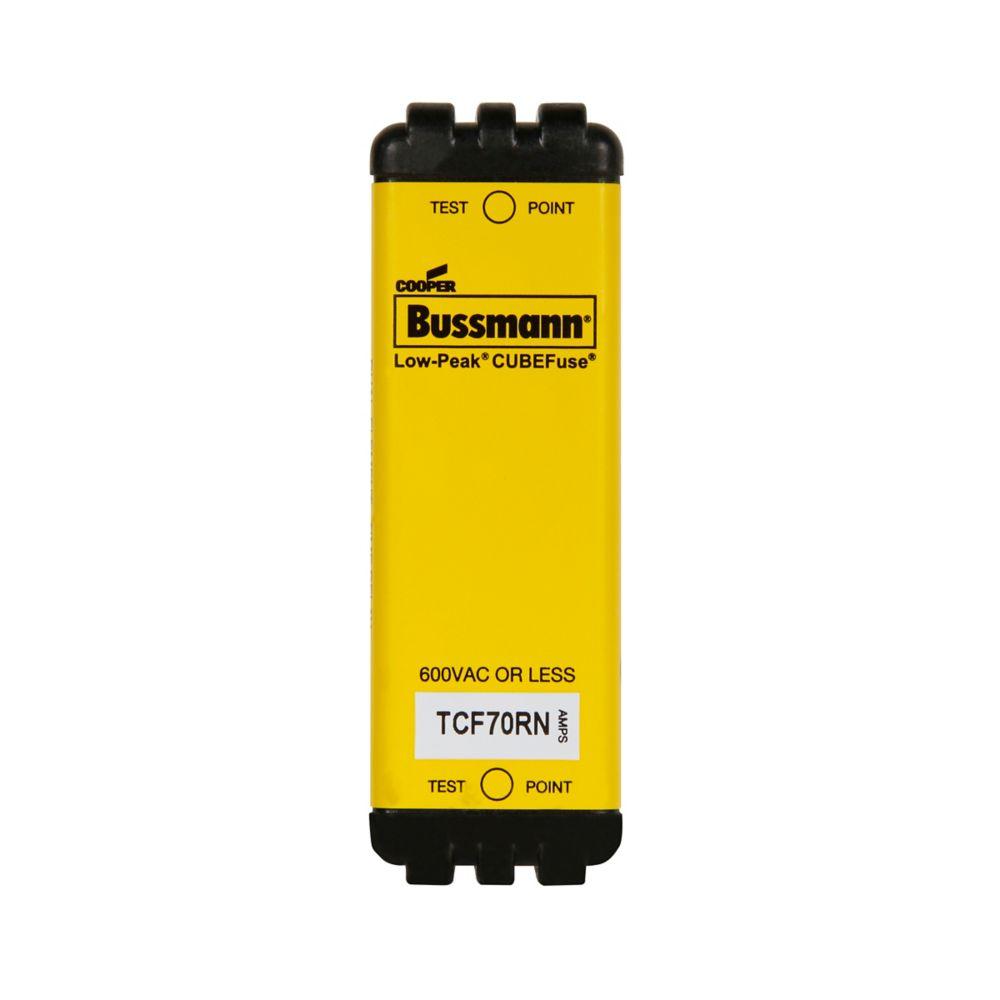

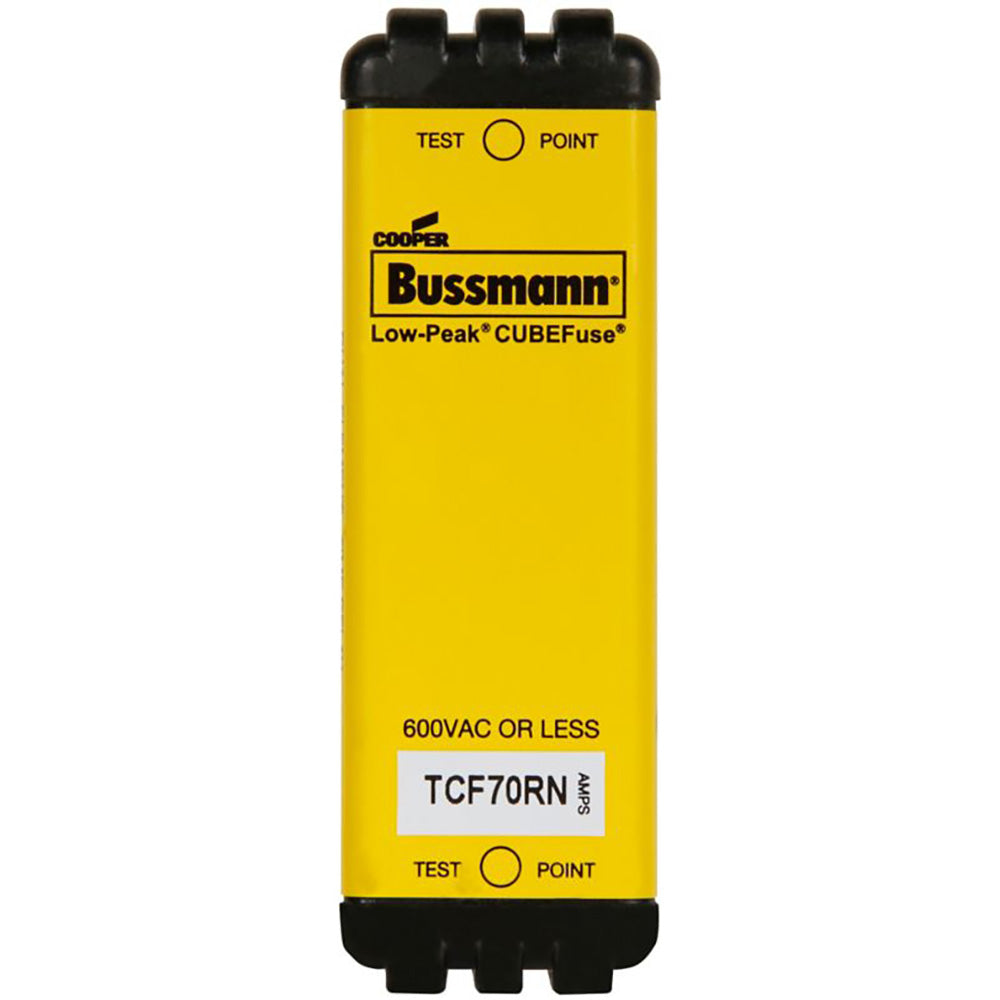

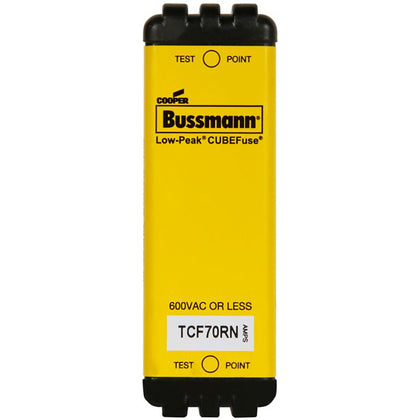

TCF70RN
TCF70RN is a 70 amp, 600 volt Class CF time-delay Low-Peak fuse from Eaton Bussmann designed for branch circuit protection.This fuse features a dual-element, time-delay design with a 300kA interrupt rating at 600 VAC and 100kA at 300 VDC. It has a square blade body type suitable for DIN rail or chassis mounting. The fuse is non-indicating and constructed with glass-filled polyethersulfone for durability. It complies with UL Class CF standards and is ideal for motor circuit protection with NEC code max amp ratings.
- Key Specifications
- Amperage: 70 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
- Class: UL Class CF
- Body Type: Square Blade
- Mounting Type: DIN Rail / Chassis
- Time-Delay, Dual-Element Design
- Non-Indicating
- Material: Glass Filled Polyethersulfone
- Standards: UL Listed
- Part Number: TCF70RN
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : CUBEFuse
- Type : TCF_RN
- Voltage : 600
- Amperage : 70
- AIC rating : 300kA@600V
- Class Rating : CF
- Barrels : 1
- Velocity : TD - Time Delayed
- UPC : 051712236164
- GTIN : 00051712236164
- Country of Origin : United States
- Dimensions : 3.01 in x 2.125 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.284
