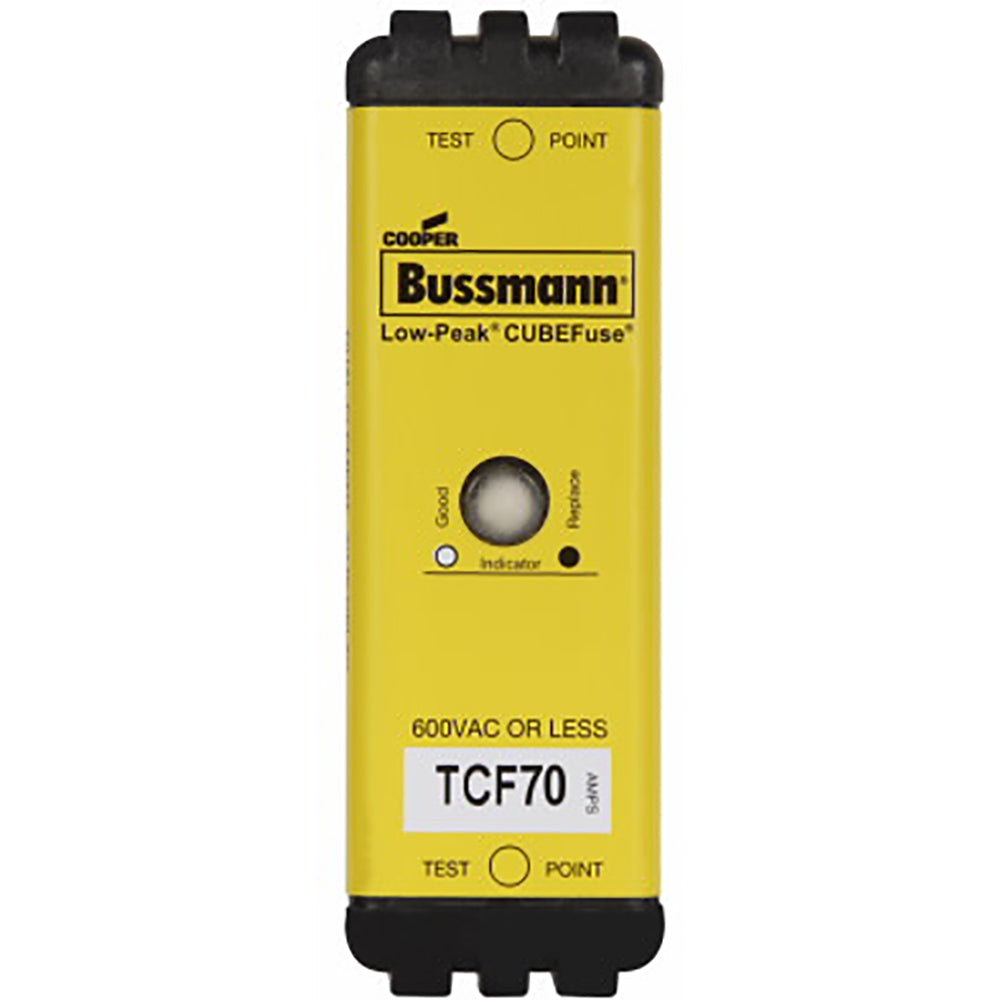

TCF70 - Eaton 70A 600V Class CF Time-Delay Dual-Element Cube Fuse with Indicator

TCF70

TCF70 is an Eaton Bussmann series Class CF time-delay dual-element cube fuse rated for 70 amperes and 600 volts AC, featuring an indicating fuse and blade end connection.This fuse provides current limiting protection with a 300 kA interrupting rating at 600 VAC and 100 kA at 300 VDC. It is designed for chassis or 35 mm DIN rail mounting and includes a finger-safe design. The fuse is UL listed, CSA certified, CE marked, and RoHS compliant, suitable for branch circuit protection with a response time of 10 seconds at 500% overload.

Key Specifications
• Amperage: 70 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Fuse Type: Class CF, Time-delay, Dual-element
• Connection: Blade end
• Mounting: Chassis or 35 mm DIN rail
• Fuse Indicator: Yes
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Response Time: 10 seconds at 500% overload
• Color: Black
• Special Features: Finger safe

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TCF70
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 70
• AIC rating : 300kA@600V
• Class Rating : H
• Barrels : 1
• Velocity : TD - Time Delayed

Product Data

• UPC : 05171261815
• GTIN : 00051712618151
• Country of Origin : China
• Dimensions : 3.01 in x 2.125 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.284
• Certification : CE/UL Special Purpose Guide JFHR/CSA Class 1422-02
