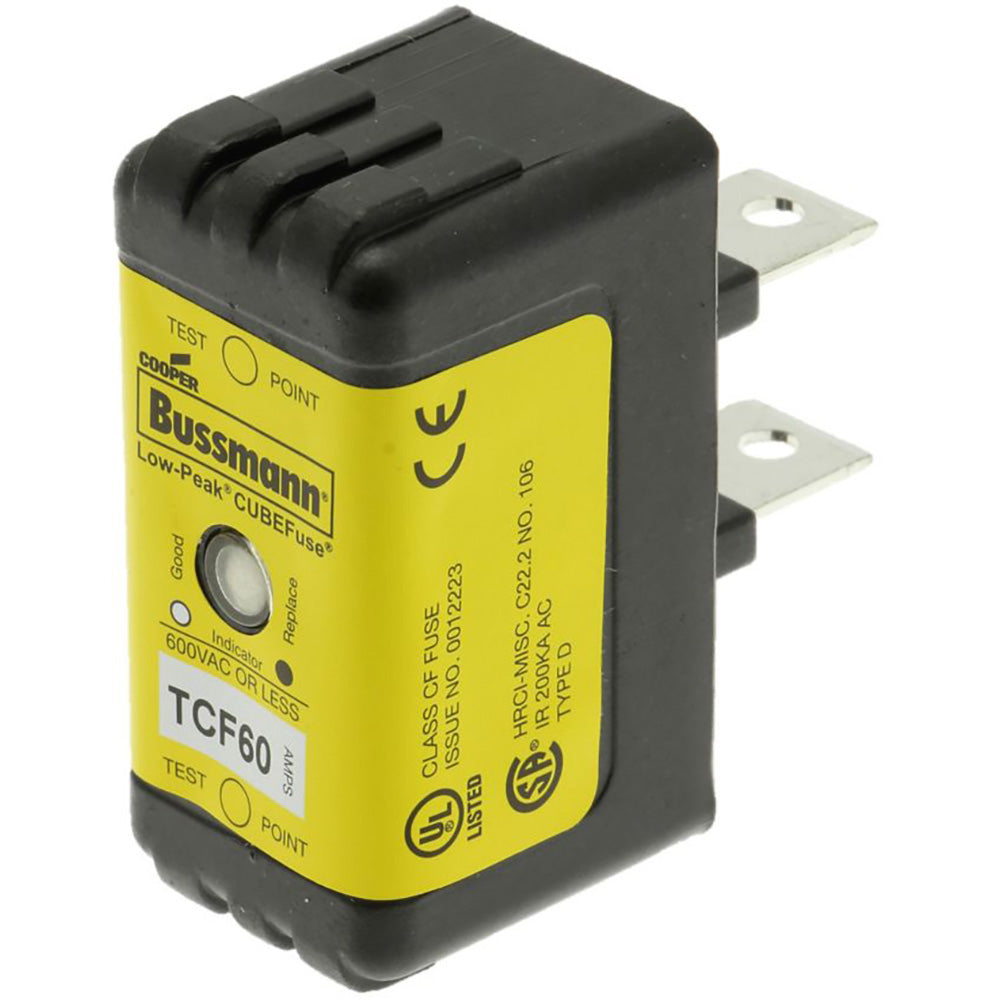

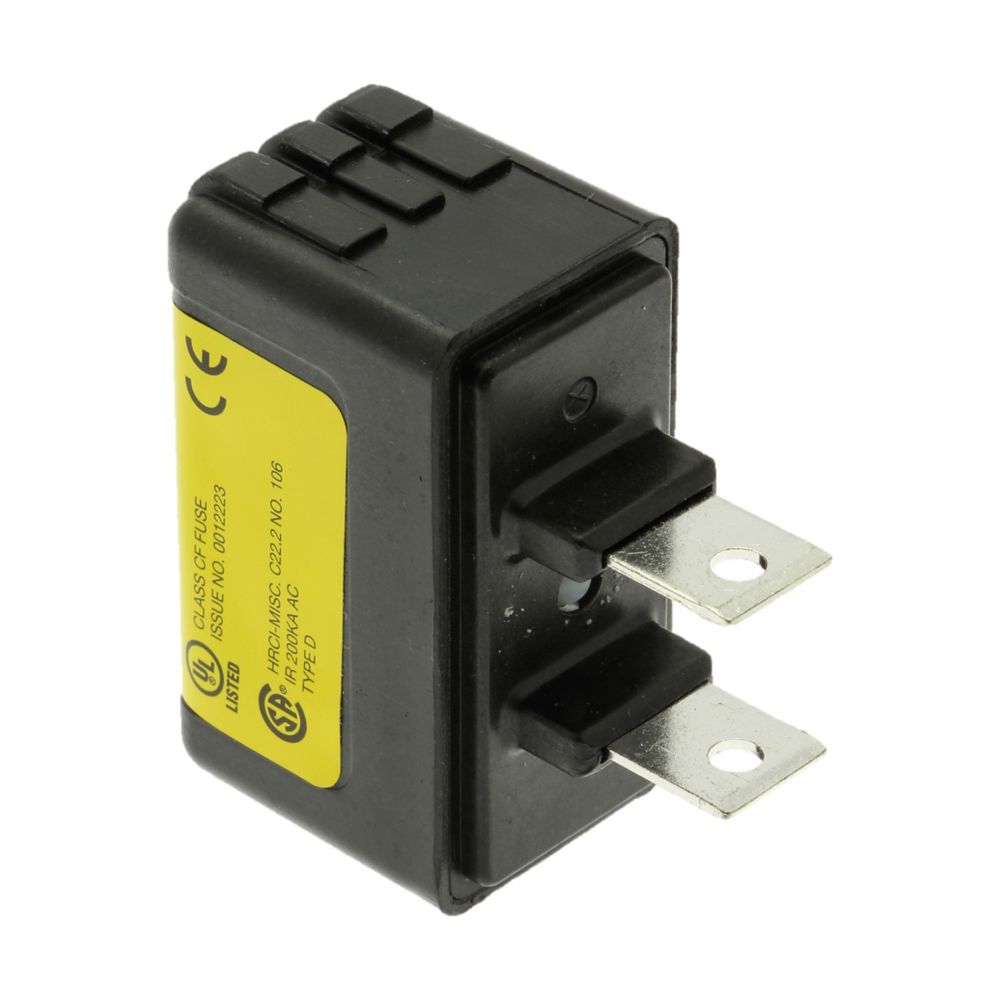

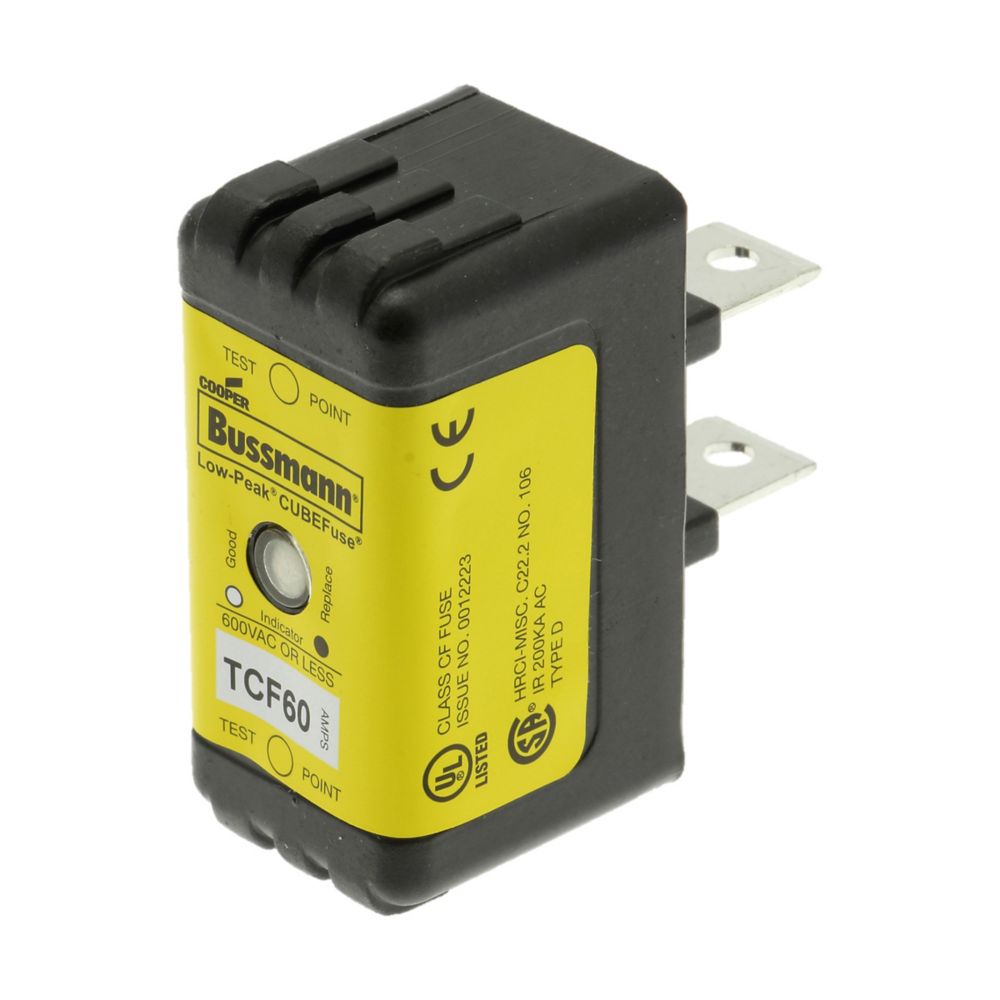

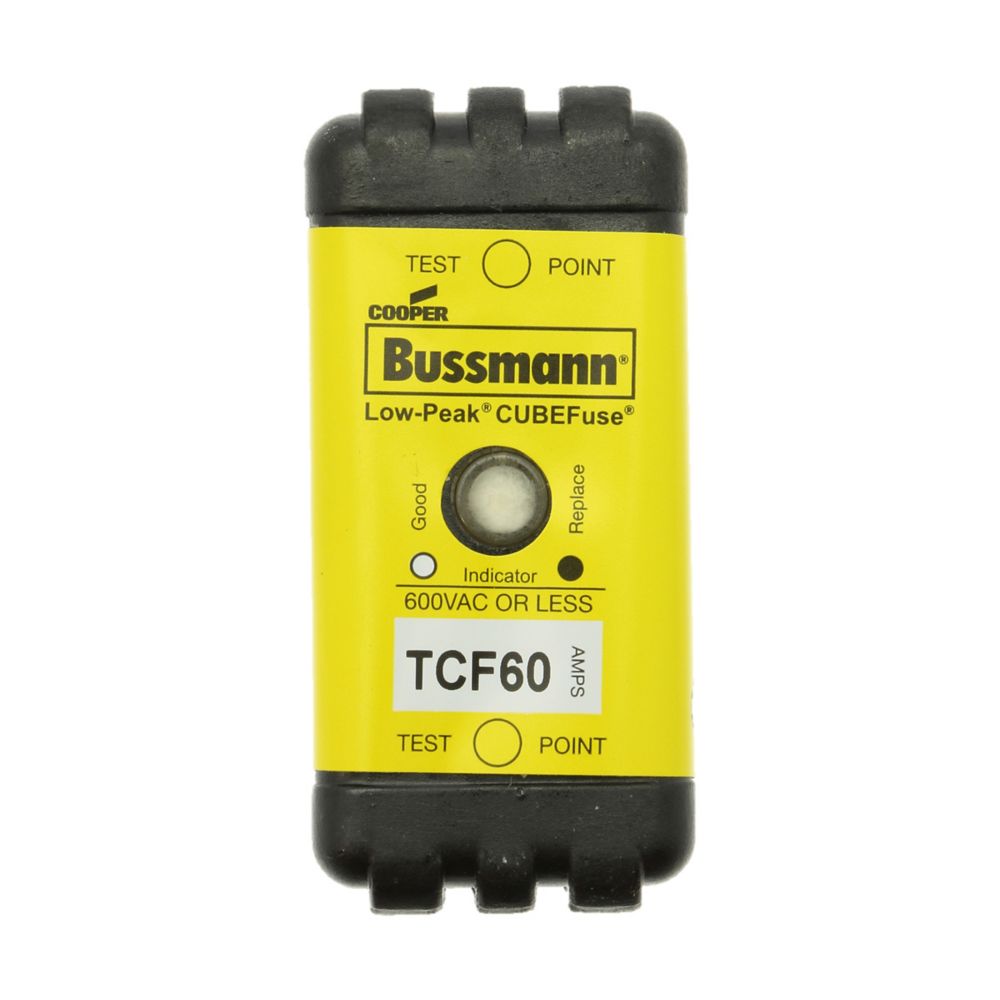

TCF60 - Eaton Bussmann 60A 600V Class CF Time Delay Fuse with Indicator

TCF60

TCF60 is a 60 amp, 600 volt Class CF time delay fuse from Eaton Bussmann series designed for reliable circuit protection.This Eaton Bussmann TCF60 fuse features a dual-element, time-delay design with a 10 second trip at 500% overload, suitable for motor and branch circuit protection. It has a black body with blade ends and an indicator for fuse status. Rated for 300 kA interrupting capacity at 600 VAC and 100 kA at 300 VDC, it mounts on a chassis or 35 mm DIN rail. The fuse meets UL Class CF standards and is constructed with glass-filled PES for durability.

Key Specifications
• Amperage: 60 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Fuse Type: Class CF, Time Delay
• Trip Time: 10 seconds at 500% overload
• Body Color: Black
• Mounting Type: Chassis or 35 mm DIN rail
• Indicator: Fuse blown indicator included
• Construction: Glass-filled PES
• Standards: UL Class CF
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: TCF60
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CUBEFuse
• Type : TCF
• Voltage : 600
• Amperage : 60
• AIC rating : 300kA@600V
• Class Rating : CF
• Barrels : 1
• Velocity : TD - Time Delayed



Product Data

• UPC : 051712615082
• GTIN : 00051712615082
• Country of Origin : China
• Dimensions : 2.13 in x 1.9 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.17
• Certification : CE/UL Special Purpose Guide JFHR/CSA Class 1422-02
