TCF6 - Eaton Bussmann 6A 600V Class CF Time-Delay Indicating Cube Fuse

TCF6

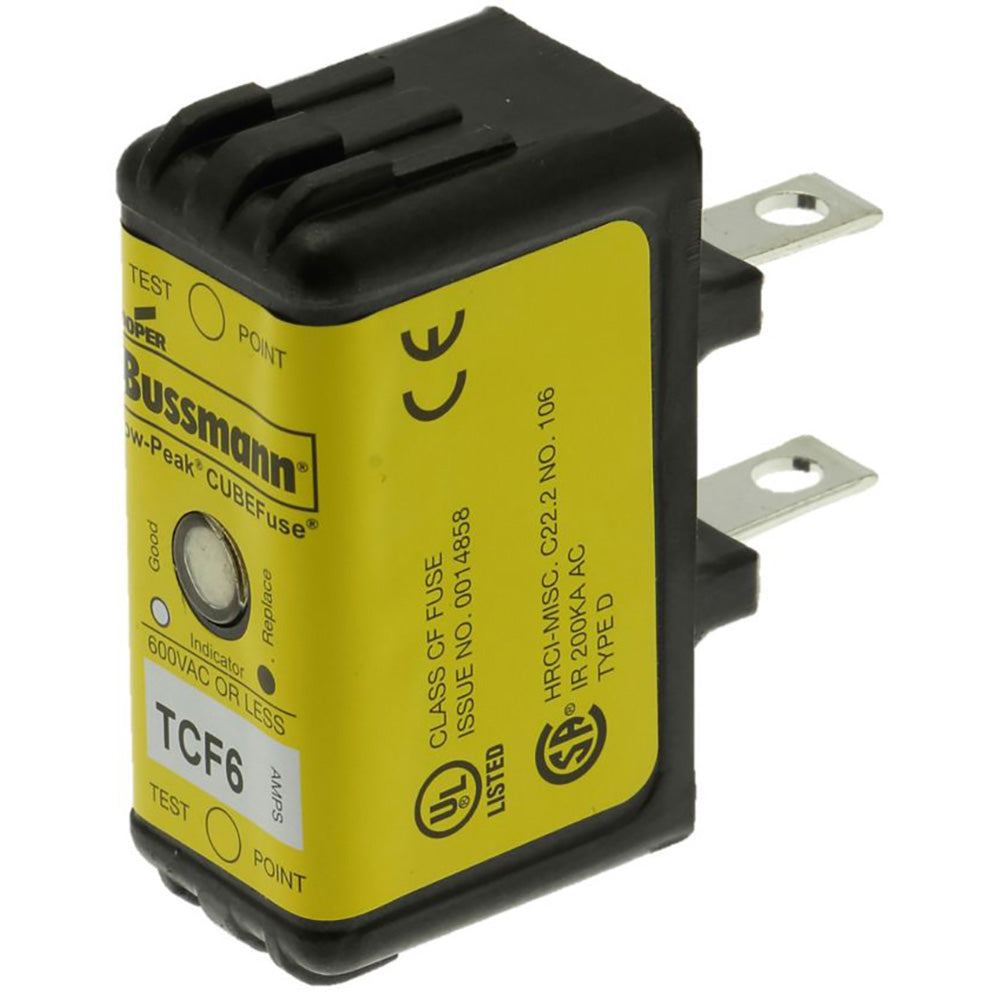

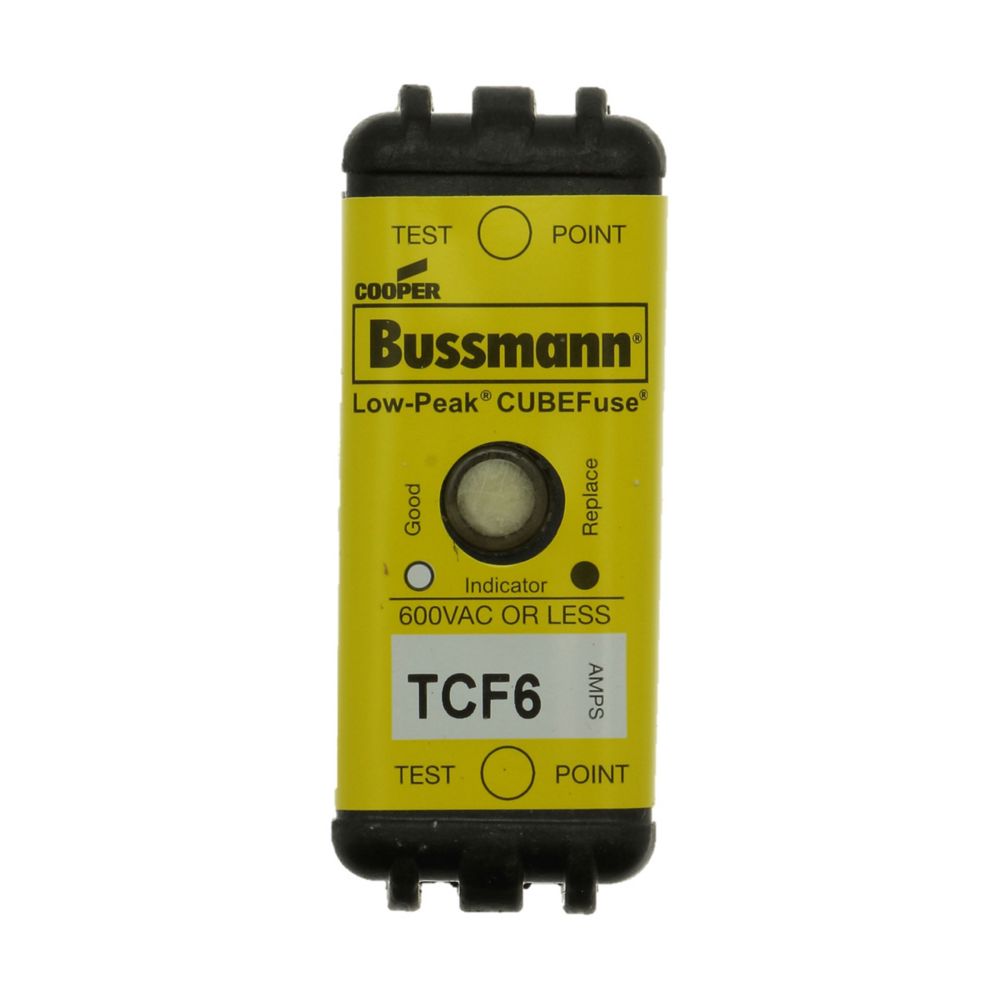

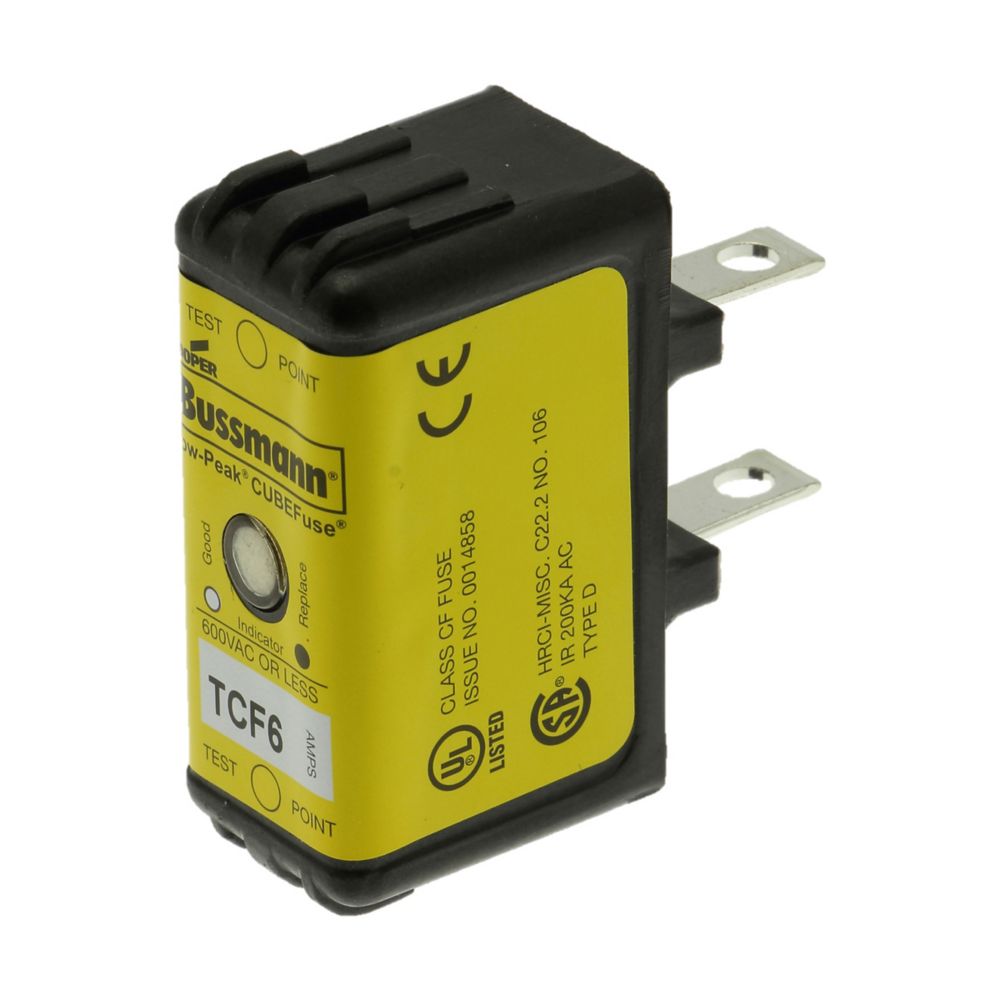

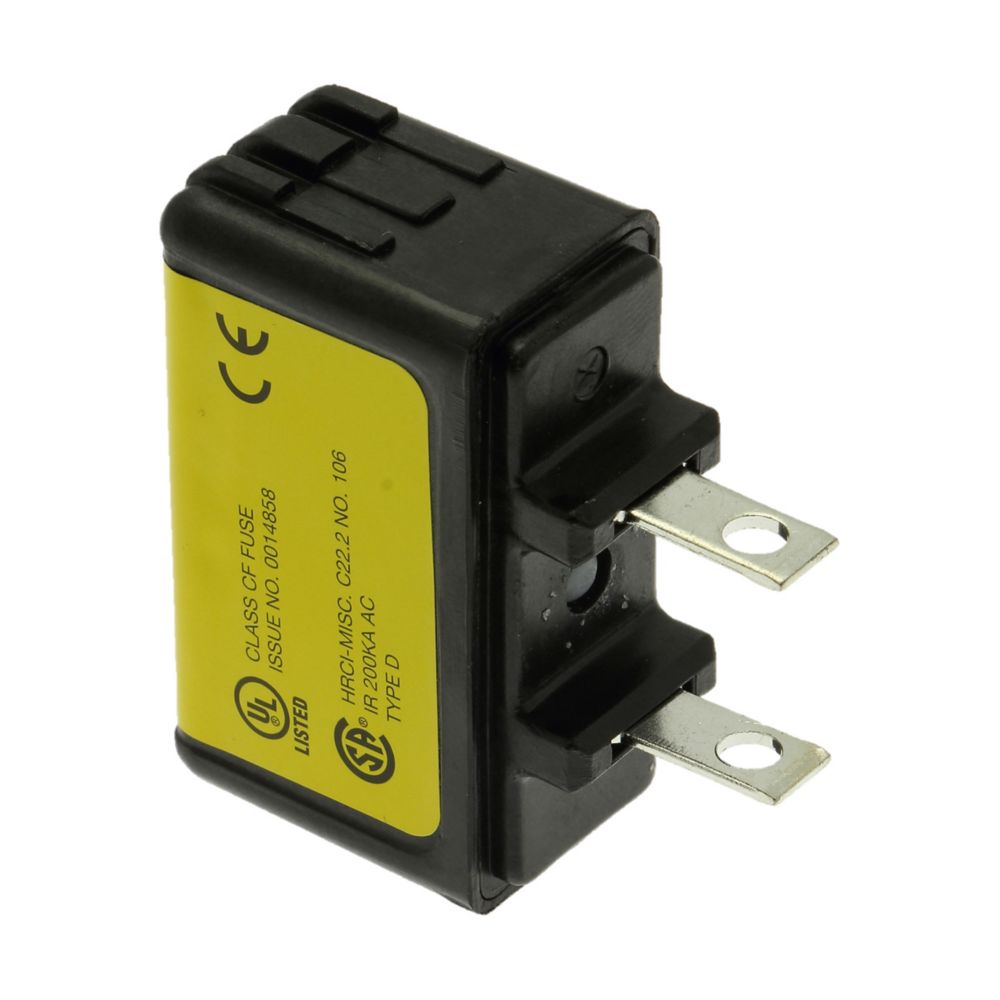

TCF6 is a 6 amp, 600 volt Eaton Bussmann Class CF time-delay indicating cube fuse designed for industrial power protection.This dual-element, current-limiting fuse features a glass-filled PES case with electroless tin-plated copper alloy terminals. It provides a minimum 10-second time delay at 500% of rated current, enabling it to withstand temporary overloads and transient surges. The fuse meets UL Class CF and Class J electrical performance standards and offers a high interrupting rating of up to 300kA at 600V AC. Its finger-safe design and easy ID open fuse technology facilitate faster troubleshooting and reduce downtime. The fuse is suitable for motor starter protection with type 2 No Damage protection when properly sized.

Key Specifications
• Amperage: 6 Amps
• Voltage Rating: 600 Volts AC
• Fuse Type: Class CF Cube Fuse
• Time Delay: Dual-element, minimum 10 seconds at 500% rating
• Interrupting Rating: 300kA at 600V AC, 100kA at 300V DC
• Mounting Type: Blade end, chassis mount compatible
• Case Material: Glass-filled PES
• Terminals: Electroless tin-plated copper alloy
• Indicating Fuse: Yes, with easy ID open fuse technology
• Certifications: UL Listed, Class CF and Class J performance
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: TCF6
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 6
• AIC rating : 300kA@600V
• Class Rating : H
• Barrels : 1
• Velocity : TD - Time Delayed



Product Data

• UPC : 051712614979
• GTIN : 00051712614979
• Country of Origin : China
• Dimensions : 1.88 in x 1 in x 0.75 in (Length/Depth x Height x Width)
• Weight : 0.044
• Certification : CE/UL Special Purpose Guide JFHR/CSA Class 1422-02
